Neomounts by Newstar TIS 17"-49" 1TFT 1Gelenk schw. Max.15KG
Previous Next

Neomounts by Newstar TIS 17"-49" 1TFT 1Gelenk schw. Max.15KG

NEOMOUNTS BY NEWSTAR

DS70S-950BL1

Jauns

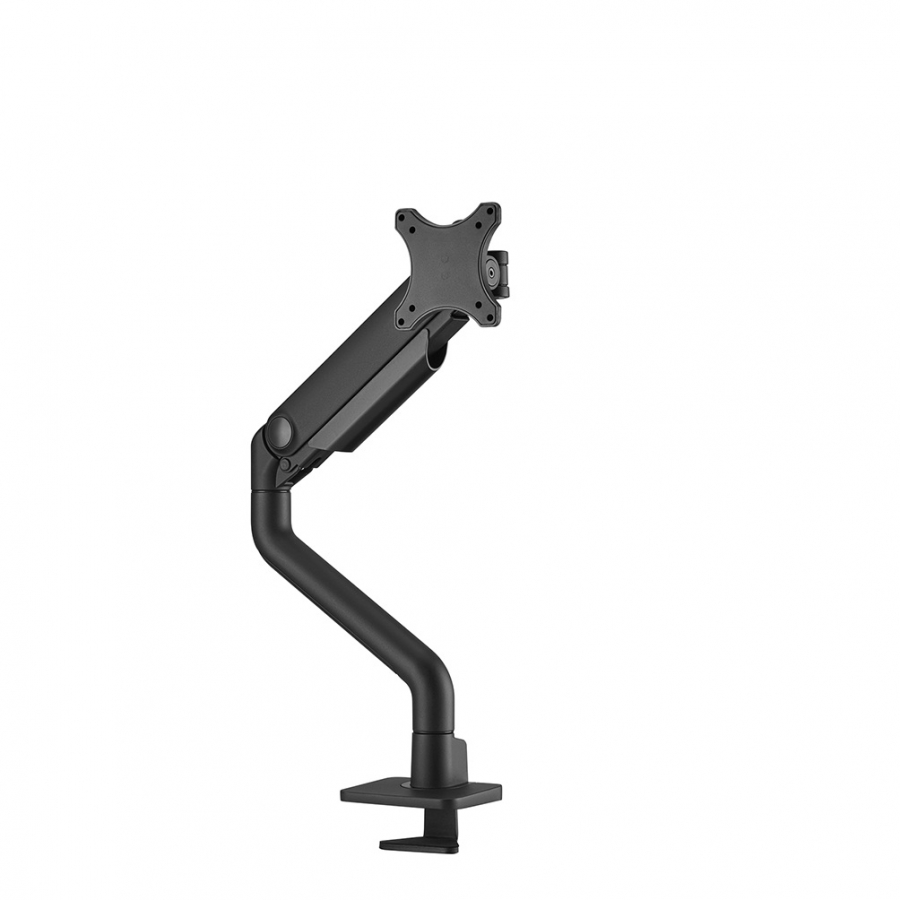

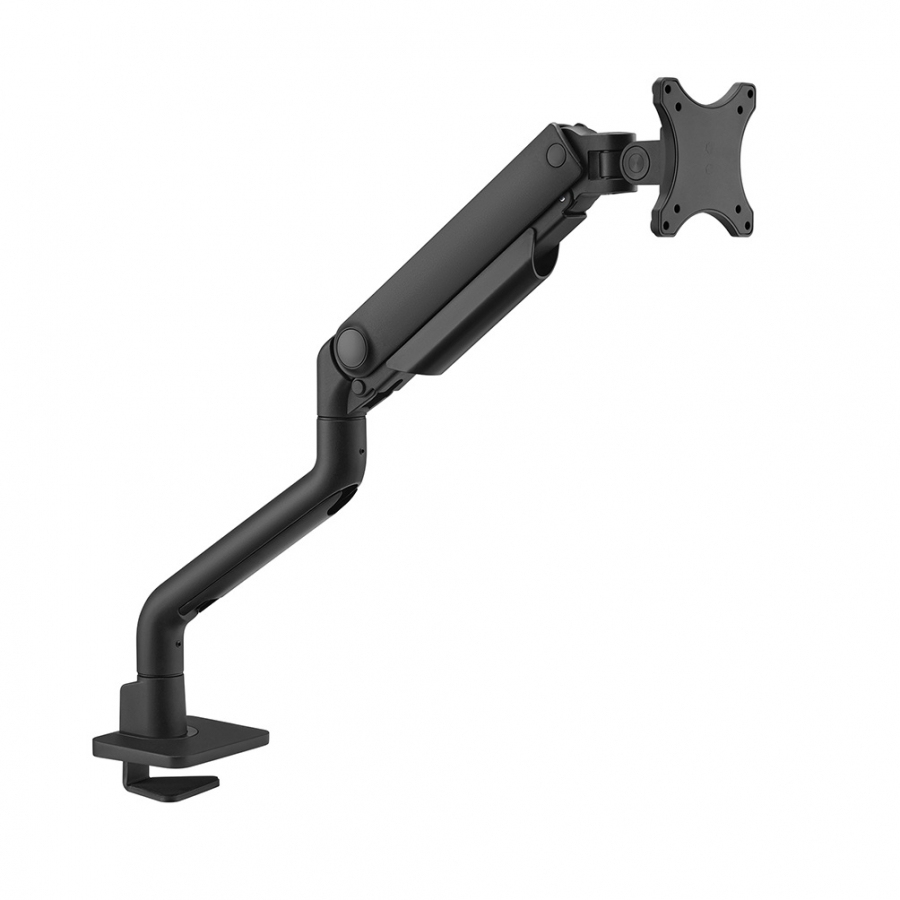

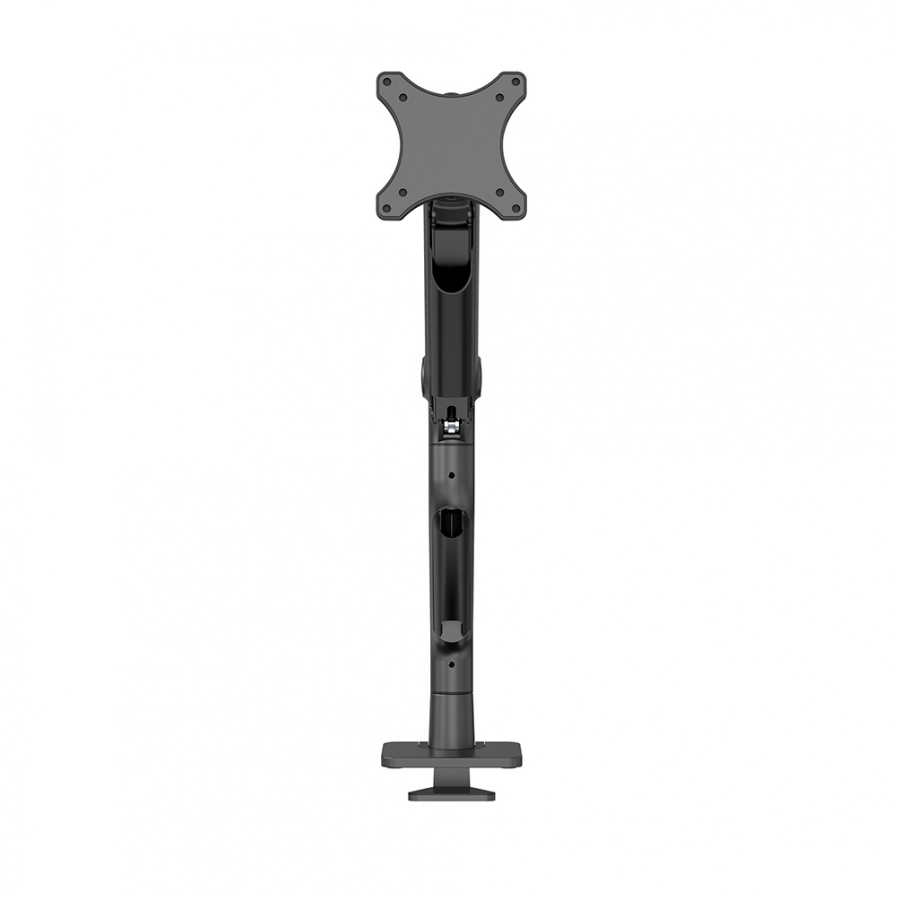

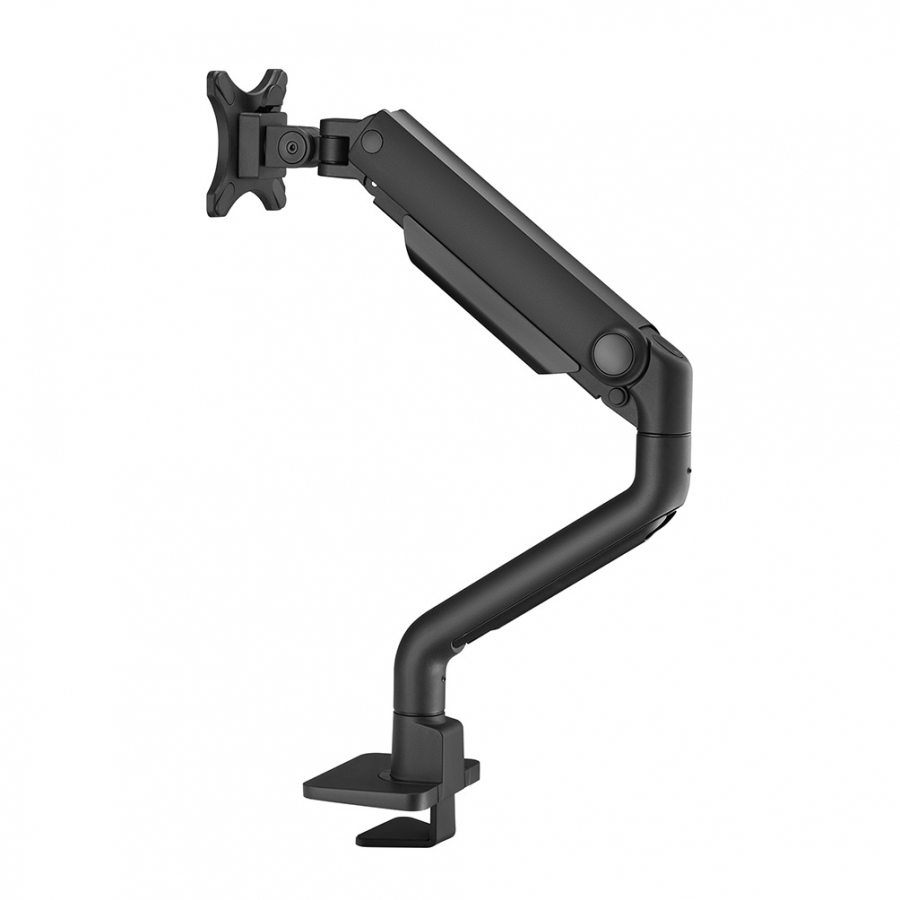

The Neomounts DS70S-950BL1 NEXT One is a full motion desk mount for screens up to 49". The DS70S-950BL1 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head specifically designed to also support curved ultra-wide screens and features a higher maximum weight capacity up to 18 kg (curved 15 kg). The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20-52 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

The DS70S-950BL1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The packaging of the DS70S-950BL1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.

Maximum weight capacity18 kg
Maximum screen size124.5 cm (49")
Mounting typeDesk
Minimum screen size43.2 cm (17")
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Number of displays supported1
MountingClamp/Grommet
Panel mounting interface75 x 75,100 x 100 mm
Clamp mount desk thickness (max)5 cm
Grommet mount desk thickness (max)5.5 cm
Distance to the wall (min)11.9 cm
Distance to the wall (max)65.6 cm
Height adjustmentJā
Height adjustment typeGas spring
Height adjustment range20 - 52 mm
Adjustable depthJā
Depth adjustment range8.8 - 62.5 mm
Tilt angle range-90 - 90°
SwivellingJā
Swivel angle range-90 - 90°
Angle of rotation180°
Number of arms1
Cable managementJā
RotatingJā
Tilt adjustmentJā
Product colourBlack
Housing materialAluminium
Easy to installJā
Warranty period10 year(s)
Width135 mm
Depth656 mm
Height521 mm
Package width333 mm
Package depth122 mm
Package height423 mm
Package typeBox
Master (outer) case width355 mm
Master (outer) case length290 mm
Master (outer) case height490 mm
Products per master (outer) case4 pc(s)
Master (outer) case net weight14.9 kg
Harmonized System (HS) codeHS7326909890
Products per pallet (EU)80 pc(s)
Country of originChina
Package net weight4.3 kg
