Neomounts by Newstar TIS Notebook 11,6"-17,3" 3Gelenke schwa

NEOMOUNTS BY NEWSTAR

DS20-425BL1

Jauns

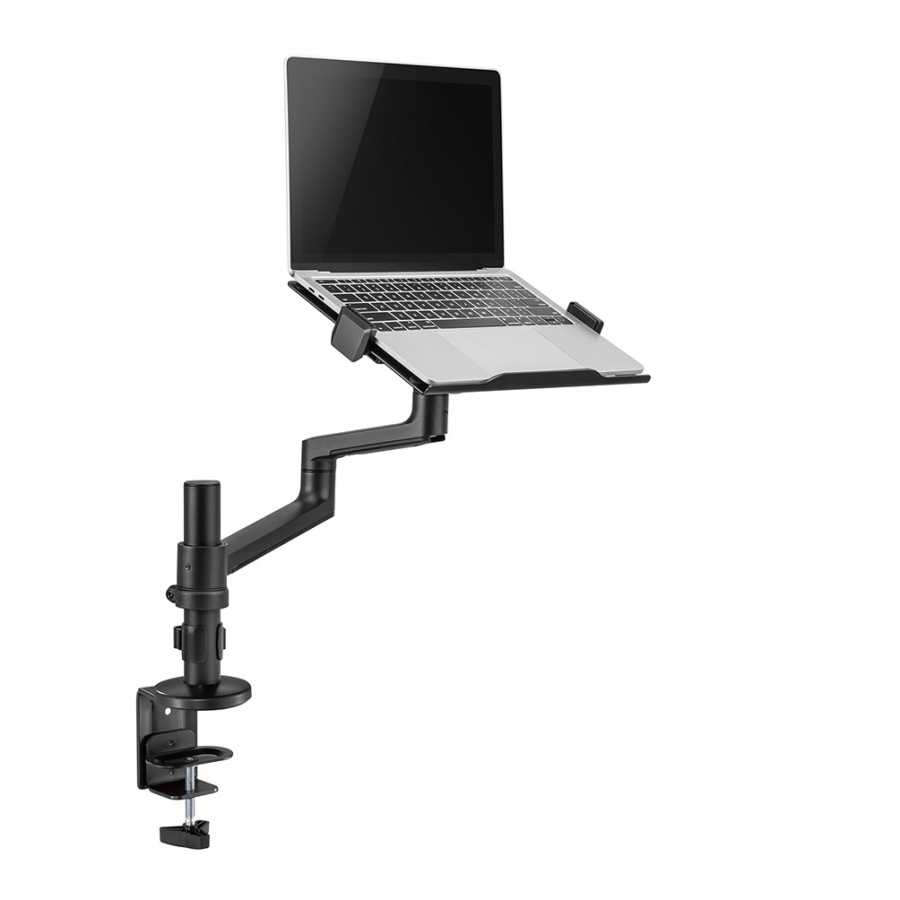

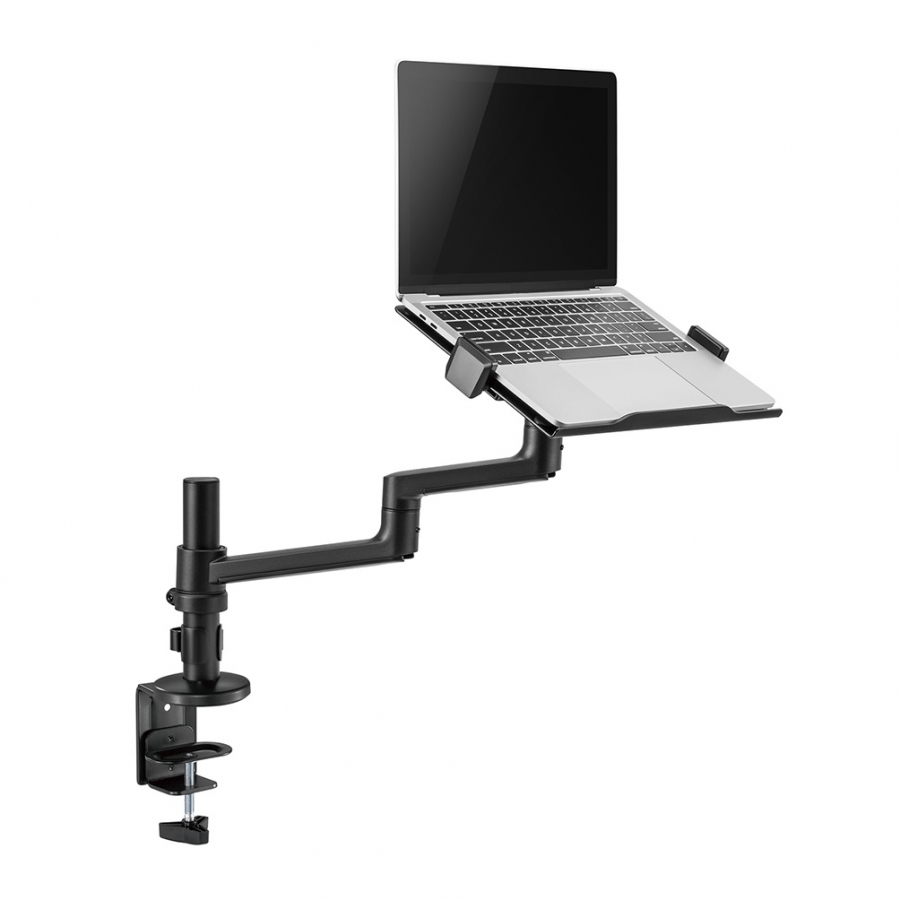

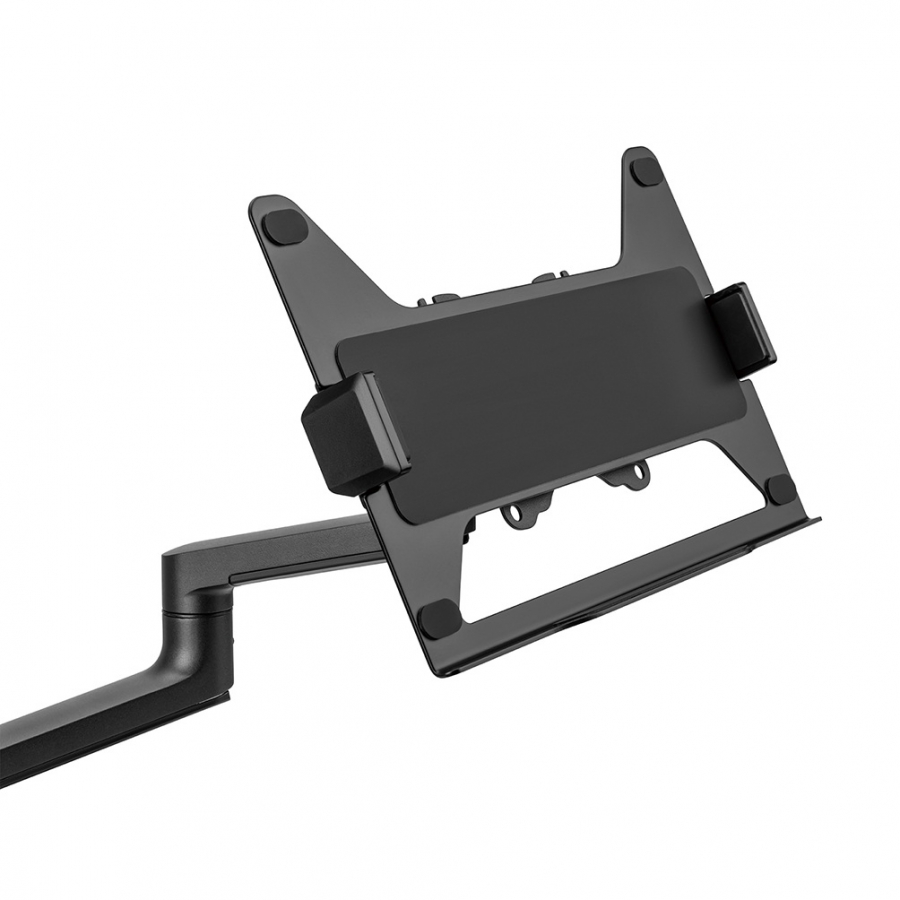

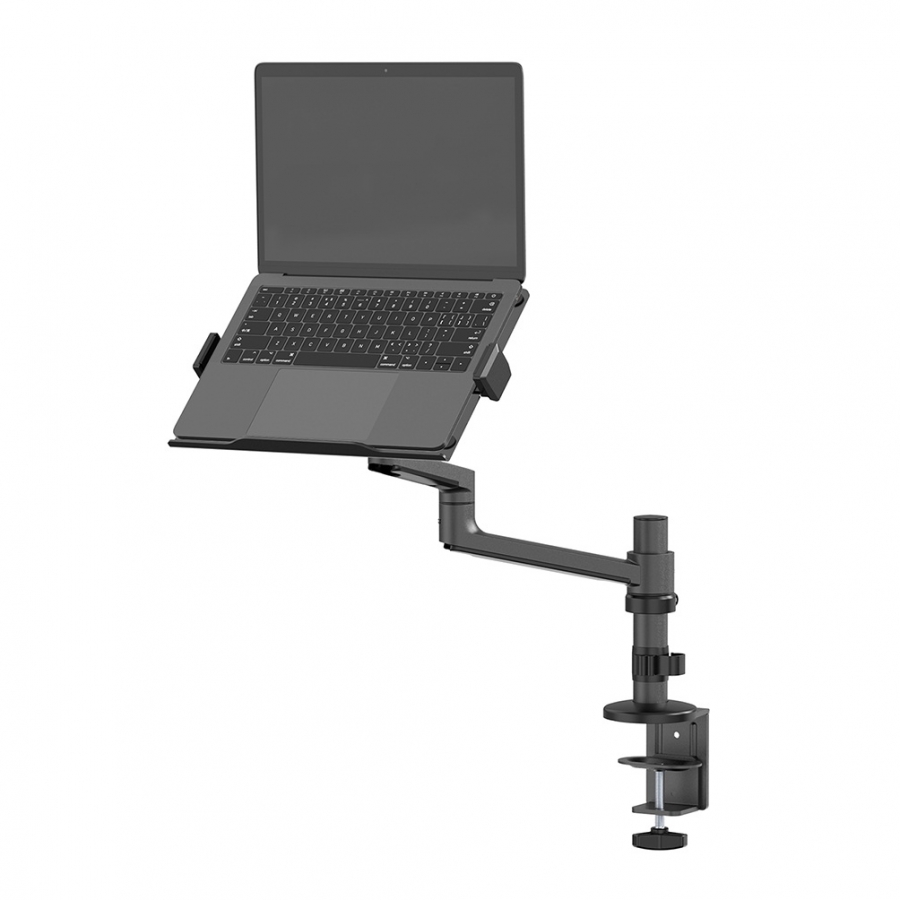

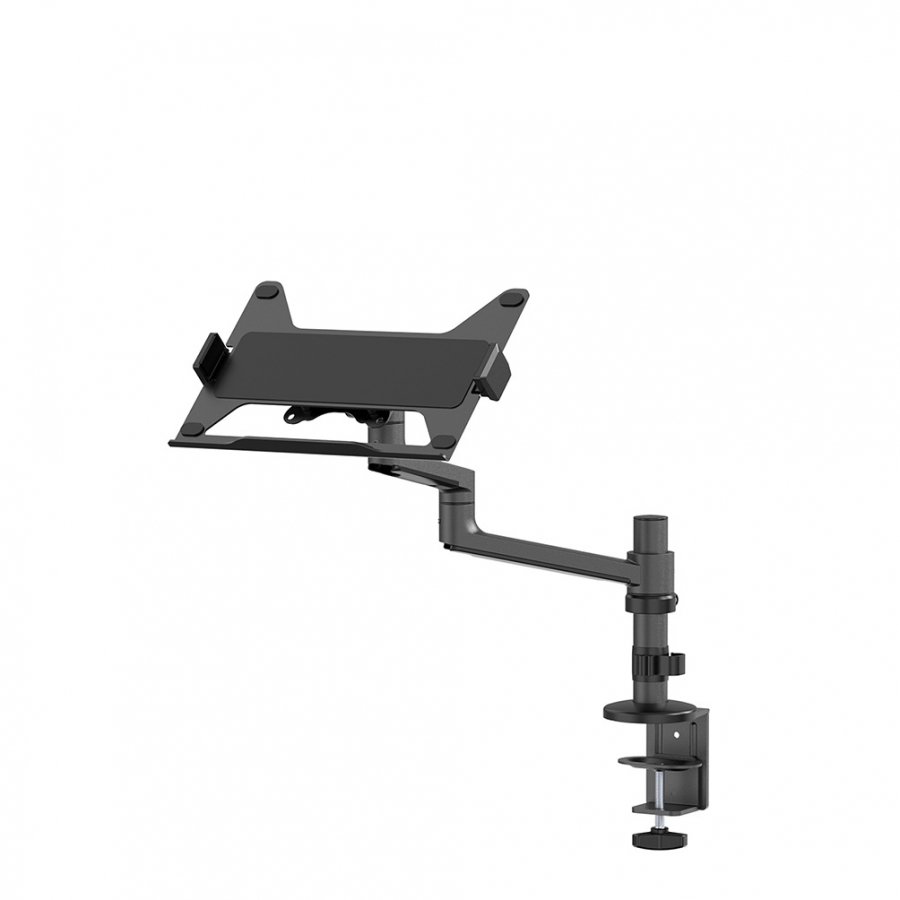

The Neomounts by Newstar DS20-425BL1 is a full motion desk mount for laptops up to 17,3" with a maximum weight capacity of 5 kg. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal height and viewing angle for your laptop. Additionally, the mount has manual height and depth adjustment to create the perfect working position.Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel. The smart internal cable management system ensures orderly routing of the cables. The DS20-425BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.The packaging of the DS20-425BL1 is 100% plastic free and entirely made from cardboard and paper.

Product typeNotebook arm
Product colourBlack
MaterialSteel
Minimum notebook screen size compatibility29.5 cm (11.6")
Maximum notebook screen size compatibility43.9 cm (17.3")
Number of devices supported1
Maximum weight capacity5 kg
AdjustableY
Height adjustmentY
Height adjustment range24.5 - 38.8 mm
Width adjustment range0 - 41.3 mm
Adjustable depthY
Depth adjustment range16.2 - 49.4 mm
Swivel angle range-30 - 90°
Tilt angle range-30 - 90°
RotatingY
Angle of rotation360°
Distance to the wall (max)49.4 cm
Distance to the wall (min)16.2 cm
VESA mountingY
Panel mounting interface75 x 75,75 x 100,100 x 100
Cable managementY
Width465 mm
Depth494 mm
Height641 mm
Package width233 mm
Package depth150 mm
Package height442 mm
Package typeBox
Mounting typeDesk
Country of originChina
Master (outer) case width455 mm
Master (outer) case length320 mm
Master (outer) case height490 mm
Products per master (outer) case4 pc(s)
Master (outer) case net weight14.6 kg
Harmonized System (HS) codeHS7326909890
Products per pallet (EU)56 pc(s)
Number of displays supported1
Package net weight4.4 kg
