Neomounts by Newstar TIS 17"-32" 2TFT 3Gelenk schw. Max.8KG

NEOMOUNTS BY NEWSTAR

DS75-450BL2

Jauns

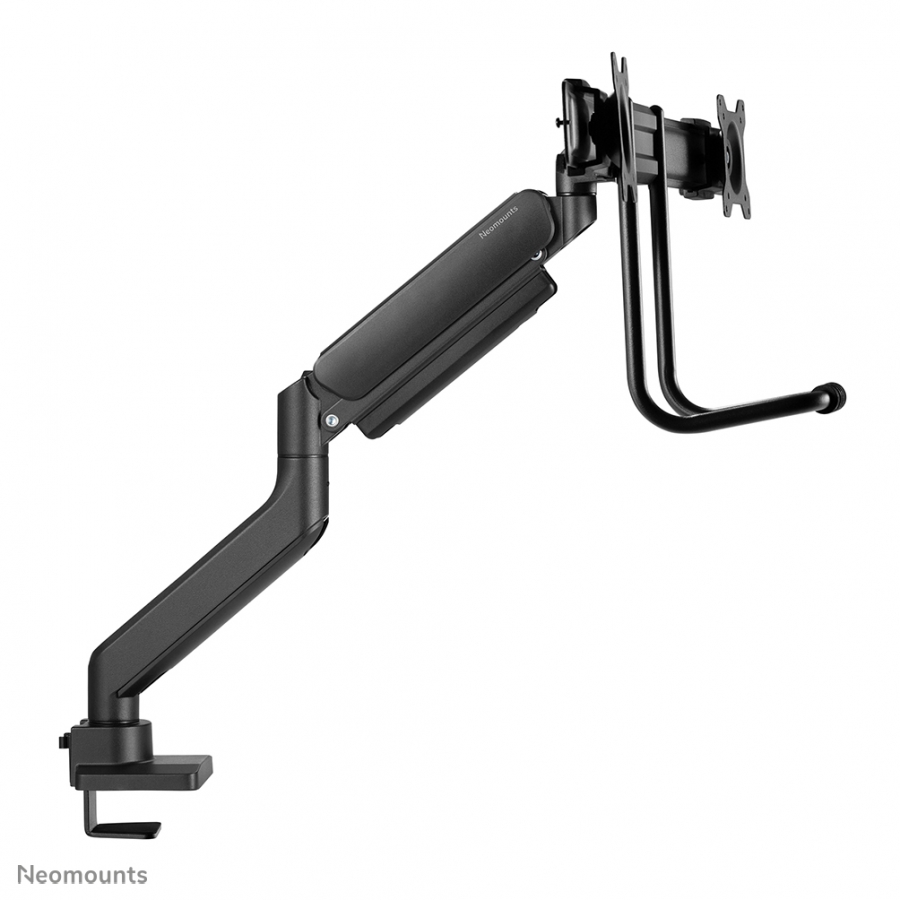

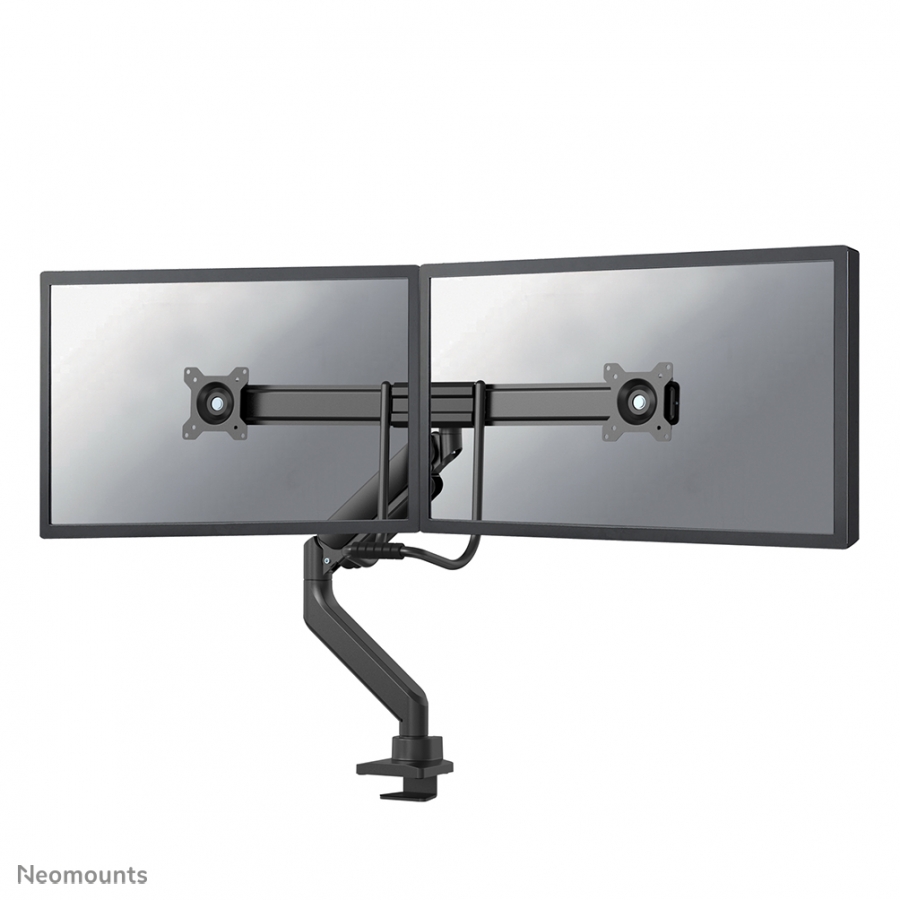

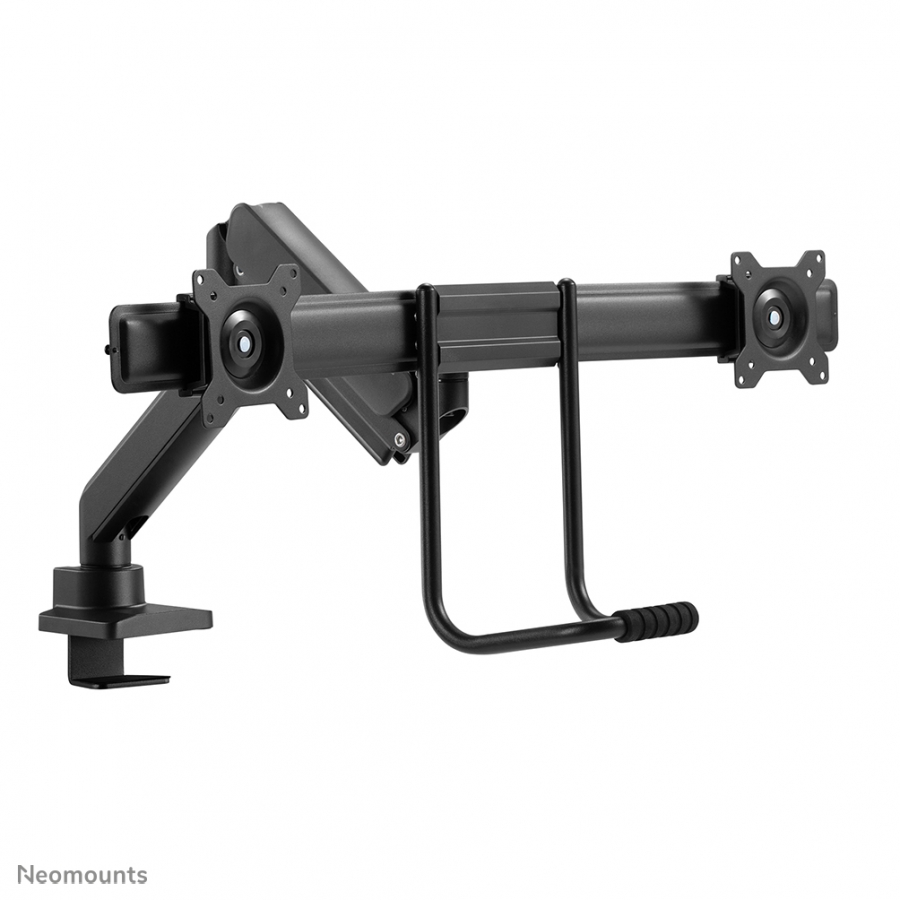

The Neomounts by Newstar DS75-450BL2 is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screens. Additionally, the mount has gas spring height adjustment (27,7-56 cm) and depth adjustment (0-50,5 cm), to create the perfect working position. The DS75-450BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.The DS75-450BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts by Newstar's VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.The inner packaging of the DS75-450BL2 desk mount is plastic free and made from cardboard and paper.

Maximum weight capacity8 kg
Maximum screen size81.3 cm (32")
Mounting typeDesk
Minimum screen size43.2 cm (17")
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Number of displays supported2
MountingClamp/Bolt-through
Panel mounting interface100 x 100 mm
Height adjustmentY
Height adjustment typeGas spring
Height adjustment range277 - 560 mm
Adjustable depthY
Depth adjustment range0 - 505 mm
Tilt angle range-10 - 10°
Swivel angle20°
Swivel angle range-10 - 10°
Angle of rotation360°

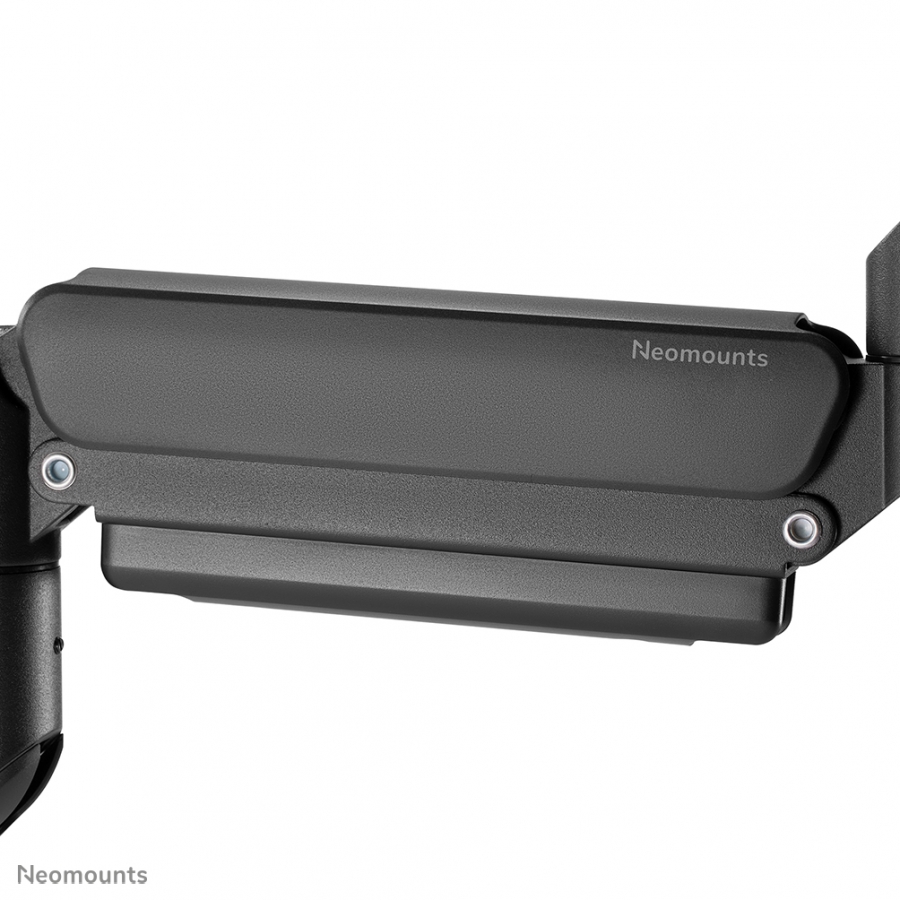

Cable managementY
RotatingY
Tilt adjustmentY
Product colourBlack
Warranty period5 year(s)
Width761 mm
Depth115 mm
Height646 mm
Package width320 mm
Package depth152 mm
Package height445 mm
Mounting kitY
Master (outer) case width335 mm
Master (outer) case length325 mm
Master (outer) case height460 mm
Products per master (outer) case2 pc(s)
Master (outer) case net weight14.3 kg
Harmonized System (HS) code7326909890
Products per pallet (EU)40 pc(s)
Country of originChina
Package net weight7.9 kg
