Neomounts by Newstar TIS 10"-32" 2TFT 2Gelenk weiß Max.8kg

NEOMOUNTS BY NEWSTAR

FPMA-D750DWHITE2

Jauns

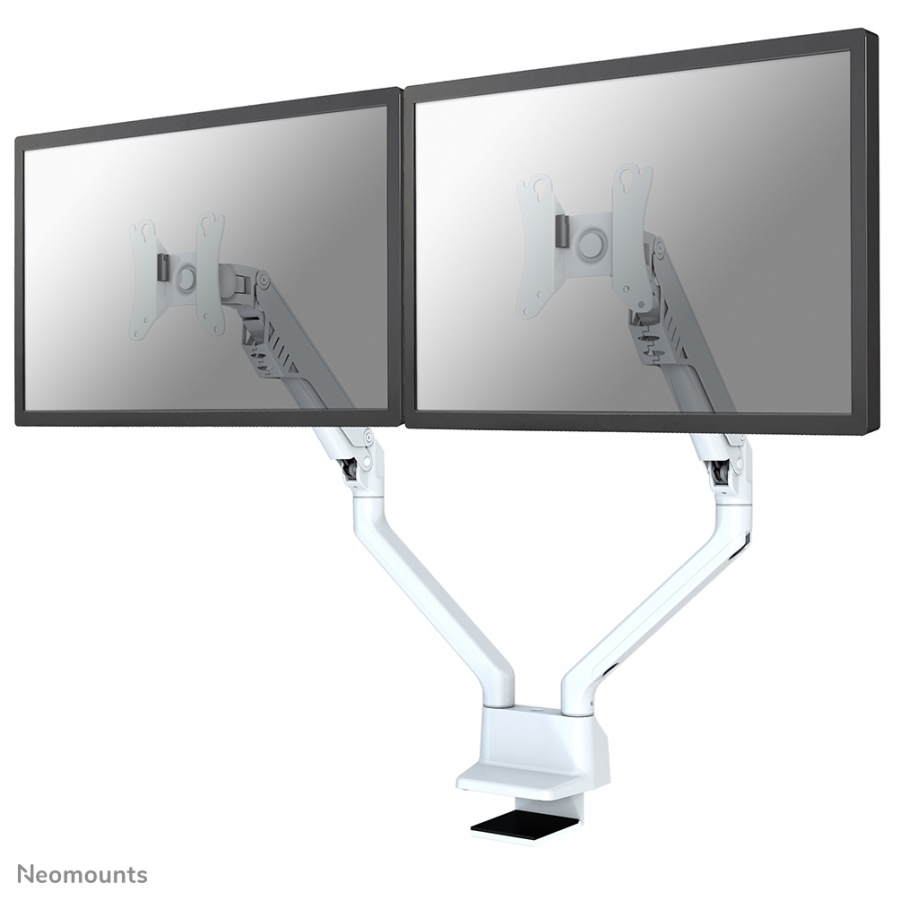

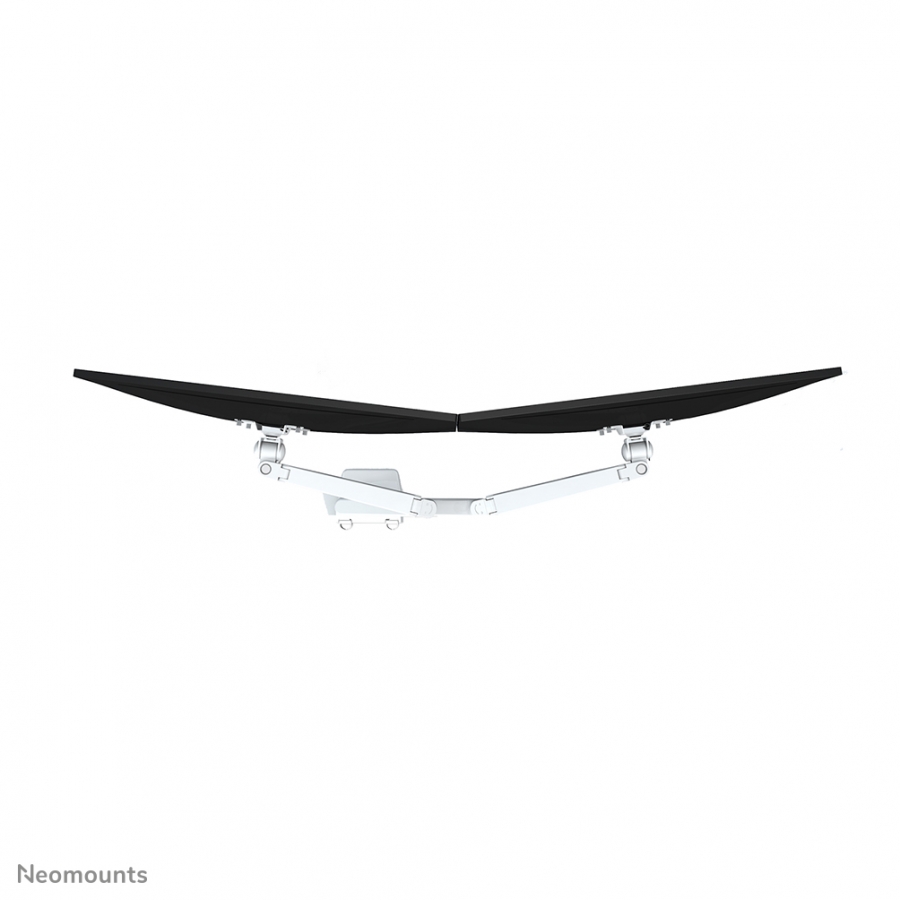

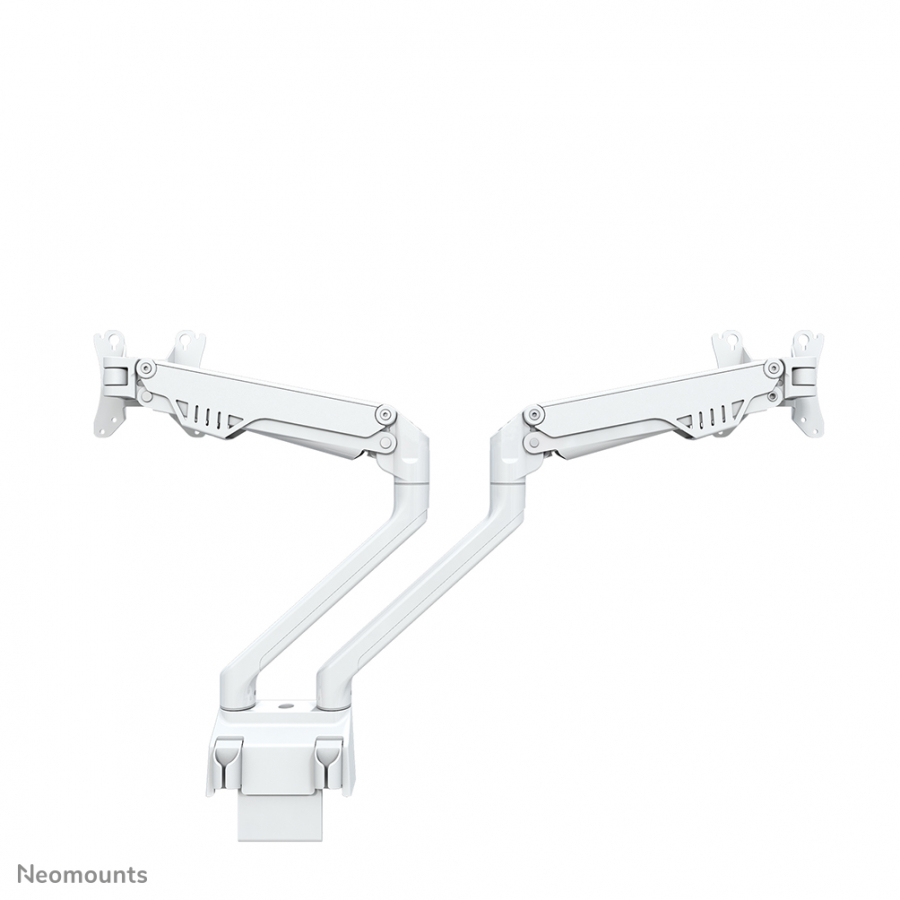

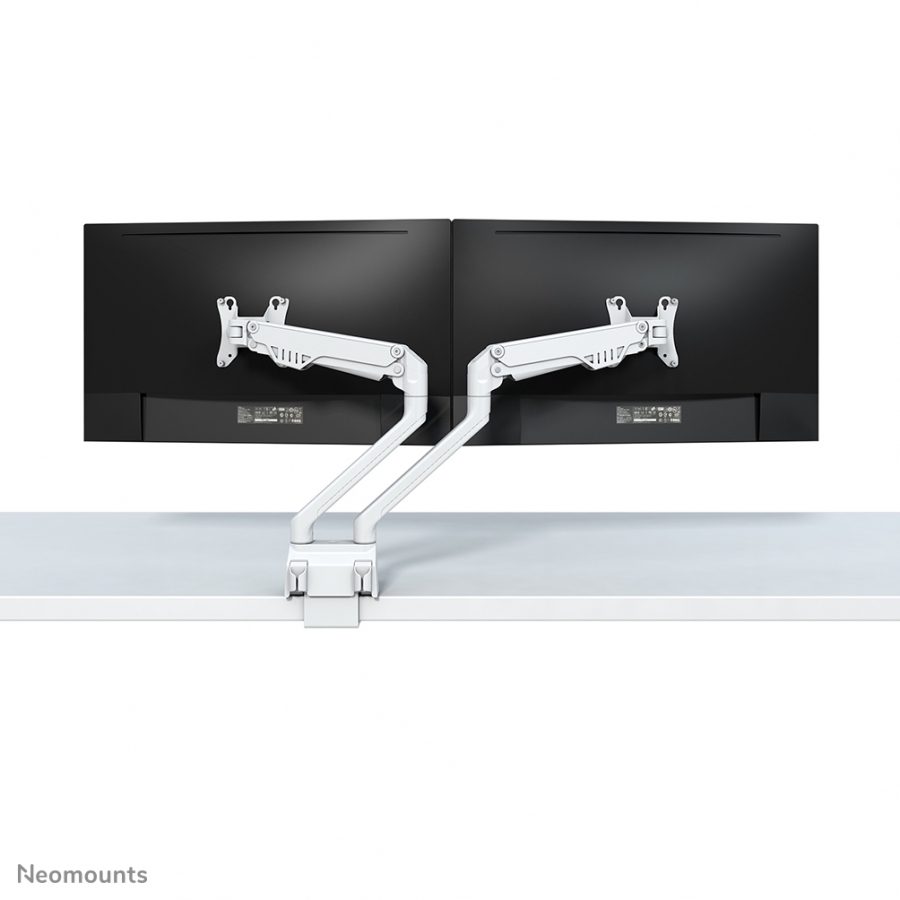

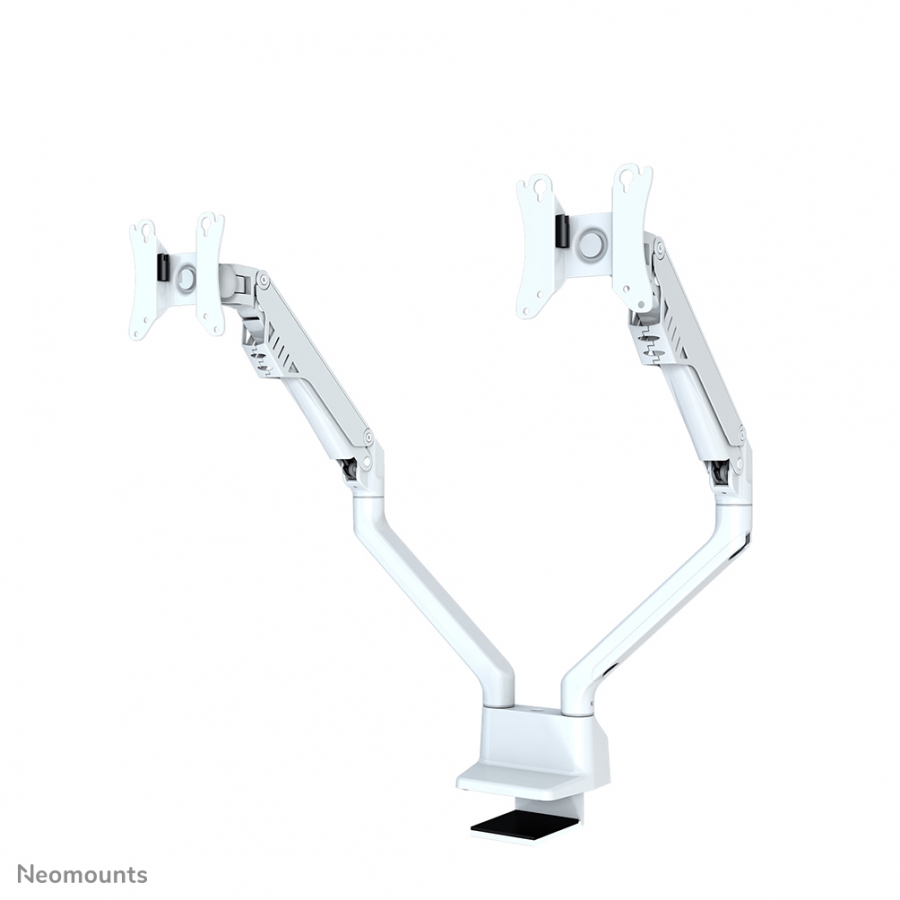

The Neomounts by Newstar desk mount, model FPMA-D750DWHITE2 is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks using a topfix desk clamp or grommet.Neomounts by Newstar's versatile tilt (170°), rotate (180°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is equipped with a 180° stop mechanism. The mount is easily height adjustable from 20 to 51 centimetres using a gas spring. Depth adjustable from 0 to 53 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.Neomounts by Newstar FPMA-D750DWHITE2 has three pivot points and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 2-8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.All installation material is included with the product.

Maximum weight capacity8 kg
Maximum screen size81.3 cm (32")
Mounting typeDesk
Minimum screen size25.4 cm (10")
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Number of displays supported2
Maximum weight capacity (per display)8 kg
MountingClamp/Bolt-through
Panel mounting interface75 x 75,100 x 100 mm
Height adjustmentY
Height adjustment typeGas spring
Height adjustment range200 - 510 mm
Adjustable depthY
Depth adjustment range0 - 530 mm
Tilt angle range-50 - 120°
Swivel angle180°
Angle of rotation180°
Number of pivot points3
Cable managementY
Tilt adjustmentY
Product colourWhite
Package width480 mm
Package depth400 mm
Package height123 mm
Quantity per pack1 pc(s)
Master (outer) case width510 mm
Master (outer) case length440 mm
Master (outer) case height530 mm
Products per master (outer) case4 pc(s)
Master (outer) case net weight19.6 kg
Harmonized System (HS) code7326909890
Products per pallet (EU)24 pc(s)
Country of originChina
Package net weight5.3 kg
