Neomounts by Newstar TIS 17"-27" 2TFT 2Gelenk schw. Max.7kg

NEOMOUNTS BY NEWSTAR

DS70-750BL2

Jauns

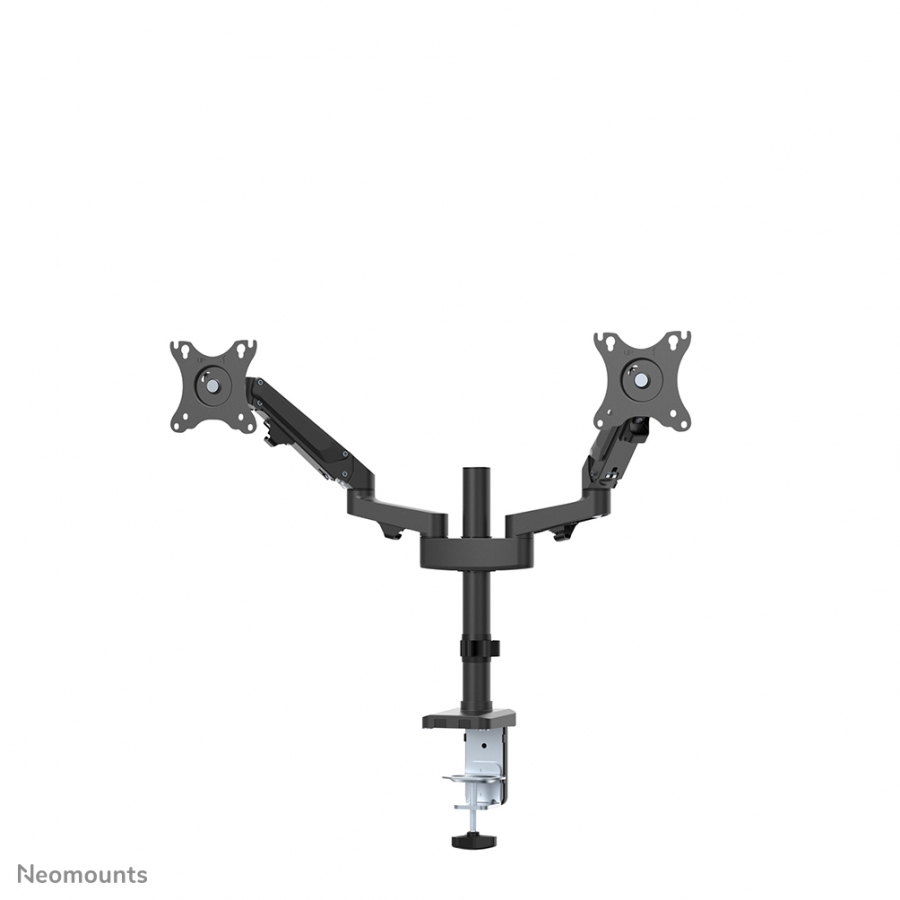

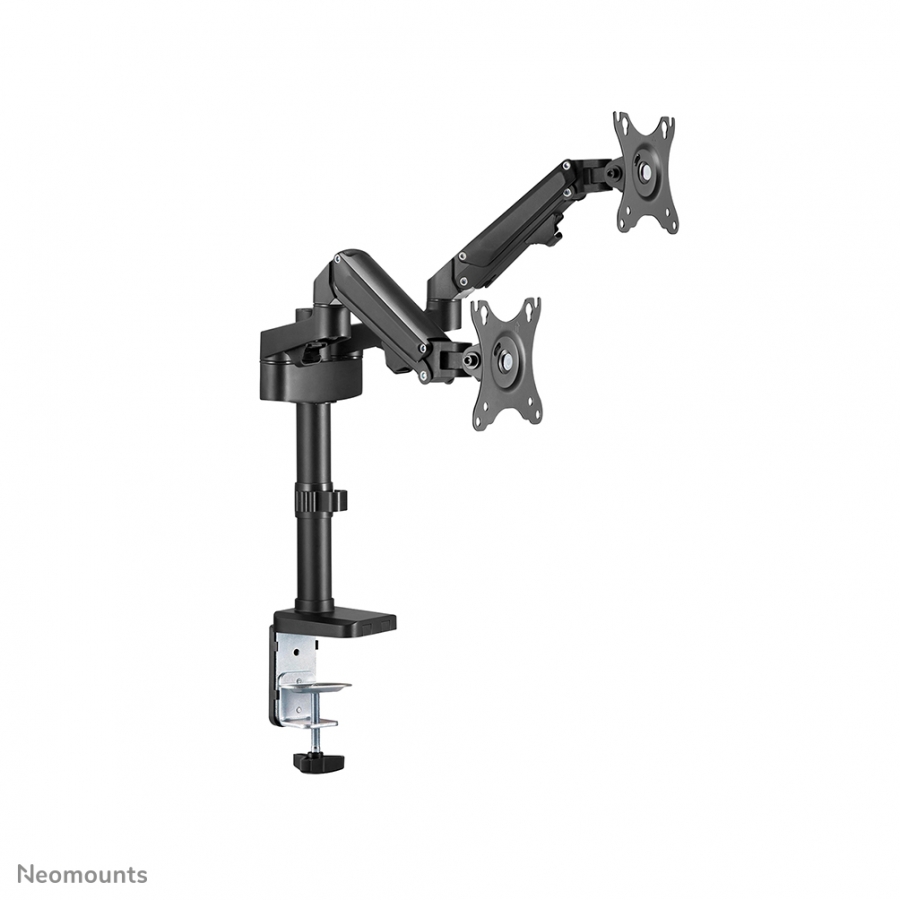

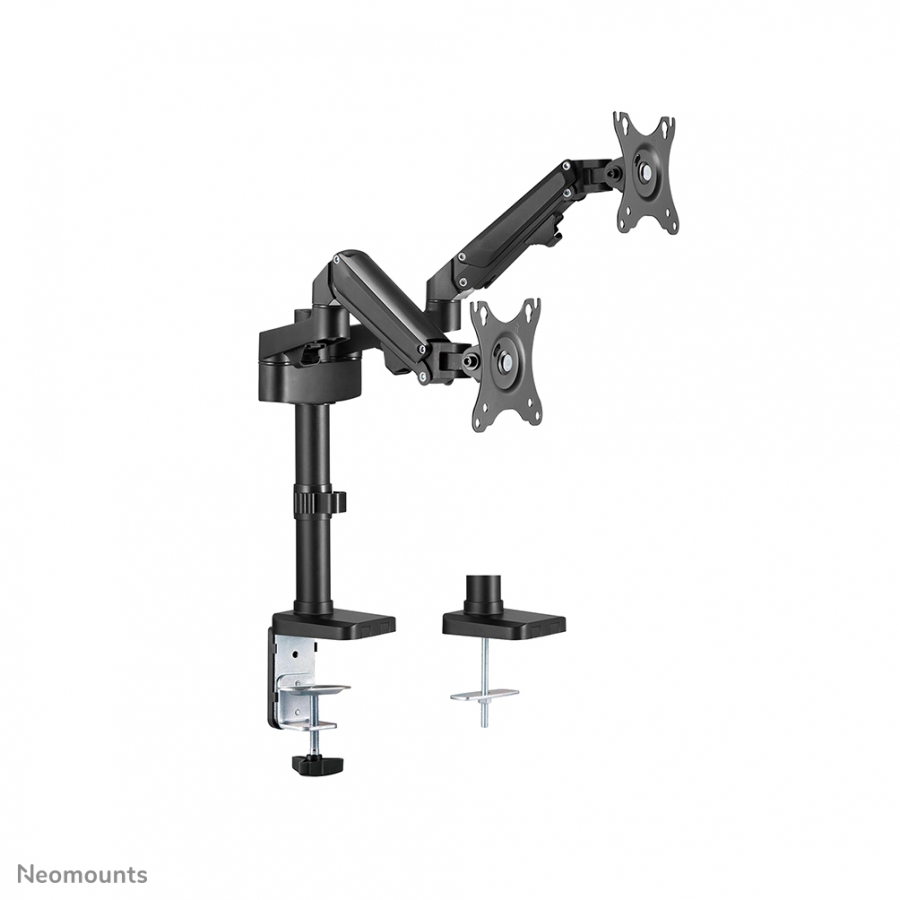

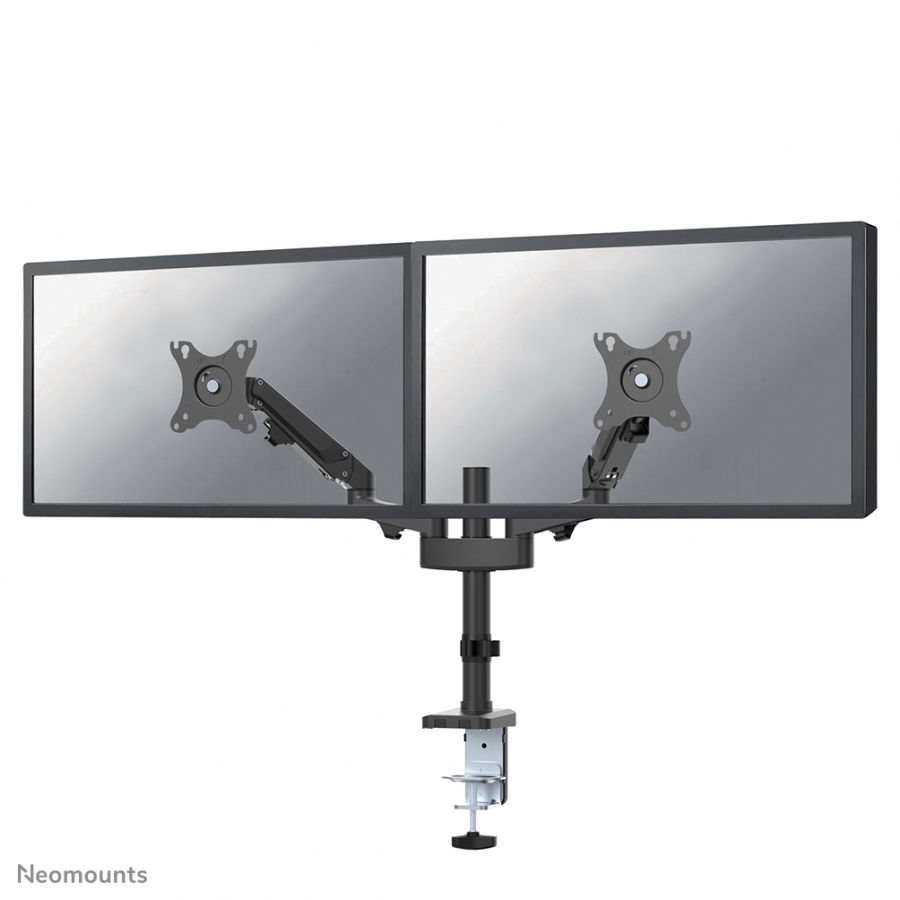

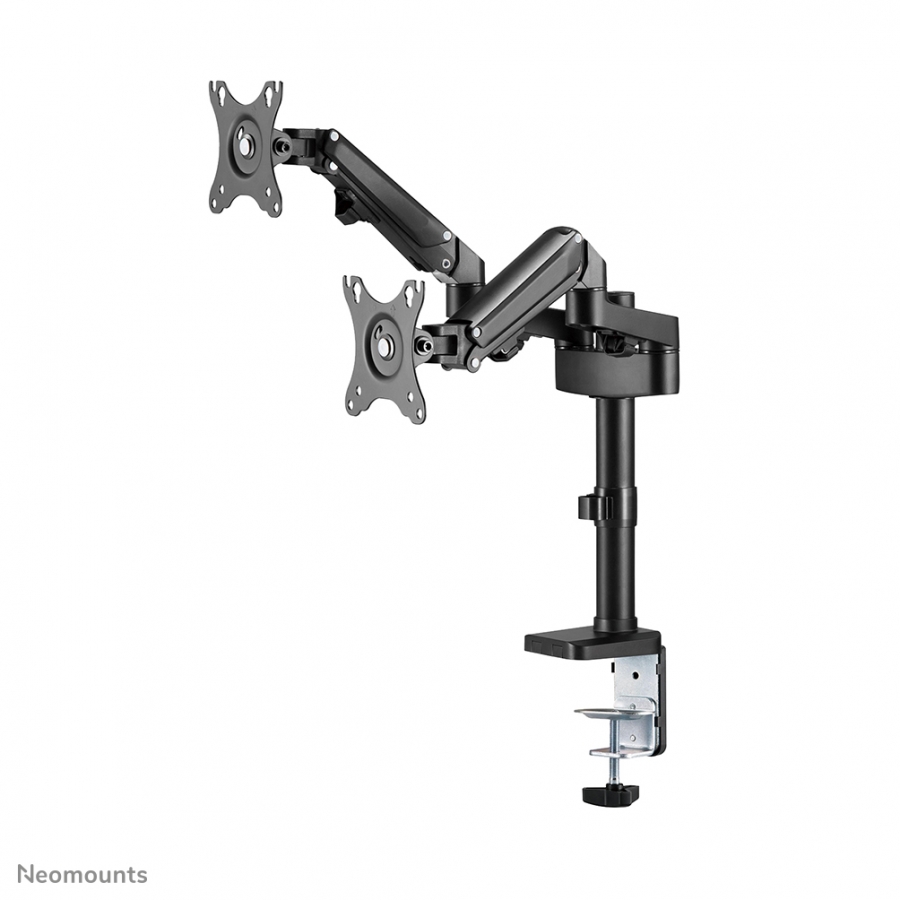

The Neomounts by Newstar DS70-750BL2 is a full motion desk mount for two flat screens up to 27" with a maximum weight capacity of 7 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (7,3-48,1 cm) and depth adjustment (0-37,8 cm), to create the perfect working position.The DS70-750BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts by Newstar's VESA adapter plates. The DS70-750BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.

Maximum weight capacity7 kg
Maximum screen size68.6 cm (27")
Mounting typeDesk
Minimum screen size43.2 cm (17")
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Number of displays supported2
Maximum weight capacity (per display)7 kg
MountingClamp/Bolt-through
Panel mounting interface75 x 75,100 x 100 mm
Height adjustmentY
Height adjustment typeGas spring
Height adjustment range73 - 481 mm
Adjustable depthY
Depth adjustment range0 - 378 mm
Tilt angle range-45 - 45°
Swivel angle range-90 - 90°
Angle of rotation180°
Cable managementY
RotatingY
Tilt adjustmentY
Product colourBlack
OrientationLandscape/Portrait
Width825 mm
Depth440 mm
Height679 mm
Package width266 mm
Package depth132 mm
Package height425 mm
Quantity per pack1 pc(s)
Master (outer) case width440 mm
Master (outer) case length280 mm
Master (outer) case height550 mm
Products per master (outer) case4 pc(s)
Master (outer) case net weight14.4 kg
Harmonized System (HS) code7326909890
Products per pallet (EU)64 pc(s)
Country of originChina
Package net weight4.4 kg
