Neomounts by Newstar TIS 10"-27" 1TFT 1Gelenk silb. Max.10KG

NEOMOUNTS BY NEWSTAR

FPMA-D800

Jauns

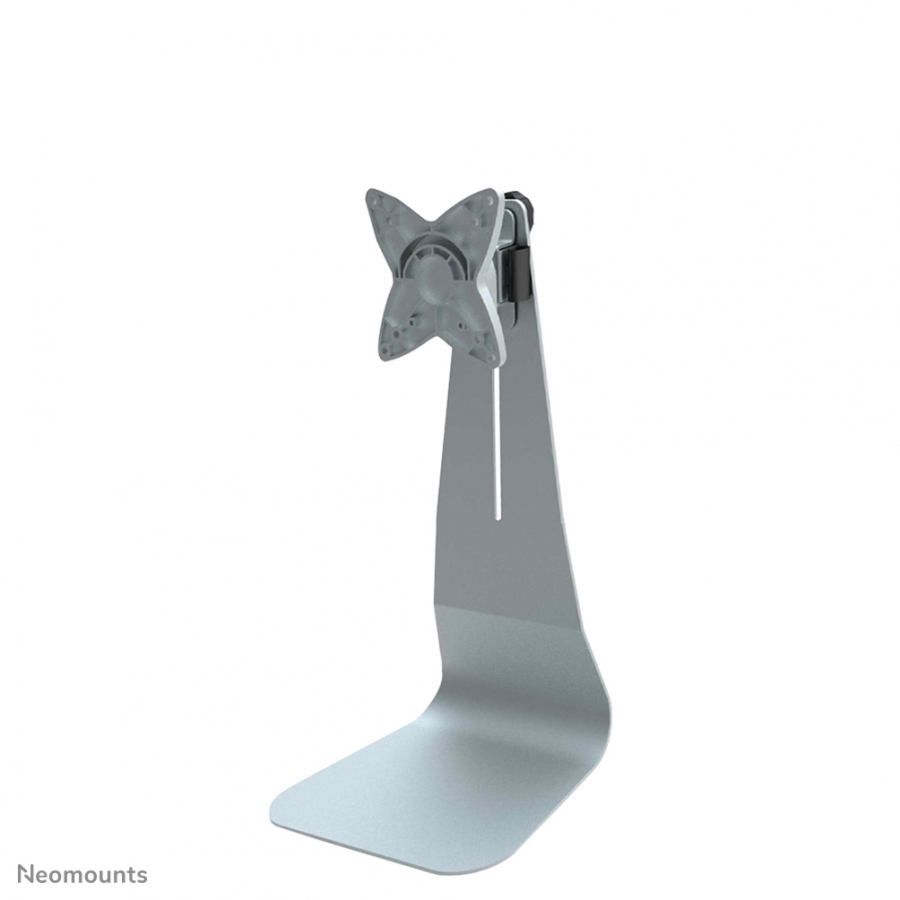

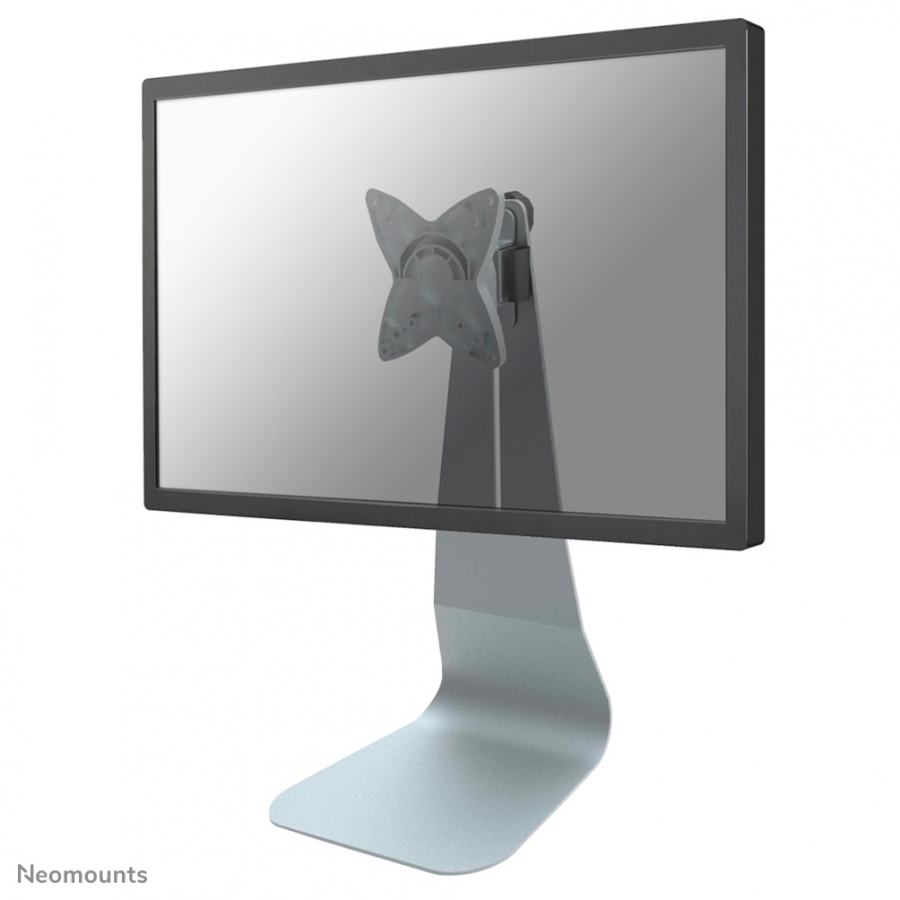

The Neomounts by Newstar desk mount, model FPMA-D800 is a tilt-, swivel and rotatable desk mount for flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk stand.Neomounts by Newstar's versatile tilt (30°), rotate (360°) and swivel (45°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 21 to 37 centimetres. Depth 6 centimetres.Neomounts by Newstar FPMA-D800 has two pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 10 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.All installation material is included with the product.

Maximum weight capacity10 kg
Maximum screen size68.6 cm (27")
Mounting typeDesk
Minimum screen size25.4 cm (10")
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Number of displays supported1
MountingFreestanding
Height adjustmentY
Height adjustment typeManual

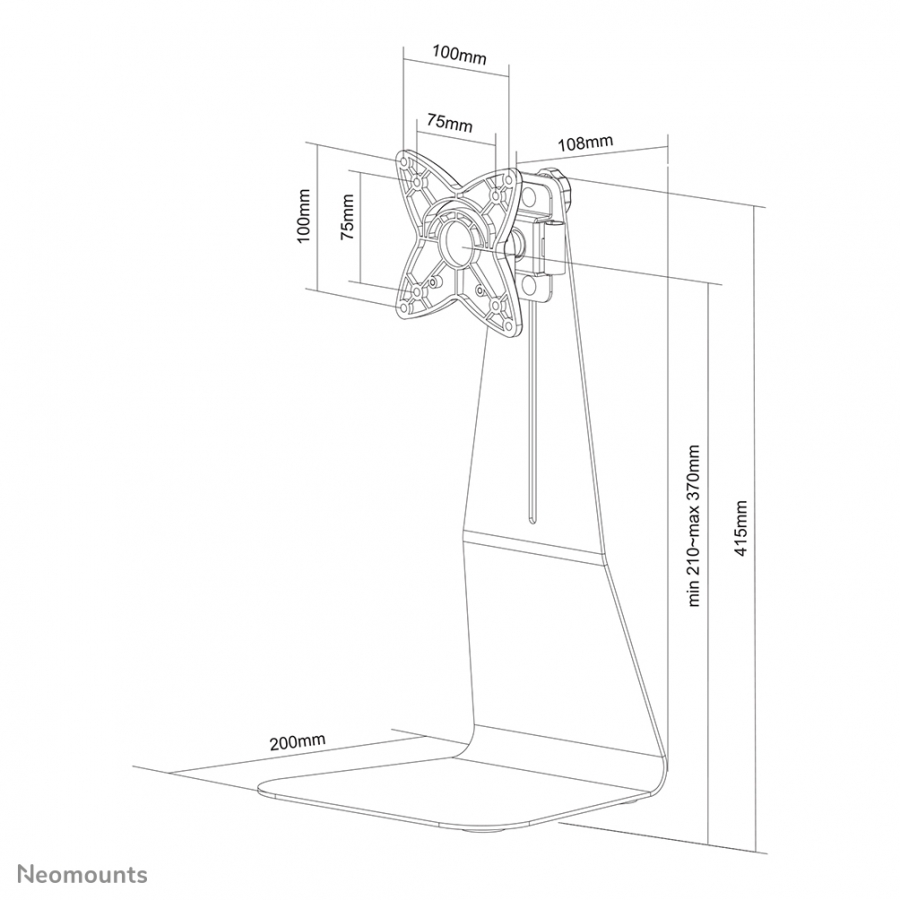

Height adjustment range210 - 370 mm
Tilt angle range0 - 180°
Swivel angle60°
Angle of rotation360°
Product colourSilver
Depth60 mm
Height370 mm
Package width215 mm
Package depth430 mm
Package height260 mm
Master (outer) case width540 mm
Master (outer) case length320 mm
Master (outer) case height445 mm
Products per master (outer) case4 pc(s)
Harmonized System (HS) code7326909890
Products per pallet (EU)60 pc(s)
CompatibilityLCD/TFT/LED TVs
Country of originChina
Mounting interfaceVESA 75 x 75mm, 100 x 100mm
