Delock mSATA 6 Gbs Flash Module A19 32 GB

DELOCK

54664

Jauns

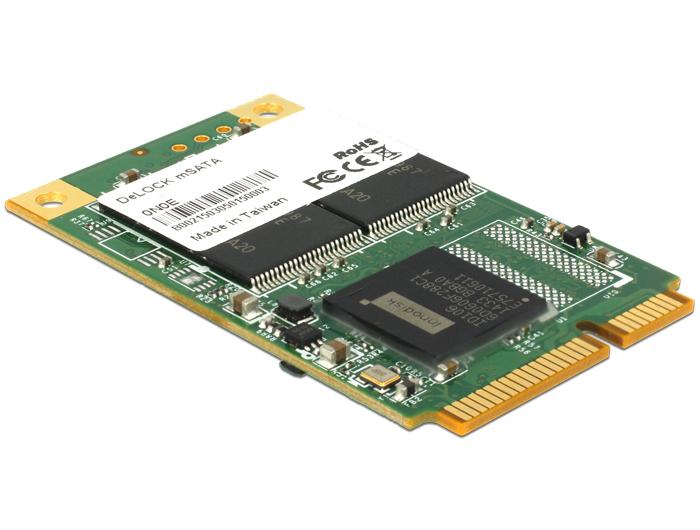

This Delock flash module is a memory in the mini PCIe format with an mSATA connector. It supports the SATA 6 Gb/s specification and benefits from a more effective boot time and lower power consumption than traditional hard drives.

More details

Description:
This Delock flash module is a memory in the mini PCIe format with an mSATA connector. It supports the SATA 6 Gb/s specification and benefits from a more effective boot time and lower power consumption than traditional hard drives.

Specification:
• Capacity: 32 GB
• Chipset: Toshiba A19
• Typ: MLC (Multi Level Cell)
• Form factor: miniPCIe full size
• Interface: mSATA 6 Gb/s
• Read: up to 473 MB/s; write: up to 84 MB/s
• Operating temperature: 0 °C ~ 70 °C
• Storage temperature: -55 °C ~ 95 °C
• MTBF: > 3.000.000 hrs
• Vibration: 20G / 7~2000 Hz
• Shock: 1500 G / 0.5 ms
• Input voltage: 3.3 V
• Power consumption: ca. 200 mA
• S.M.A.R.T. supported
• Dimensions (LxWxH): ca. 29.8 x 50.8 x 4.4 mm

System requirements:
• Mainboard with a free miniPCIe slot with a mSATA interface

Package content:
• mSATA flash module
