Cable Tester Displayport

DELOCK

86120

Jauns

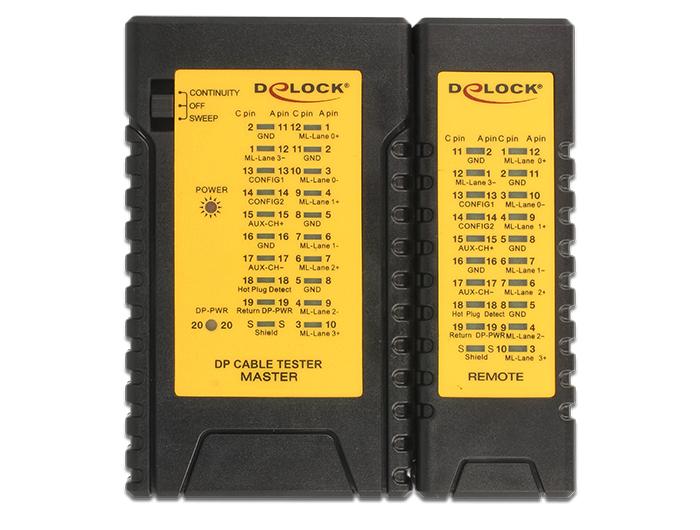

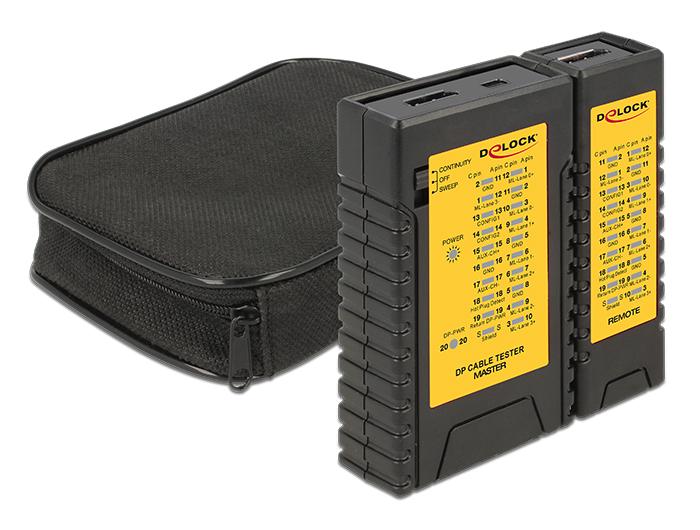

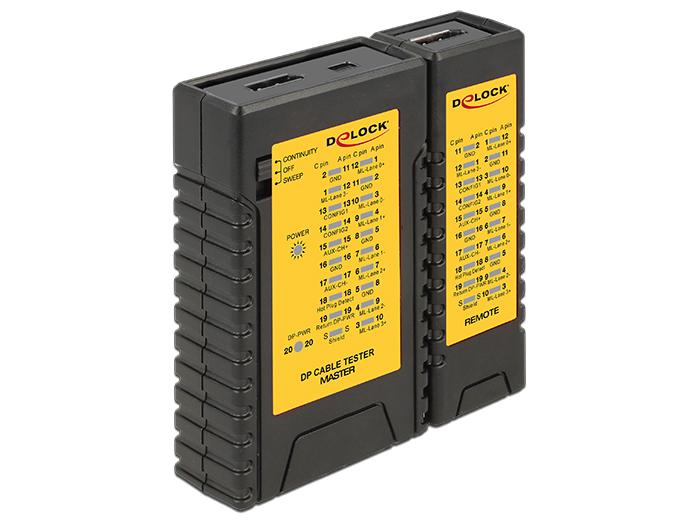

With this cable tester by Delock Displayport cables can be tested quickly and easily. Displayport and mini Displayport connectors are available for all types of cable. There is a separate LED to test if Displayport power (pin 20) is connected. To test already installed cables the attached remote unit can be removed from the tester.

More details

Description:
With this cable tester by Delock Displayport cables can be tested quickly and easily. Displayport and mini Displayport connectors are available for all types of cable. There is a separate LED to test if Displayport power (pin 20) is connected. To test already installed cables the attached remote unit can be removed from the tester.

Specification:
• Cable tester for Displayport cables with mini Displayport and Displayport connectors
• Connectors Main Unit:
1 x Displayport 20 pin female
1 x mini Displayport 20 pin female
• Connectors Remote Unit:
1 x Displayport 20 pin female
1 x mini Displayport 20 pin female
• Removable remote unit
• LED indicator
• LED for testing pin 20 (power)
• Switch for 2 test modes
• Maximum cable length: 50 m
• Battery compartment for 1 x 9 V battery (not included)
• Dimensions (LxWxH): ca. 10.4 x 9.7 x 2.7 cm

System requirements:
• 9-volt battery

Package content:
• Cable tester
• Bag
• User manual
