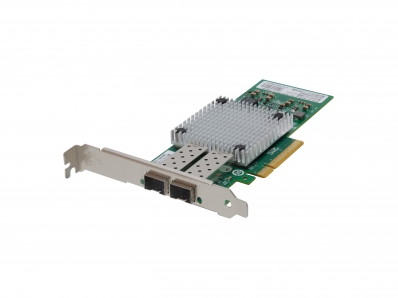

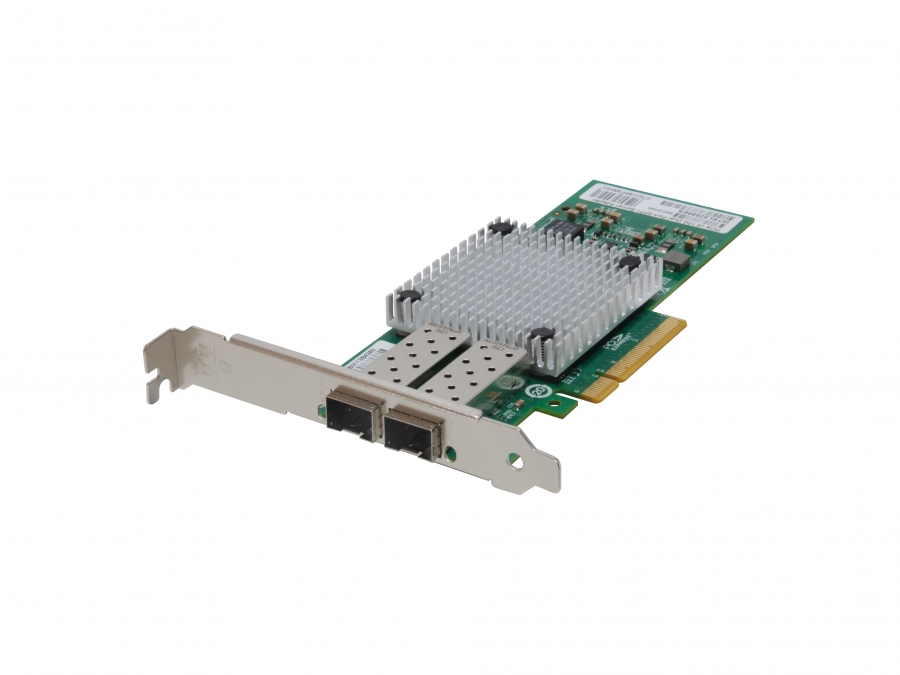

Level One LevelOne 10-Gigabit SC Fiber PCIe Network Card 8x/2xSFP

LEVEL ONE

GNC-0202

Jauns

The LevelOne GNC-0202 Gigabit network card facilitates high-speed connectivity within a fiber-optic network, supporting Dual SFP+ Connectivity and Fibre Channel over Ethernet (FCoE). Wake-on-LAN functionality allows remote start-up and shutdown, with iSCSI remote boot providing further flexibility. GNC-0202 also features an Intel PROSet Utility for Windows Device Manager as well as providing advanced load balancing across multiple CPUs, and is compatible with most network operating systems.

- Built-in Wake-on-LAN feature to startup/shutdown computers remotely
- Supports Dual SFP+ Connectivity
- Load balancing across multiple CPUs
- Supports iSCSI remote boot
- Supports Fibre Channel over Ethernet (FCoE)
- Supports most network operating systems (NOS)
- Intel® PROSet Utility for Windows* Device Manager
- IEEE 1588 and 802.1as (Time Sync)

Connectivity technologyWired
Host interfacePCI Express
InterfaceFiber
Fiber ports quantity2
Fiber optic connectorSFP+
PCI version2.0
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad
Ethernet interface type10 Gigabit
Wake-on-LAN readyY
Jumbo frames supportY
Jumbo frames9.5
iSCSI supportY
InternalY
Product colourAluminium
LED indicatorsActivity, Link
Windows operating systems supportedWindows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8.1, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64
Server operating systems supportedWindows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Width165 mm
Depth69 mm
Height17 mm
Weight110 g
Quantity1
Drivers includedY
Package typeBox
Package width145 mm
Package depth220 mm
Package height30 mm
Package weight62 g
Mounting brackets includedY
Quick installation guideY
ManualY
Harmonized System (HS) code85176990
Data transfer rate5 GT/s
Intel® Virtualization Technology (Intel® VT)VT-c
Intel Virtual Machine Device Queues (VMDq)Y
PCI-SIG* SR-IOV CapableY
Power supply6.5 W
