BAREBONE VIA ARM-Solution AMOS-820 Freescale Quad

VIA

11376

Jauns

Description:


Specification:
Processor: 1.0GHz Freescale i.MX 6 Quad ARM Cortex-A9
System Memory: 1GB DDR3-1066 SDRAM using 128M x16 memory devices
Flash:
4MB SPI Serial Flash
4GB eMMC Flash
Graphics: Support three independent, integrated graphics processing units: an OpenGL® ES 2.0 3D graphics accelerator with four shaders (up to 200 MT/s and OpenCL support), 2D graphics accelerator, and dedicated OpenVG™ 1.1 accelerator
Onboard LAN: Micrel KSZ9031RNX Gigabit Ethernet transceiver with RGMII support
Onboard Audio: Freescale SGTL5000 low power stereo codec
Video Decoder: ADI ADV7180 10-bit, 4 × oversampling SDTV video decoder
HDMI: Integrated HDMI 1.4 transmitter
USB: SMSC USB2514 USB2.0 Hight Speed 4-Port Hub Controllers

Expansion-Slots: 1 x Mini-PCIe slot
Optional support Ublox ZU200 3.75G UMTS/HSPA 3G module or VNT9485 IEEE802.11 b/g/n WiFi module

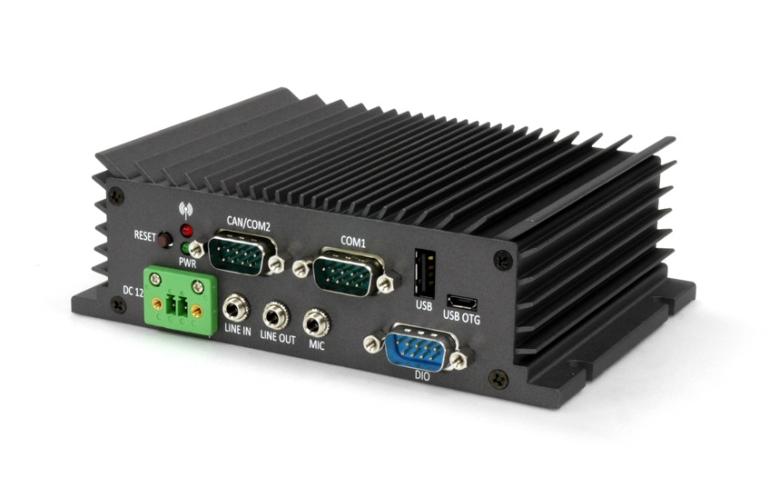

Front Panel I/O:
1 x Reset button
1 x Power & WWAN/WLAN LED
1 x COM2 D-sub 9-pin connector support, 1 x COM(COM Supports 2-wire Tx/Rx) and 2 x CAN Bus(Support CAN Protocol specification Version 2.0 B)
1 x COM1 D-sub 9-pin connector support 8-wire DTE mode
1 x USB2.0 connector
1 x Micro USB2.0 type B connector support OTG
1 x DC Power input connector by 2-pole Phoenix connector
3 x 3.5Ø phone jack connectors as Line-out, Mic-In, Line-in
1 x DIO D-sub 9-pin connector support 8-bit GPIO

Back Panel I/O:
1 x Micro SD/SPI boot switch
1 x RJ-45 connector
2 x USB 2.0 connectors
1 x HDMI connector
1 x Composite RCA jack

Bottom Opening Covers: Open window with removable door plate to access the micro SD flash drive and Mini PCI-e slot
Power Supply: DC in 12V

Operating System: Embedded Linux 3.x, Android 4.x
Operating Temperature: -20°C ~ 65°C (3G&WiFi not included)
Operating Humidity: 0 ~ 90% @ 45°C, non-condensing
Vibration Loading during Operation: With onboard eMMC
7Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1 Oct./min, 1hr/axis
Shock during Operation:
With onboard eMMC 70G, IEC 60068-2-27, half size, 11ms duration

System requirements:


Package content:
Amos-820
1 x Power cable (2-pole Phoenix plug to DC-jack)
1 x Screw pack for mounting
1 x Washer rubbers pack
1 x Screw pack for Mini PCIe card
1 x COM/CAN conversion cable
