Delock Module M.2 Key A+E male > WLAN 11ac/a/b/g/n + Bluetooth 4.0

DELOCK

95254

Jauns

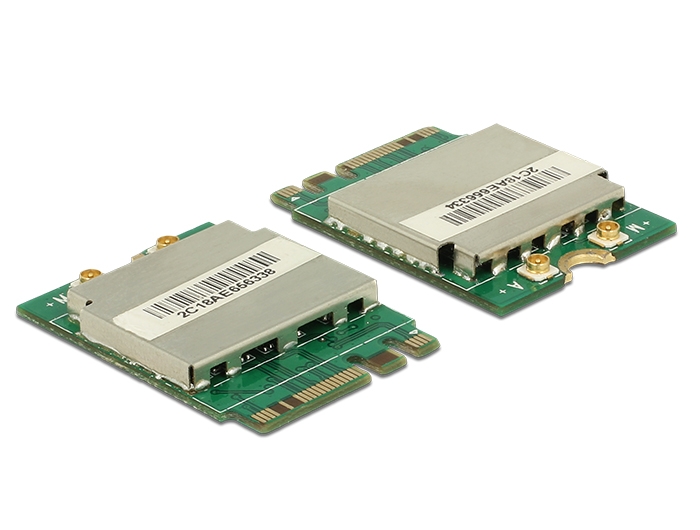

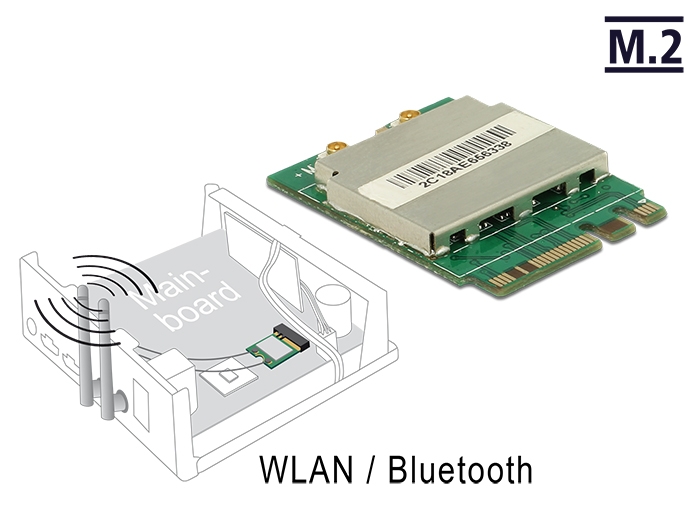

This M.2 module by Delock can be inserted into an M.2 slot with key A or key E. It provides one WLAN interface which exchanges signals via PCIe with the system and one Bluetooth interface which exchanges signals via USB with the system.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.17 / Kernel 4.x.x
• One free M.2 key A or key E slot
Specification:
• Connectors:
  1 x 59 pin M.2 key A+E male
  2 x MHF antenna connector
• Chipset: Realtek RTL8821AE
• Interface: PCIe 1.1 + USB 1.1
• Form factor: M.2 2230
• Suitable for M.2 slot with key A or key E based on PCIe and USB
• WLAN
  Frequency range: 2.4 GHz and 5 GHz
  Compatible with IEEE 802.11ac/a/n/b/g
  Data transfer rate: 11ac up to 433.3 Mb/s, 11n up to 150 Mb/s, 11a/g up to 54 Mb/s
  Supports IEEE 802.11e Quality of Service (QoS) for Multimedia applications (WMM)
  Supports IEEE 802.11i WPA and WPA2
  Supports WiFi Direct, WAPI
• Bluetooth
  Frequency range: 2400 ~ 2483.5 MHz
  Supports BT 4.0 dual mode with simultaneous LE and BR/EDR use
  Supports AFH
  Bluetooth downwards compatible to 3.0 and 2.1
• Current consumption: 3.3 V / 500 mA
• Operating temperature: 0 °C ~ 55 °C
• Storage temperature: -5 °C ~ 65 °C
• Operating humidity: 10 ~ 90 %
• Storage humidity: 5 ~ 90 %
• Dimensions (LxWxH): ca. 30.0 x 22.0 x 2.5 mm
Package content:
• M.2 module
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/95254/pdf.html?sprache=en
