Delock PCI Express x8 Card with 2 x USB 20 Gbps USB Type-C™ female and 2 x USB 5 Gbps Type-A female - Quad Channel

Kods 90097

Condition: Jauns

Vairāk informācijas

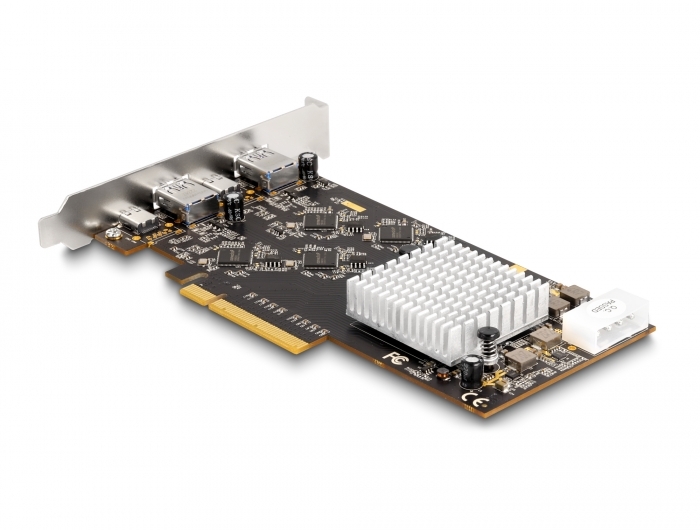

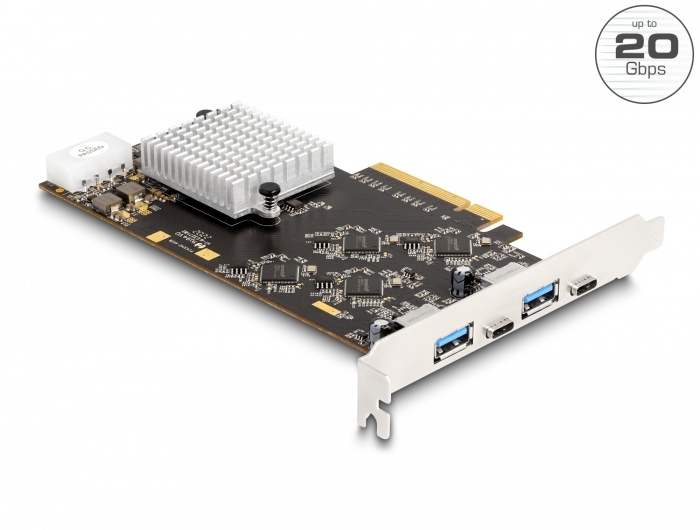

The PCI Express card by Delock expands the PC by four external USB 3.2 ports, two USB-C™ and two USB Type-A ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.

Quad Channel

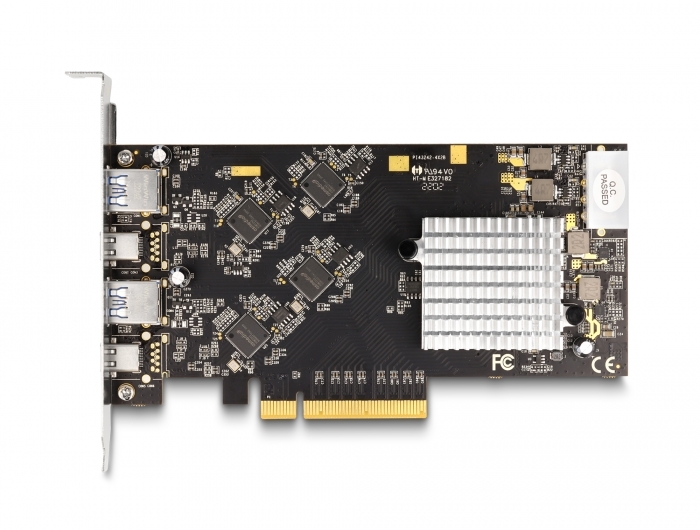

The card has four ASM3242 chipsets, a separate chipset for each USB connector. This ensures the high data transfer rate of 20 Gbps on the USB Type-C™ ports and 10 Gbps on the USB Type-A ports when used at the same time.

The PCIe card can be supplied with power via the PCIe connector. If this is not sufficient, the card has a 4 pin power connector. At the USB Type-C™ ports the maximum output is 5 V / 3 A and at the Type-A ports 5 V / 0.9 A, all ports together have an output of maximum 7.8 A.

System requirements:
• Linux Kernel 5.15 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• PC with one free PCI Express x8 / x16 / x32 slot

Specification:
• Connectors:
  external:
  2 x USB 10 Gbps Type-A female
  2 x USB 20 Gbps USB Type-C™ female
  internal:
  1 x 4 pin power connector
  1 x PCI Express x8, V3.0
• Chipset: Asmedia ASM3242, Pericom PI7C9X3G816GP
• Data transfer rate up to 20 Gbps
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• Power supply via PCI Express interface or via 4 pin power connector
• Electrical power per port:
  USB Type-A: max. 4.5 watt (5 V / 0.9 A)
  USB Type-C™: max. 15 watt (5 V / 3 A)
• Bootable
• Supports UASP
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports Multiple INs

Package content:
• PCI Express card
• User manual

Data sheet:
http://www.delock.de/produkt/90097/pdf.html?sprache=en
