Delock Gigabit PoE+ Injector 802.3at

DELOCK

87656

Jauns

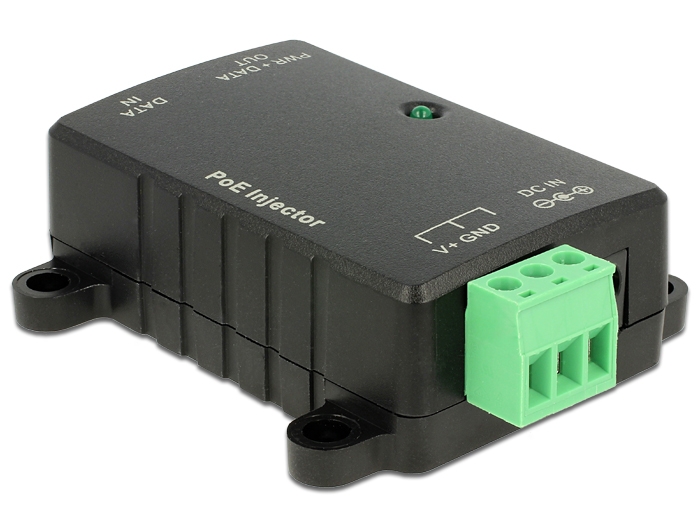

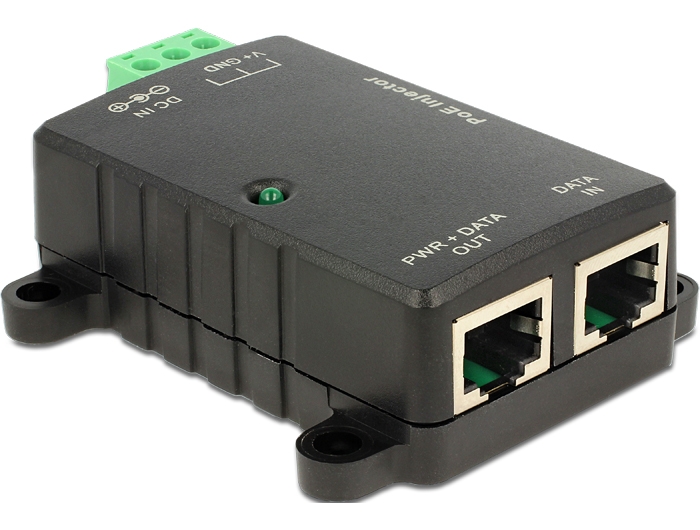

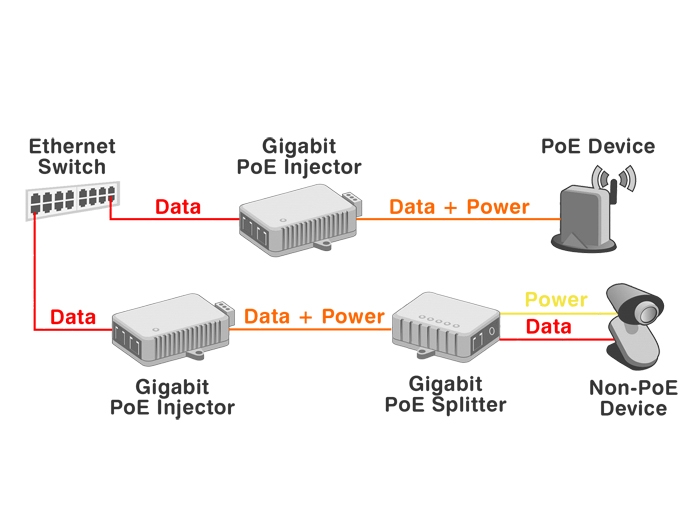

This Power over Ethernet Injector by Delock can supply power via a network cable to a PoE-enabled device, such as an IP camera or a PoE splitter. The injector is connected between the network switch and the PoE device (PD) and provides the device with up to 25.5 watts of power and 1 Gb/s Ethernet. The compact size and integrated wall mounting enable space-saving installation.
Specification:
• Connector:
    1 x RJ45 female (Data In)
    1 x RJ45 female (Power + Data Out)
    1 x terminal block (Power)
    1 x DC female 5.5 x 2.1 mm (Power)
• Data transfer rate up to 1 Gb/s
• LED indicator (power)
• Supports IEEE 802.3at (PoE+) and 802.3af (PoE)
• Phantom power (Mode A, pairs 1/2 and 3/6)
• Wall mounting integrated in the housing
• Power consumption: max. 30 W
• Operating temperature: 0 °C ~ 50 °C
• Dimensions (LxWxH): ca. 80 x 68 x 24 mm
Package content:
• PoE Injector

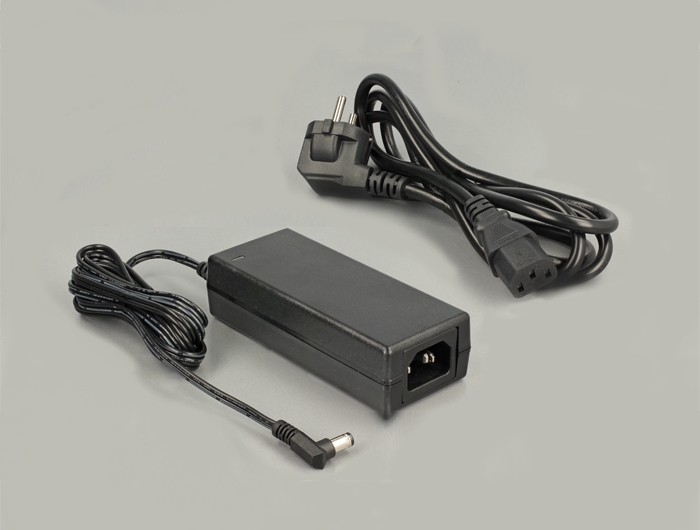

• External power supply
• Power cord
• User manual
Data sheet:
http://www.delock.de/produkt/87656/pdf.html?sprache=en
