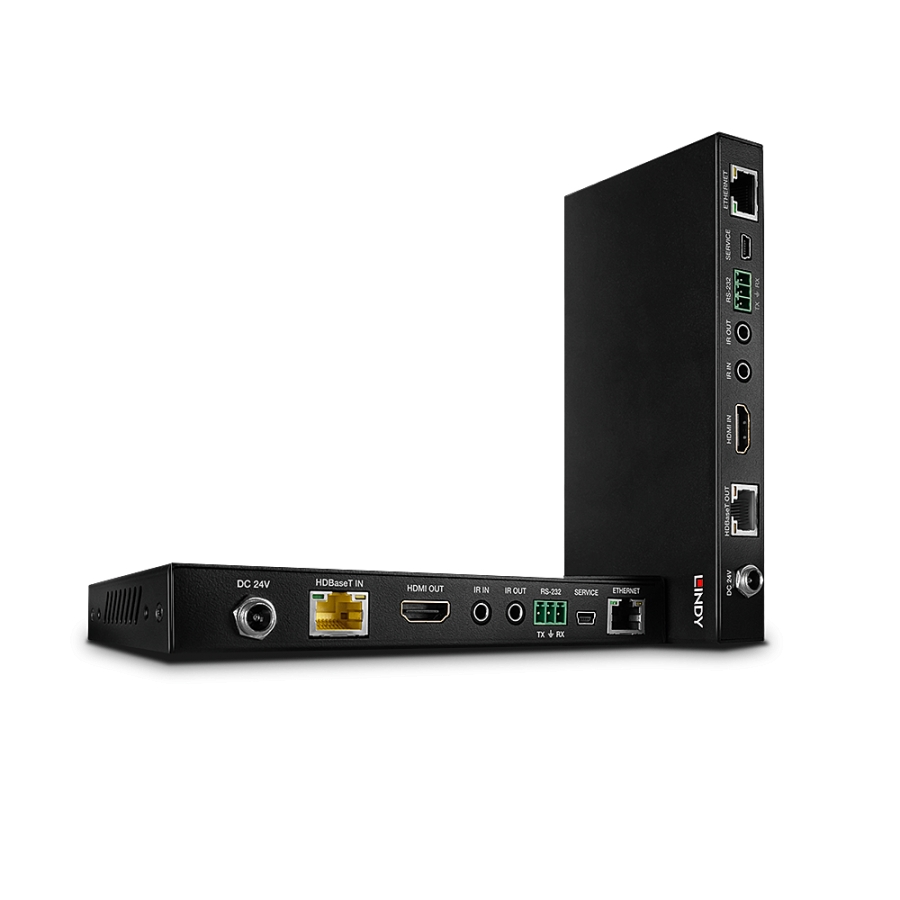

Lindy 100m Cat.6 HDMI 18G, IR & RS-232 HDBaseT Extender with PoC & Ethernet

Lindy

LIN38219

Jauns

 Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 2.0
  • Supported Bandwidth: 18 Gbps
  • Maximum Distance: 100m (328.08ft)
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: Pass-through
  • EDID Pass Through: Pass-through
  • Supported Audio: Pass-through
  • Separate Audio Ports: -
  • IR Support: 30-60 kHz
  • CEC Support: Pass-Through
  • Serial Interface: RS-232
  • Transmission Protocol: HDBaseT
  • Transmission Medium: 1 x Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: VS100
  • Special Features: PoH (Power over HDBaseT)



Connectors

  • Transmitter Input: HDMI (Female), IR (Female)
  • Transmitter Output: RJ45 (Female), IR (Female)
  • Receiver Input: RJ45 (Female), IR (Female)
  • Receiver Ouput: HDMI (Female). IR (Female)
  • Bidirectonal Ports: 10/100 Ethernet, RS232
  • Power: 5.5/2.1mm DC Socket



Physical Properties

  • Dimensions WxHxD: 157x90x20mm (6.18x3.54x0.79in) per unit
  • Housing Material: Metal
  • Nett Weight: 0.333kg (0.73lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 24VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 330x243x74mm (12.99x9.57x2.91in)
  • Gross Weight: 1.45kg (3.2lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package Contents

  • HDBaseT HDMI Extender, Transmitter
  • HDBaseT HDMI Extender, Receiver
  • 2 x IR Emitter Cable, 1.5m
  • 2 x IR Receiver Cable, 1.5m
  • 2 x Mounting Ears
  • 3-Pin Terminal Block
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Lindy Manual



Purchasing Information

  • No. 38219
  • EAN: 4002888382199
