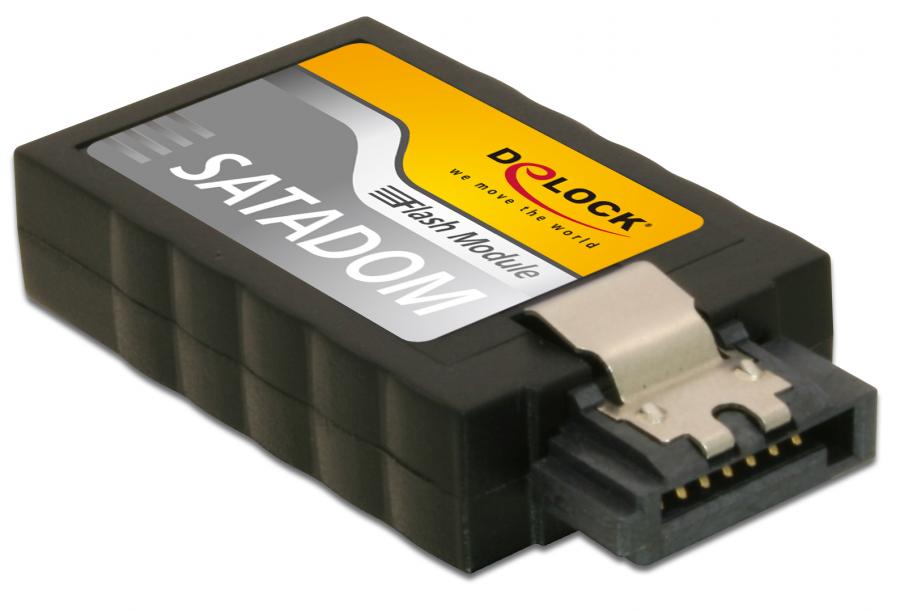

Delock SATA 6 Gbs Flash Module 8 GB MLC -40°C ~ +85°C

DELOCK

54732

Jauns

The Delock SATA 6 Gb/s flash module is, due to its small size, high shock resistance and an extended temperature range of -40°C ~ +85°C ideally suited for robust usage in mobile devices such as IPCs and measuring systems, as well as for the digital signage range. The module supports the SATA 6 Gb/s standard and is therefore convenient for applications that require fast read and write sp...

More details

Description:
The Delock SATA 6 Gb/s flash module is, due to its small size, high shock resistance and an extended temperature range of -40°C ~ +85°C ideally suited for robust usage in mobile devices such as IPCs and measuring systems, as well as for the digital signage range. The module supports the SATA 6 Gb/s standard and is therefore convenient for applications that require fast read and write speed. The metal clip on the SATA connector enables the module to snap in to your SATA port.

Specification:
• Capacity: 8 GB
• Interface: 7 pin SATA 6 Gb/s
• Chip: Toshiba A19
• Flash type: MLC
• Maximum channel: 4
• Maximum performance: 100 MB/s read, 20 MB/s write
• Maximum power consumption: 1.8 W (5 V x 370 mA)
• Thermal sensor: yes
• Write protect: yes
• ATA security: yes
• S.M.A.R.T.: yes
• Dimensions (LxWxH): ca. 41.5 x 25.2 x 6.8 mm
• Vibration: 20 G @7 ~ 2000 Hz
• Shock: 1500 G @0,5 ms
• MTBF: >3 millionen hours
• Storage temperature: -55°C ~ +95°C
• Operation temperature: industrial grade -40°C ~ +85°C

System requirements:
• A free SATA 7 pin port
• Power supply with a free 4 pin power connector

Package content:
• SATA flash module
• Power cable
