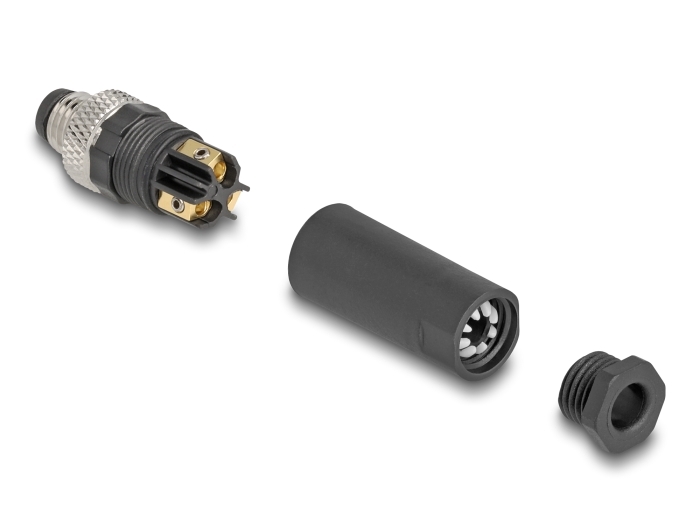

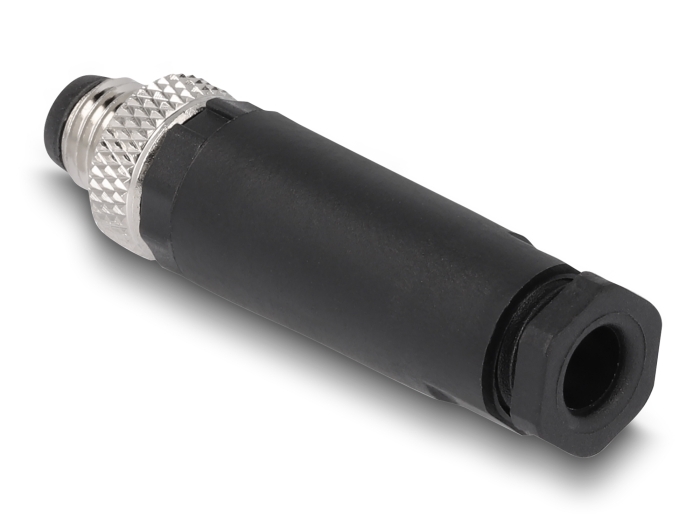

Delock M8 Connector A-coded 3 pin male for mounting with screw connection

DELOCK

60529

Jauns

This connector by Delock can be used to connect a cable via a screw terminal connection with an M8 connector, e.g. for machine control or automation.
System requirements:
• A free M8 female port
Specification:
• Connectors:
  1 x M8 male A-coded 3 pin

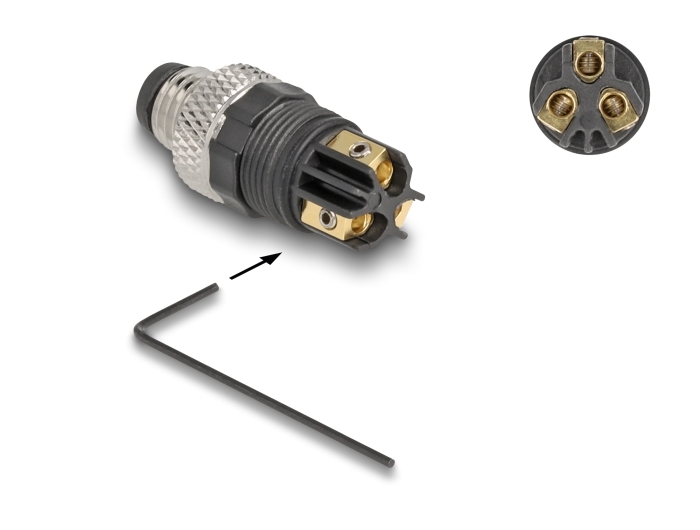

  3 x screw terminal
• Useable for a cable gauge range from 26 to 22 AWG (0.13 - 0.32 mm²)
• Operating voltage: max. 60 V
• Current: max. 3 A
• Operating temperature: -25 °C ~ 85 °C
• Protection class: IP67
• Cable entry max. 3.0 - 4.5 mm
• Thread size: M8 x 1.0 mm
• Housing material: PA66
• Colour: black

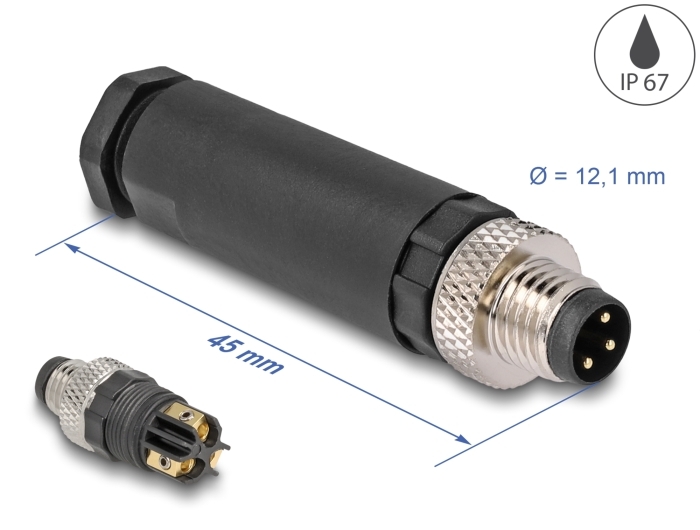

• Dimensions (LxD): ca. 45 x 12.1 mm
Package content:
• Connector

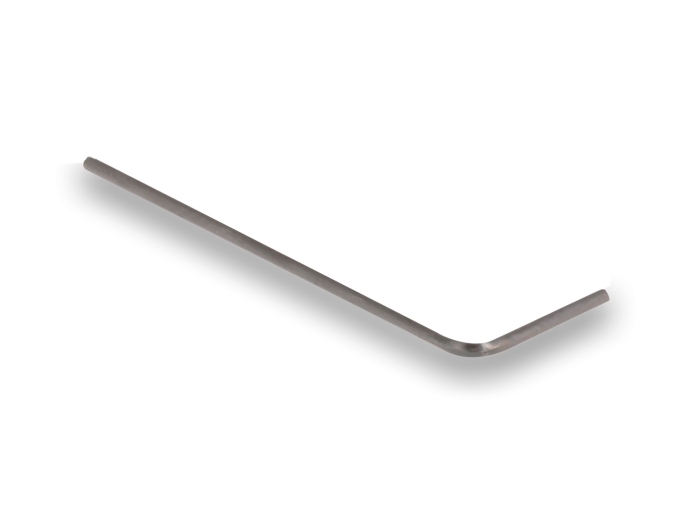

• Allen key
Data sheet:
http://www.delock.de/produkt/60529/pdf.html?sprache=en
