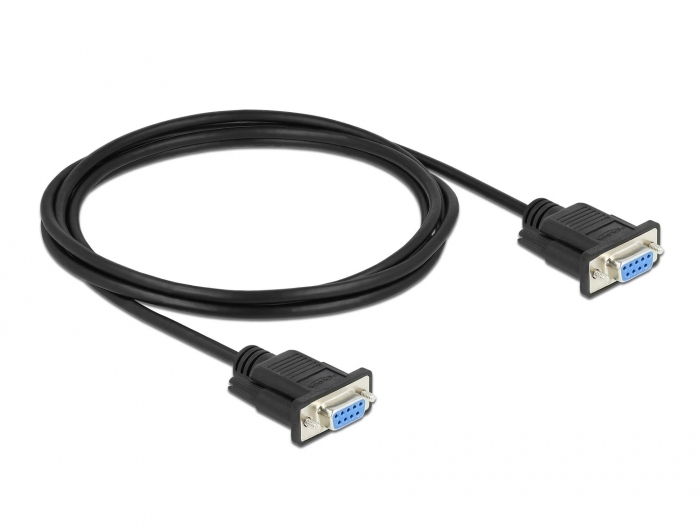

Delock Serial Cable RS-232 D-Sub 9 female to female null modem with narrow plug housing - Full Handshaking - 2 m

DELOCK

87472

Jauns

This serial cable by Delock is a full handshake null modem cable with RTS / CTS and DTR / DTS data flow control. This cable offers the possibility to connect RS-232 devices directly with each other. Optionally, devices can be supplied with power via the RI line.

Mini D-Sub 9 connector

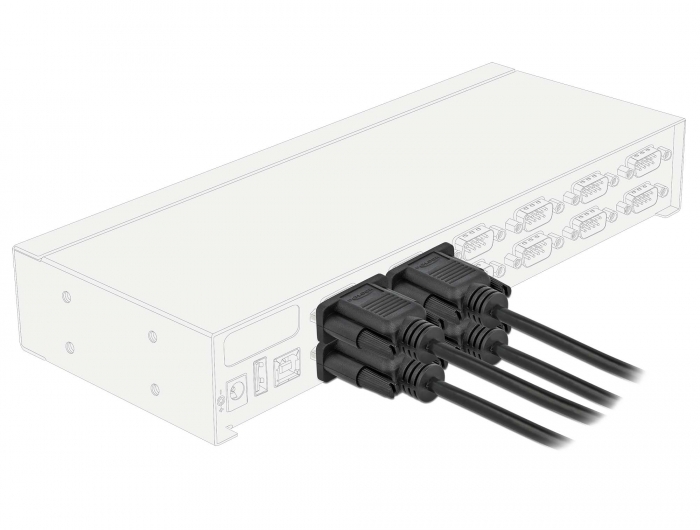

These cables fit any RS-232 port, as the mini D-Sub 9 connectors (44 x 33.3 x 15 mm) are small and compact. In this way, RS-232 connections can be used next to each other.
System requirements:
• A free D-Sub 9 male port
Specification:

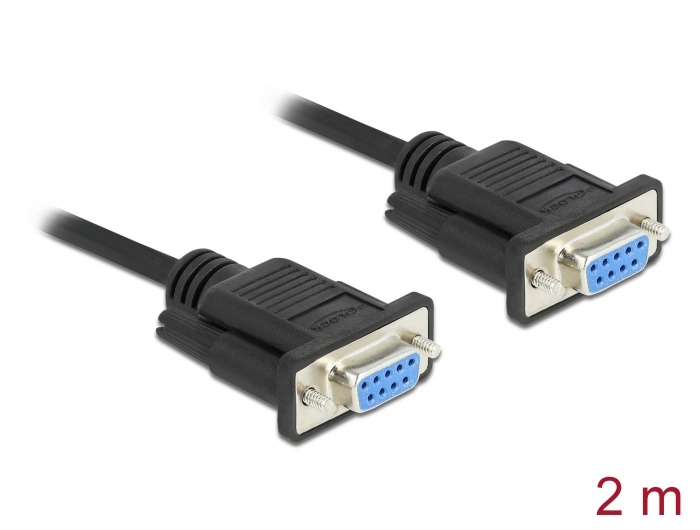

• Connectors:
  1 x serial D-Sub 9 female with screws >
  1 x serial D-Sub 9 female with screws
• Cable gauge: 28 AWG
• Full handshaking cable
• Pin assignment:  2 – 3, 3 – 2, 4 – 6, 6 – 4, 5 – 5, 7 – 8, 8 – 7, 9 – 9, shielded
• Colour: black
• Insulator: PVC
• Screw type: #4-40 UNC
• Cable diameter: ca. 5 mm
• Cable length incl. connectors: ca. 2 m
Package content:
• Cable
Data sheet:
http://www.delock.de/produkt/87472/pdf.html?sprache=en
