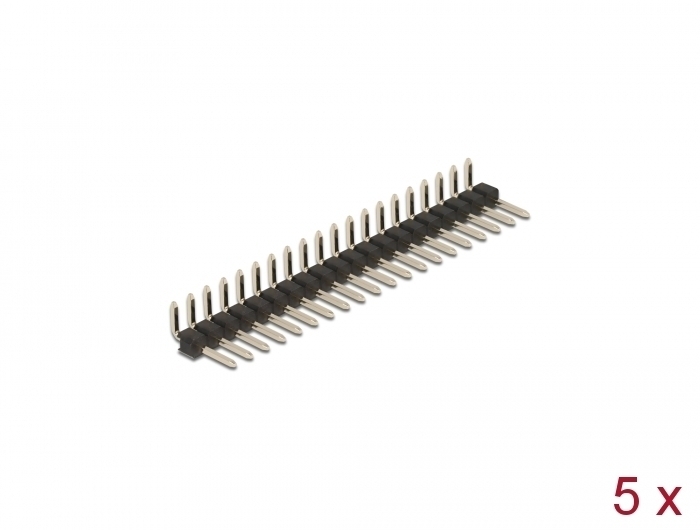

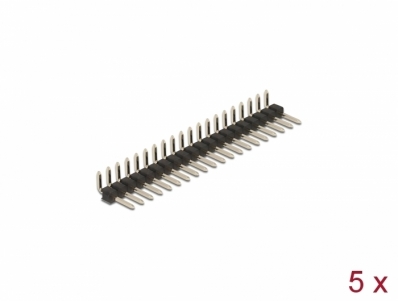

Delock Pin header 20 pin, pitch 2.54 mm, 1-row, angled, 5 pieces

DELOCK

66696

Jauns

These pin headers by Delock can be used on printed circuit boards to create a connection between individual boards.
Specification:
• Number of pins: 20
• Pitch: 2.54 mm
• Contact resistance: 20 mΩ
• Isolation resistance: 1000 MΩ / min.
• Withstanding voltage: 500 V AC / DC
• Operating temperature: -40 °C ~ 105 °C
• Processing temperature: 230 °C (30 - 60 seconds)
• Contacts gold-plated
• Material of header: polyester UL 94V-0
• Colour: black
• Dimensions (LxWxH): ca. 50.8 x 10.4 x 2.5 mm
Package content:
• 5 x pin header
Data sheet:
http://www.delock.de/produkt/66696/pdf.html?sprache=en
