Delock Adapter D-Sub 9 pin female to RJ12 6P/6C female Assembly Kit

DELOCK

66759

Jauns

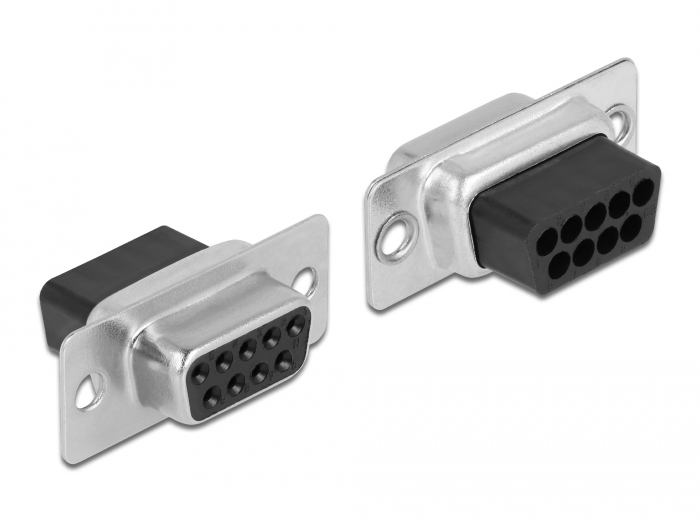

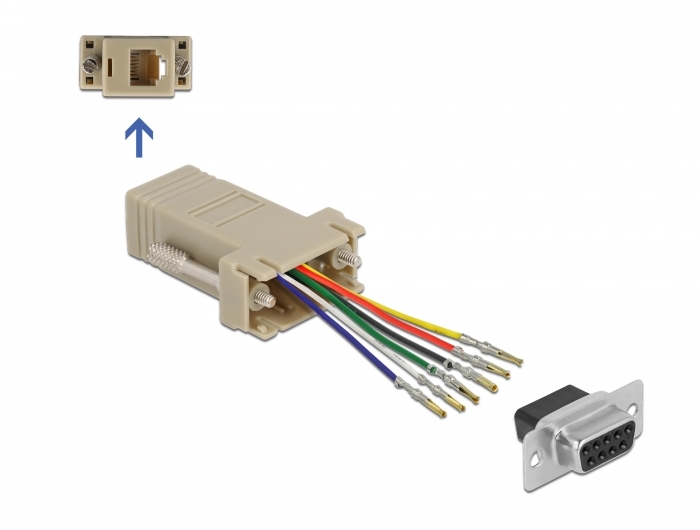

This adapter by Delock expands a serial D-Sub 9 interface via an ISDN, telephone or RJ12 cable. The D-Sub 9 interface can be assigned individually and flexibly. The contacts of the adapter can be inserted into the D-Sub 9 housing according to the desired requirements. With a slight click, the sockets snap into place and provide reliable contact.
System requirements:
• A free D-Sub 9 pin male
Specification:
• Connectors:
  1 x serial D-Sub 9 pin female
  1 x RJ12 jack
• RJ12 interface assigned with 6 pins, serial interface individually assignable
• Serial female port with screws
• Colour: grey
• Dimensions (LxWxH): ca. 52 x 34 x 16 mm
Package content:
• Adapter
Data sheet:
http://www.delock.de/produkt/66759/pdf.html?sprache=en
