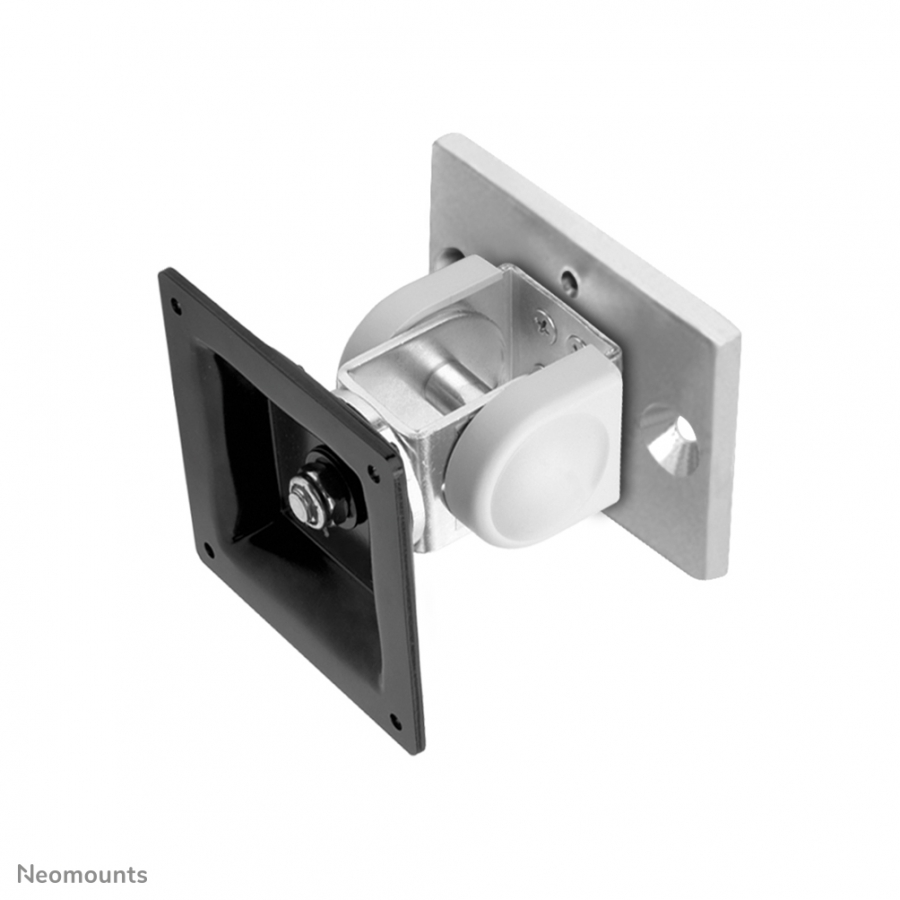

Neomounts by Newstar WAH 10"-30" 1TFT 1Gelenk grau Max.8KG

NEOMOUNTS BY NEWSTAR

FPMA-DTBW100

Jauns

The Neomounts by Newstar toolbar mount, model FPMA-DTBW100 is a tilt- and rotatable mount for flat screens up to 30". This mount is a great choice to use in combination with Neomounts by Newstars' toolbar model FPMA-DTB100, FPMA-DTB200 or FPMA-WTB100.Neomounts by Newstar's versatile tilt (180°) and rotate (270°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Depth 8 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.FPMA-DTBW100 has one pivot point and is suitable for screens up to 30" (76 cm). The weight capacity of this mount is 8 kg each screen. The toolbar mount is suitable for screens that meet VESA hole pattern 75x75 and 100x100 mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.All installation material is included with the product.

Maximum weight capacity8 kg
Maximum screen size76.2 cm (30")
Mounting typeDesk
Minimum screen size25.4 cm (10")
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Number of displays supported1
MountingBolt-through
Distance to the wall (min)8 cm
Distance to the wall (max)8 cm
Tilt angle range-90 - 90°
Angle of rotation270°
Product colourGrey
Depth80 mm
Package width130 mm
Package depth130 mm
Package height110 mm
Master (outer) case width280 mm
Master (outer) case length270 mm
Master (outer) case height350 mm
Master (outer) case gross weight15.6 kg
Products per master (outer) case12 pc(s)
Master (outer) case net weight15 kg
Harmonized System (HS) code7326909890
Products per pallet (EU)384 pc(s)
Country of originTaiwan
Package net weight1.1 kg
