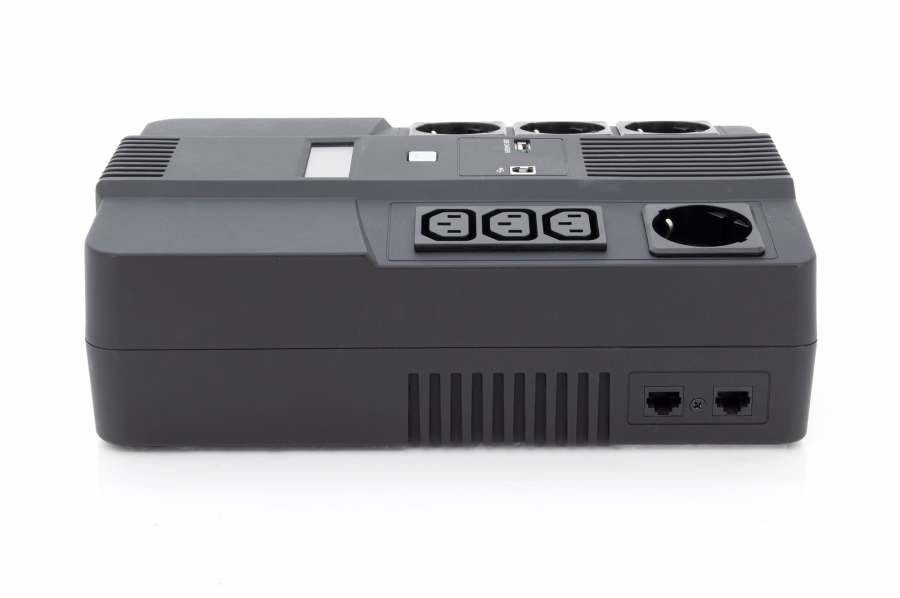

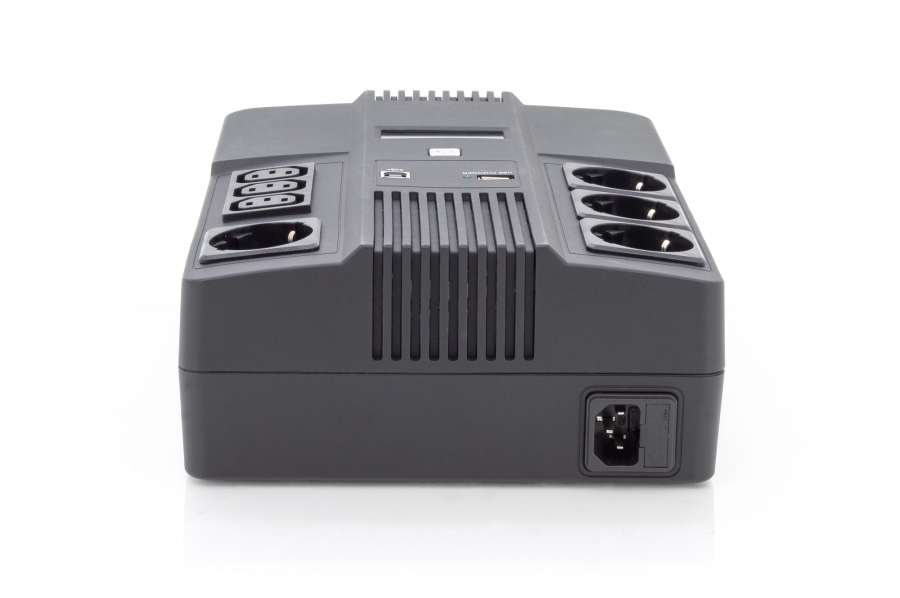

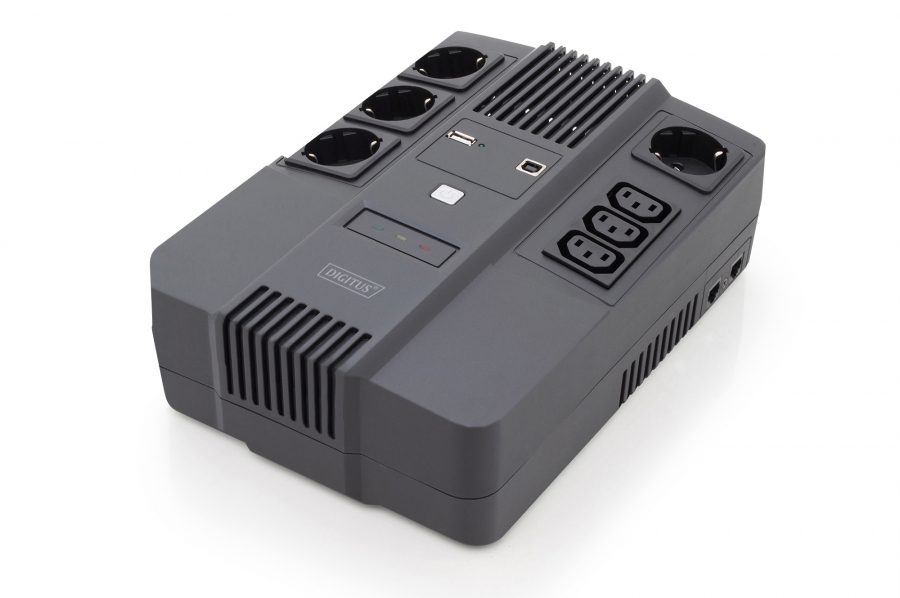

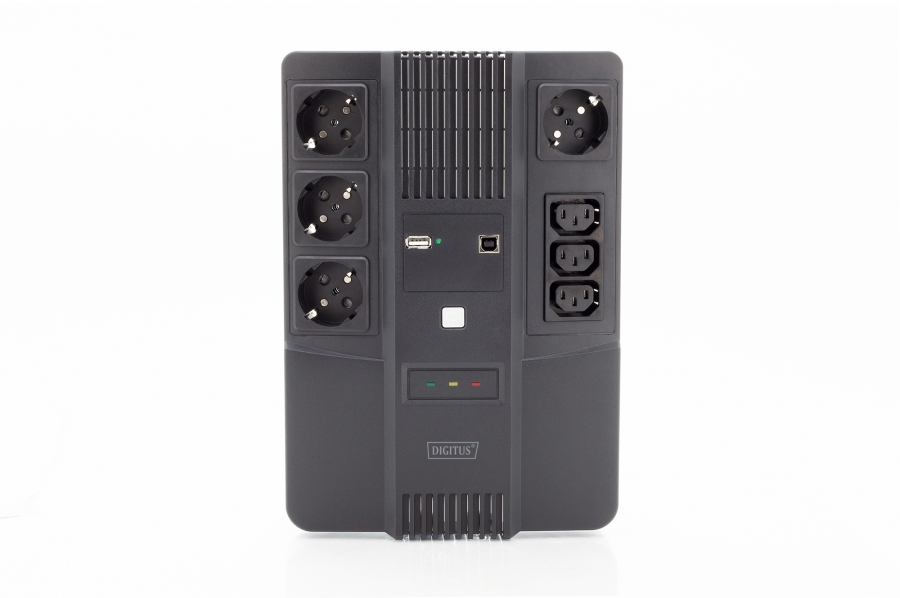

Digitus All-in-One UPS, 600VA/360W, LED

Digitus

DN-170110

Jauns

All-in-One UPS, 600VA/360W, LED 12V/7Ah x1, 4x CEE 7/7,3x IEC C13, USB, RJ45

All-in-one: Reliable protection from data loss and power failure, surge damages to your connected devices

Microprocessor control unit guarantees high reliability
Line interactive with AVR boost and buck automatic voltage regulation
Saves space: Also suitable for wall mounting
Integrated charger for mobile devices (USB)
Auto restart: Automatically switches off when the battery has discharged, automatically switches on when the network connection is supplied with power again
Auto charging: Automatic charging function when turned off

The line interactive UPS models offer protection against power failure, surge damages, data loss and much more. The line interactive series stands out for its user-friendly operation, advanced performance level and security through an integrated microprocessor control unit. Protect yourself against data loss and damage to your home and office devices. Preserve your devices with the AVR function that always automatically provides the right voltage and prevents overvoltage and undervoltage. This UPS series is toped off with extra security features, overload protection, discharge protection and overcharge protection as well as a cold start function and energy saving function. With the USV system, data loss and damages are a thing of the past.

Installation: Desktop
Plug: IEC 60320 C14 inlet
Power: 600VA – 1000VA
Technology: Line-interactive
4x shockproof sockets to connect your devices
3x IEC C13 sockets to connect monitors, for example
1x USB Type-A socket to charge mobile devices with 5V/2A max.
1x USB Type-B socket for software communication
1x RJ45 input / output for surge protection for your Internet access + software communication
LED indicator for the following functions: Supply via mains voltage / supply via battery voltage / error message
Acoustic error message for the following events: Power failure (10 sec.) / Weak battery (1 sec.) / Overload (0.5 sec.) / Error (continuous tone)
Protection functions: Discharge / overcharge / overload
Changeover time if power fails: 2 – 6 ms
Automatic restart while voltage is restored
Software for controlling and monitoring connected devices / UPS functions
Capacity: 600 VA / 360 W
Input voltage: 220 – 240 V/AC
Input voltage tolerance: 162 – 290 V/AC
Output voltage regulation: +/- 10%
Frequency range: 50 to 60 Hz (+/- 10%)
Waveform: Simulated sine wave
Charging Time: 6 – 8 hours (0 – 90% charge)
Noise level: <40 dB
USB charging socket type A: 5V/2A max.
Operation temperature: 0 ~ 40°C
Operating humidity: 0 – 90 % (non-condensing)
Dimensions (L x W x H): 9 x 20,2 x 28,5cm
Weight: 4.5 kg

Package content:
1x All-in-one UPS, 600 VA / 360 W
1x power plug
1x manual

Platums(cm)23.8
Grums(cm)35.2
Augstums(cm)12.6
Svars(kg)5.25
Tilpums(cm3)10555.8
Izcelsmes valstsCN

UPS lineinteractive
