Delock Cable USB 2.0 Type-A male USB 2.0 Type-A female panel-mount 1 m

DELOCK

85106

Jauns

This cable enables you to extend a USB 2.0 connection and can be used to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. This can be used to install an USB connector on an easily accessible position.

More details

Description:
This cable enables you to extend a USB 2.0 connection and can be used to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. This can be used to install an USB connector on an easily accessible position.

Specification:
• Connector:
USB 2.0 Type-A male >
USB 2.0 Type-A female with screw nuts for installation
• Screw type: #4-40 UNC

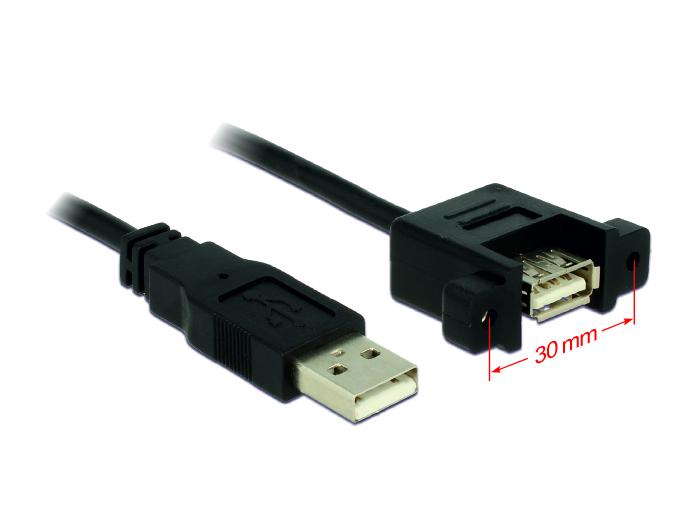

• Mounting hole ca. 15 x 8 mm, screw hole pitch ca. 30 mm

• Data transfer rate up to 480 Mbps
• Cable gauge: 28 AWG data line
24 AWG power line
• Cable diameter: ca. 4.5 mm
• Colour: black
• Length incl. connector: ca. 1 m

System requirements:
• A free USB port

Package content:
• USB panel-mount cable
• 2 screws

USB 2.0
