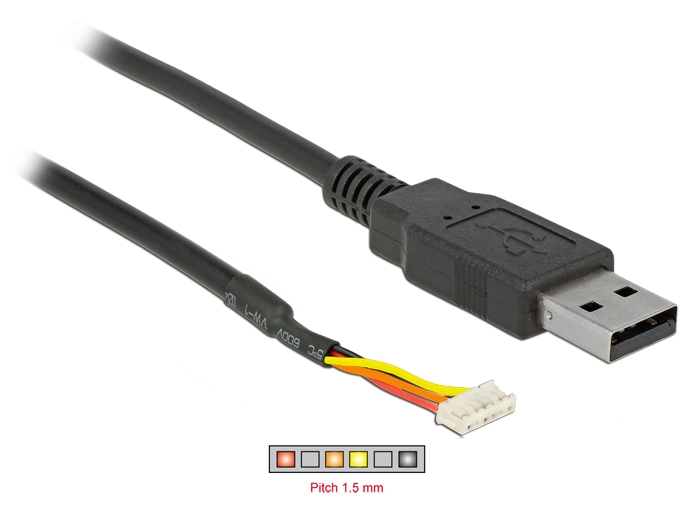

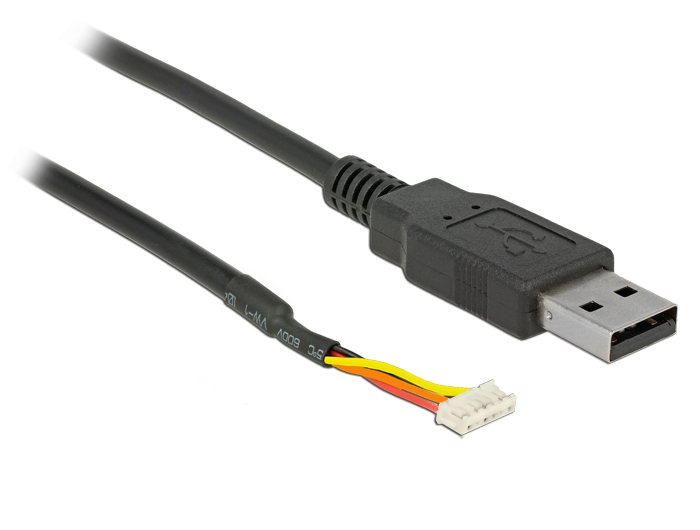

Delock Cable USB 2.0 Type-A male > Serial TTL crimp socket 6 pin (3.3 V) 2.2 m

Kods 84957

Condition: Jauns

Vairāk informācijas

This USB TTL converter by Delock is, due to its wide temperature range, most suitable for industrial applications. It can be used for connection to e.g. level shifters, interface controllers, micro controllers etc.

System requirements:
• Windows CE 4.2, 5.0, 6.0/Windows Mobile 2003/ XP/XP-64/Vista/Vista-64/7/7-64/8.1/
8.1-64/10/10-64, Linux ex Kernel 2.6, Mac OS 10.5/10.6
• PC or laptop with a free USB Type-A port

Specification:
• Connectors:
1 x USB 2.0 Type-A male >
1 x Serial TTL crimp socket 6 pin pitch 1.5 mm

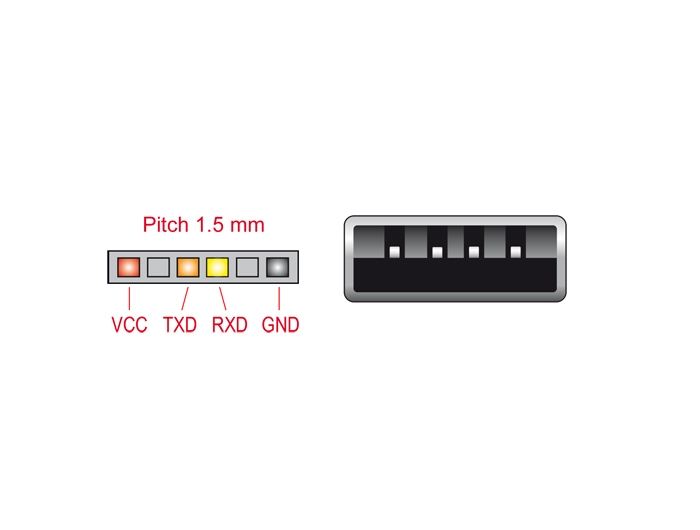

• Pin assignment:
1. VCC
3. TXD
4. RXD
6. GND
• Chipset: FTDI FT232R
• Cable gauge: 26 AWG
• Cable diameter: ca. 5 mm
• Operating temperature: -20 °C ~ 80 °C
• No-load current: 70 uA
• Converter: 5 V / 15 mA (VCC, GND)
• Compatible to UHCI / OHCI / EHCI controller
• VTTL 3.3 V (data) / 4 mA or HighLevel 12 mA
• Data rate 300 baud - 3 Megabaud
• Databits: 7 or 8
• Stoppbits: 1 or 2
• Parity: none, space, even, odd, mark
• Flow control: software XON / XOFF or hardware RTS / CTS
• FIFO:
128 Byte - RX
256 Byte - TX

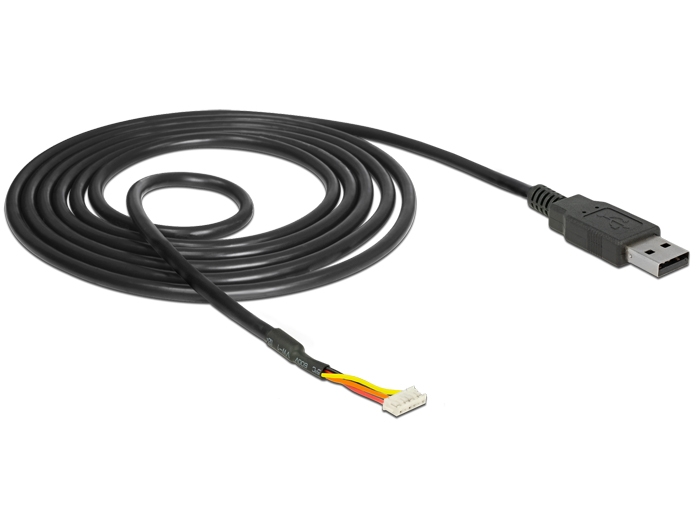

• Length without connectors: ca. 2.2 m

Package content:
• USB TTL cable

Data sheet:
http://www.delock.de/produkt/84957/pdf.html?sprache=en
