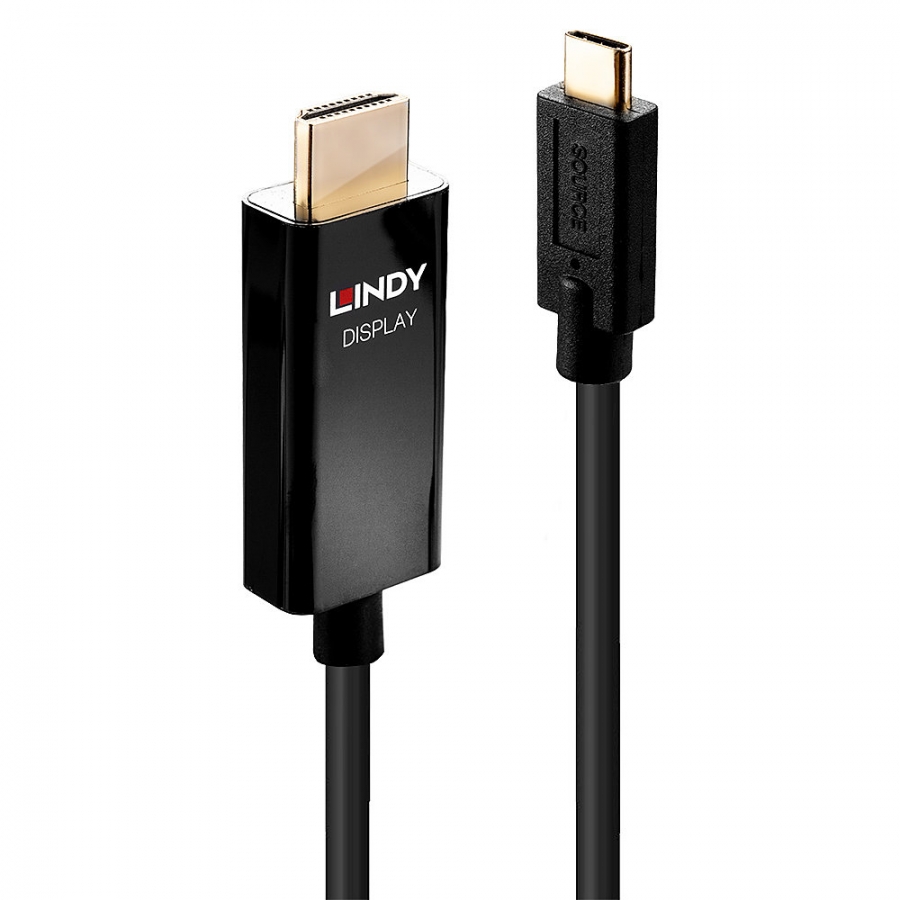

Lindy 1m USB Type C to HDMI 4K60 Adapter Cable with HDR

Lindy

LIN43291

Jauns

Connectors

  • Connector A: USB Type C Male
  • Connector B: HDMI Type A Male
  • Housing Material: Type C: PVC, HDMI: ABS
  • Connector Plating: Gold plating
  • Pin Construction: Phosphor Bronze
  • Pin Plating: Gold plating
  • Dimensions (approx.) WxDxH:

A: 12.6x24x6.6mm (0.5x0.94x0.26in)

B: 22x45.1x12mm (0.87x1.77x0.47in)



Cable construction

  • Length: 1m (3.28ft)
  • Standard: HDMI 2.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 5.0mm (0.2in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 32AWG
  • Shielding: AL/MG Braid 85%



Specifications

  • Chipset: ITE6563
  • Supported Bandwidth: 21.6Gbps
  • Power Delivery: -
  • Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
  • Nominal Attenuation: 0.1MHz-6MHz<12DB
  • Minimum Bend Radius: 47mm (1.85in)
  • Operating Temperature: 0°C - 35°C (32°F - 95°F)
  • Storage Temperature: 0°C - 45°C (32°F - 113°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & UL



Purchasing information

  • No.: 43291
  • EAN: 4002888432917



This product is also available in other lengths:

  • 43291 - 1m (3.28ft)
  • 43292 - 2m (6.56ft)
  • 43293 - 3m (9.84ft)
