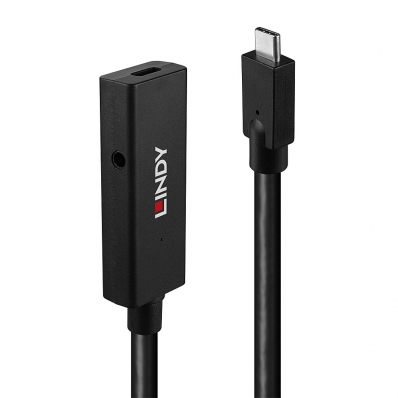

Lindy 5m USB 3.2 Gen 2 C/C Active Extension

Lindy

LIN43364

Jauns

Connectors

  • Connector A: USB Type C Male
  • Connector B: USB Type C Female
  • Power: 3.5/1.35mm DC Connector
  • Housing Material: ABS
  • Connector Plating: Nickel
  • Pin Construction: Brass
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH:
    • USB C Male: 12.5x38x7.65mm (0.49x1.5x0.3in)
    • USB C Female (housing): 23.2x62x12.4mm (0.91x2.44x0.49in)



Cable Construction

  • Length:  5m (16.4ft)
  • Standard: USB 3.2 / 3.1 Gen 2
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 7mm (0.28in)
  • Jacket Material: ABS, PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 28AWG+25AWG+22AWG
  • Shielding: Aluminium foil and baid



Specifications

  • Supported Bandwidth: 10Gbps
  • Nominal Attenuation: -
  • Minimum Bend Radius: 70mm (2.76in)
  • Maximum Tensile Load: 60P
  • Operating Temperature: 0°C to 50°C (32°F - 122°F)
  • Storage Temperature: -10°C to 60°C (14°F - 140°F)
  • Transmission Medium: Twisted Pair
  • Transmission Technology: USB 3.2 / 3.1 Gen 1



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 236x255mm (9.29x10.04in)
  • Net Weight: 0.32kg (0.71lb)
  • Gross Weight: 0.35kg (0.77lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH, CP65



Packaging Content

  • USB 3.2 C/C Active Extension 5m
  • Lindy manual



Purchasing Information

  • No.: 43364
  • EAN: 4002888433648
