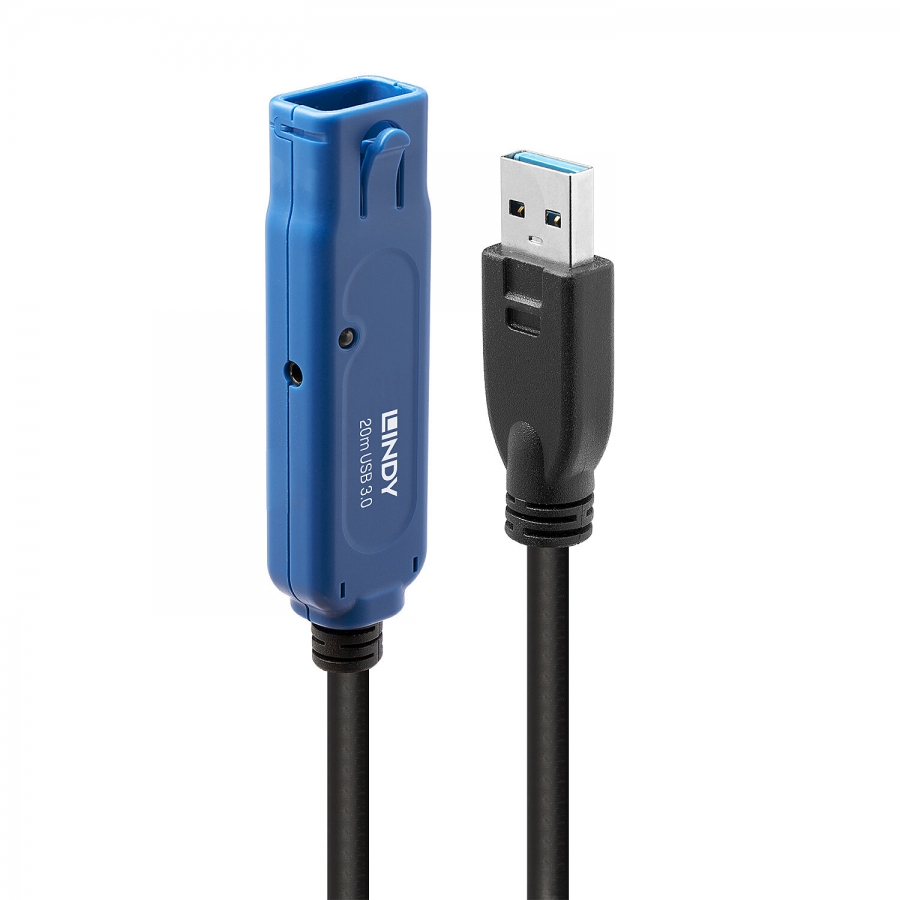

Lindy 20m USB 3.0 Active Extension Pro

Lindy

LIN43361

Jauns

Connectors

  • Connector A: USB Type A Male
  • Connector B: USB Type A Female
  • Power: 2.5/0.7mm DC Connector
  • Housing Material: Plastic
  • Connector Plating: Nickel
  • Pin Construction: Brass
  • Pin Plating: Gold Flash
  • Dimensions (approx.) WxDxH:
    • USB A Male: 15x49x8mm (0.59x1.93x0.31in)
    • USB A Female: 20x80x13mm (0.79x3.15x0.51in)



Cable Construction

  • Length: 20m (65.62ft)
  • Standard: USB 3.1 Gen 1 / 3.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 7mm +/- 0.15mm (0.28in +/- 0.01in)
  • Jacket Material: Half matt PVC low toxic
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 24/24/20AWG
  • Shielding: AL Mylar and braid



Specifications

  • Supported Bandwidth: 5 Gbps
  • Nominal Attenuation:
    • 0.064MHz - <0.08dB
    • 0.256MHz - <0.11dB
    • 0.512MHz - <0.13dB
    • 0.772MHz - <0.15dB
    • 1.0MHz - <0.20dB
    • 4MHz - <0.39dB
    • 8MHz - <0.57dB
    • 12MHz - <0.76dB
    • 24MHz - <0.95dB
    • 48MHz - <1.35dB
    • 96MHz - <1.90dB
    • 200MHz - <3.20dB
    • 400MHz - <5.80dB
  • Minimum Bend Radius: 36mm (1.42in)
  • Maximum Tensile Load: -
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Transmission Medium: Twisted Pair
  • Transmission Technology: USB 3.1 Gen 1 /  3.0



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 230x198x120mm (9.06x7.8x4.72in)
  • Net Weight: 1.6kg (3.53lb)
  • Gross Weight: 1.82kg (4.01lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Packaging Content

  • USB 3.0 Active Extension Pro 20m
  • Power Adapter Cable Nr. 70265
  • Lindy Manual



Purchasing Information

  • No.: 43361
  • EAN: 4002888433617



This product is also available in other lengths

  • 43158 - 8m (26.25ft)
  • 43157 - 10m (32.81ft)
  • 43159 - 10m (32.81ft) with hub
  • 43229 - 15m (49.21ft)
  • 43362 - 30m (98.42ft)
