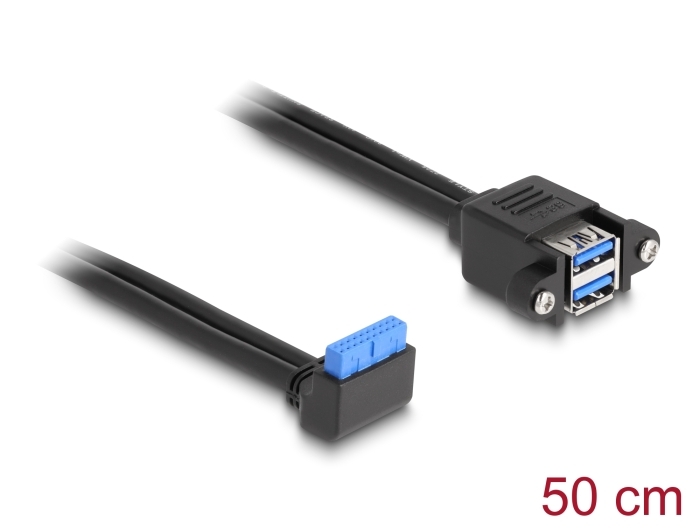

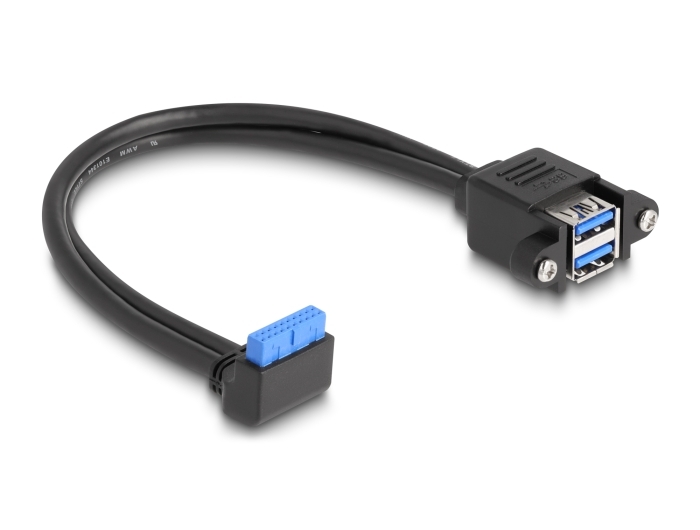

Delock Cable USB 5 Gbps pin header female 90° angled to 2 x USB 5 Gbps Type-A female for built-in 50 cm

Kods 83007

Condition: Jauns

Vairāk informācijas

This cable by Delock can be used for internal connection to a free pin header male on the motherboard. It expands the system by two additional USB 5 Gbps Type-A female ports which can be fixed by using the two available screw nuts. The cable is most suitable for self-designed computer systems.

Special features
• With inner metal thread

System requirements:
• A free USB 5 Gbps pin header

Specification:
• Connectors:
  1 x 19 pin USB 5 Gbps pin header female 90° angled
  2 x USB 5 Gbps Type-A female with screws for built-in
• Data transfer rate up to 5 Gbps
• Cable gauge:
  28 AWG data line
  24 AWG power line
• Cable diameter: ca. 5.8 mm
• Cable jacket material: PVC
• Colour: black
• Length: ca. 50 cm

Package content:
• Cable

Data sheet:
http://www.delock.de/produkt/83007/pdf.html?sprache=en
