Delock Connector eSATApd female eSATA + USB 2.0 5 V 12 V

Description

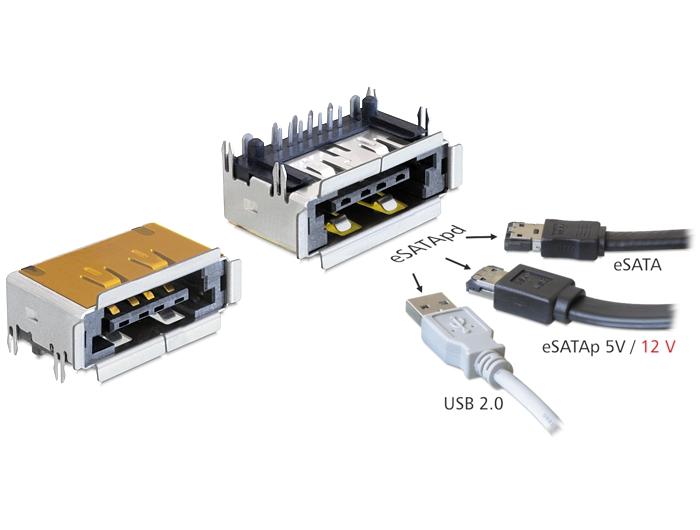

This eSATApd connector by Delock can be soldered on your PCB and enables you to connect different devices e.g. 2.5 or 3.5 HDD. The sideways goldplated connector support a voltage up to 12 V. Therefore you do not require an additional power supply. Due to the multifunctional Power Over eSATA interface, you have 3 options for connection:

1. Power Over eSATA port (5 V / 12 V)
2. USB port and
3. eSATA port + USB port for power supply

Specification

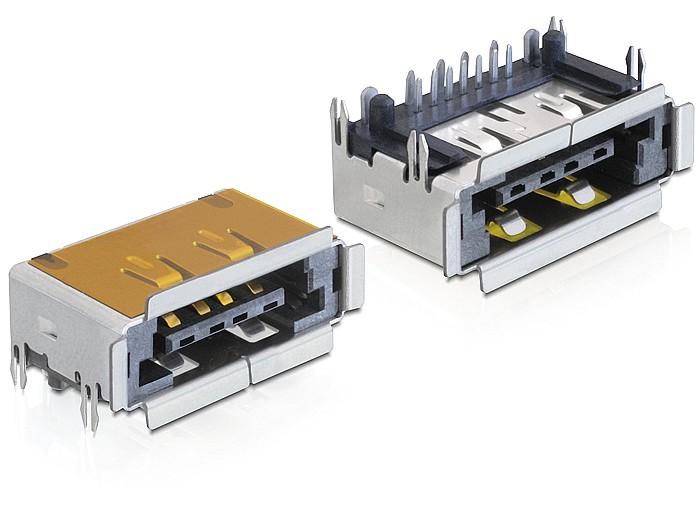

• Connector: eSATA + USB 2.0 female > 11 pin DIP type
• THT PCB assembly
• USB solder pins: Ã 0.6 mm
• eSATA solder pins: Ã 0.44 mm, pitch: 1.27 mm
• Housing material: thermoplastic high temp UL 94-V0
• Operating temperature: -40 to +85 °C
• Contact area (eSATA + USB): gold-plated
• Dimension (LxWxH): 18.7 mm x 11.35 mm 8.68 mm

System requirement
• PCB with eSATA + USB 2.0 through holes

Package content
• Connector

Package
• Delock poly bag
