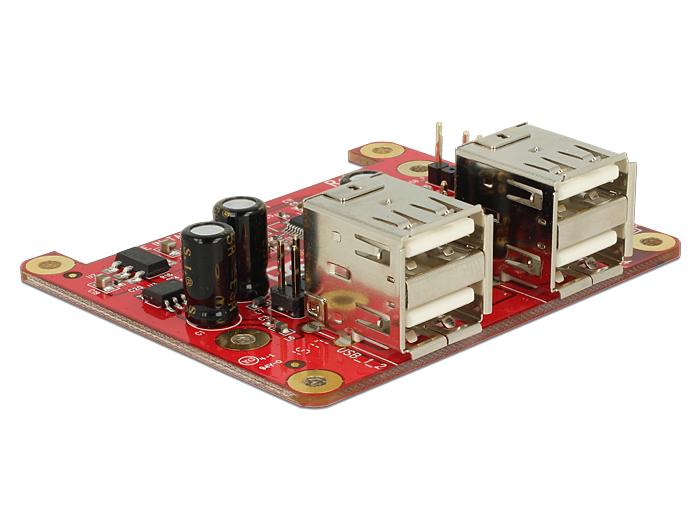

Delock Hub Raspberry Pi USB Micro-B female USB pin header 4 x USB type A female

DELOCK

62650

Jauns

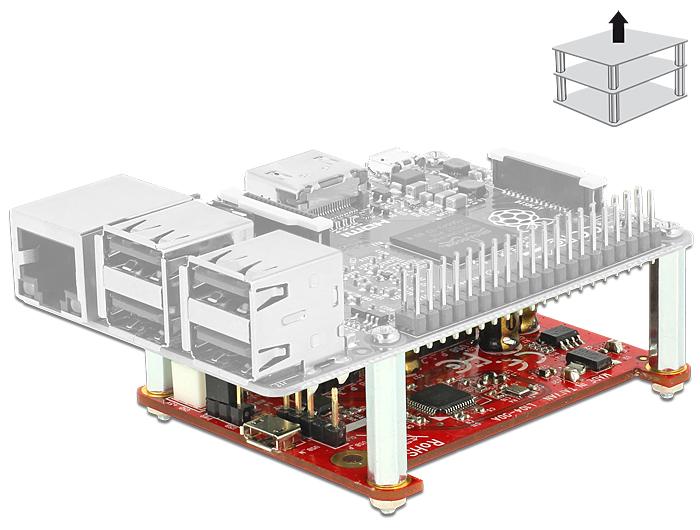

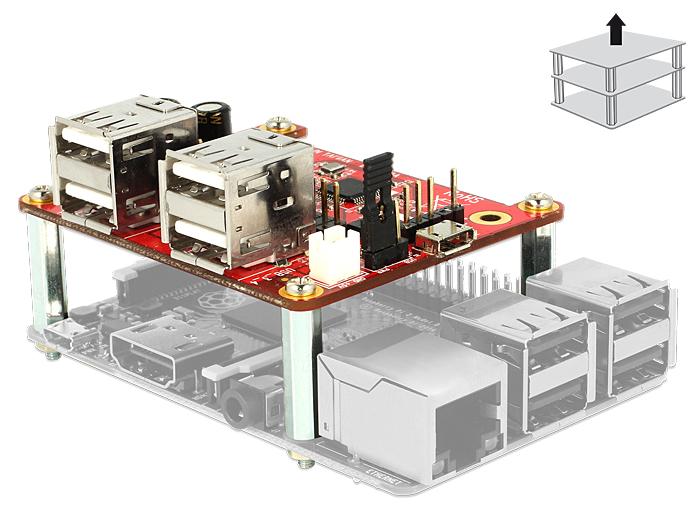

This hub by Delock enables you to expand your Raspberry Pi via the Micro USB port or the USB pin header. Thus you will have four USB A ports or two 9 pin USB pin header.

More details

Description:
This hub by Delock enables you to expand your Raspberry Pi via the Micro USB port or the USB pin header. Thus you will have four USB A ports or two 9 pin USB pin header.

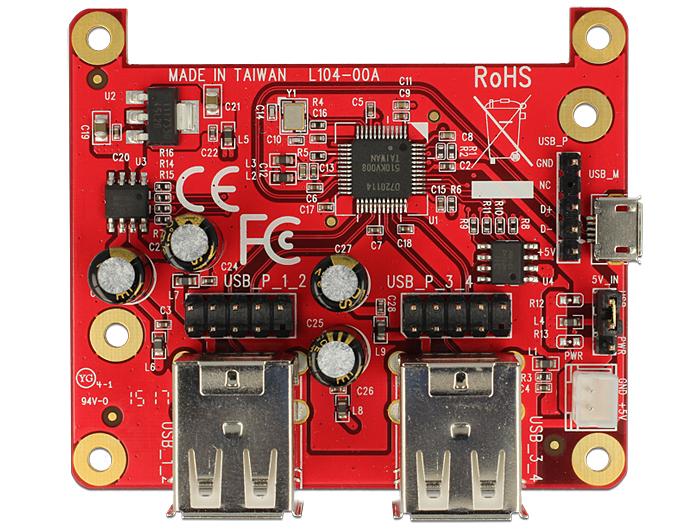

Specification:
• Connector:
1 x USB 2.0 type Micro-B female
1 x 5 pin USB 2.0 pin header (4 pins connected)
1 x 2 pin power connector
4 x USB 2.0 type A female
2 x 9 pin USB 2.0 pin header
• Chipset: Renesas D720114
• Data transfer rate up to 480 Mb/s
• Compliant with OHCI 1.0a and EHCI 0.95
• Jumper for setting the power supply via USB or 2 pin power connector
• Dimensions (LxWxH): ca. 65 x 56 x 18 mm
• OS independent, no driver installation necessary

System requirements:
• One free USB port
• USB connection cables

Package content:

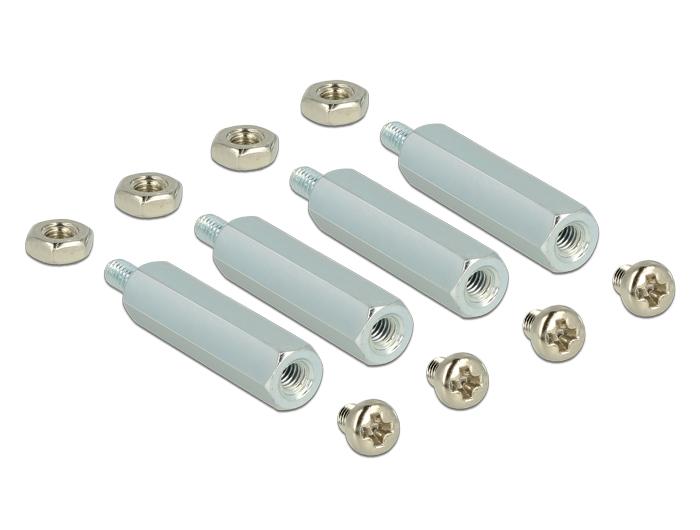

• Hub
• 4 x screw
• 4 x nut
• 4 x standoff
