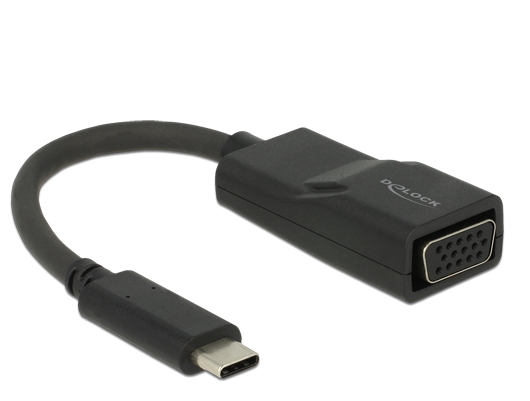

Delock Adapter USB Type-C™ male > VGA female (DP Alt Mode)

Kods 62796

Condition: Jauns

Vairāk informācijas

This Delock adapter is suitable for the connection of a VGA monitor to a computer with USB-C™ interface and Displayport alternate mode support. Thus, the adapter can be connected to different laptops like Macbook, Chromebook and similar. In addition, the adapter can also operate on a Thunderbolt™ 3 interface.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Windows 10 Mobile, Mac OS 10.11.4
• PC or laptop with a free USB Type-C™ port and Displayport alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port

Specification:
• Connector:
1 x USB Type-C™ male >
1 x VGA 15 pin female
• Chipset: Analogix ANX9847
• Displayport 1.2 specification
• Signal direction: USB Type-C™ input > VGA output
• Resolution up to WQXGA 2560 x 1600 @ 60 Hz (depending on the system and the
connected hardware)
• Transfer of digital video signals
• USB bus powered
• Plug & Play

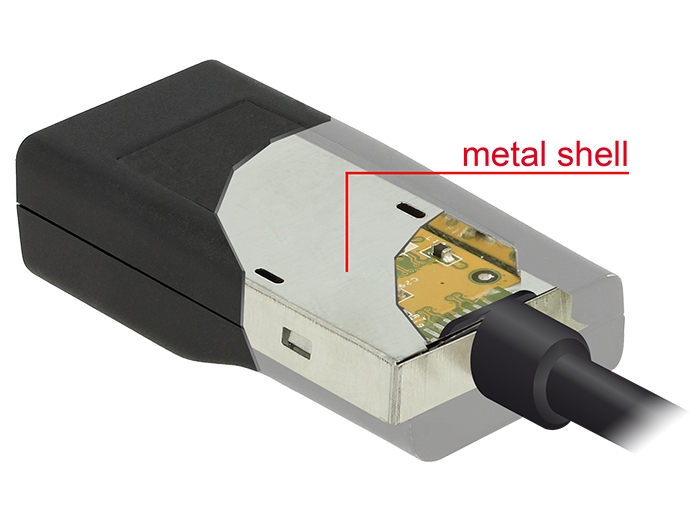

• Plastic housing with inner metal shell
• Cable length without connector: ca. 8 cm
• Colour: black

Package content:
• USB-C™ to VGA Adapter

Data sheet:
http://www.delock.de/produkt/62796/pdf.html?sprache=en
