Delock 2.5″ Converter USB 3.1 Gen 2 USB Type-C™ female > M.2 + mSATA with Enclosure 9.5 mm

Kods 62986

Condition: Jauns

Vairāk informācijas

This Delock converter enables the connection of an M.2 SSD in 2280, 2260, 2242 and 2230 format and an mSATA SSD in half size or full size format. Both SSDs can be used simultaneously. The converter can be installed into the system through the USB interface.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.6
• A free USB interface

Specification:

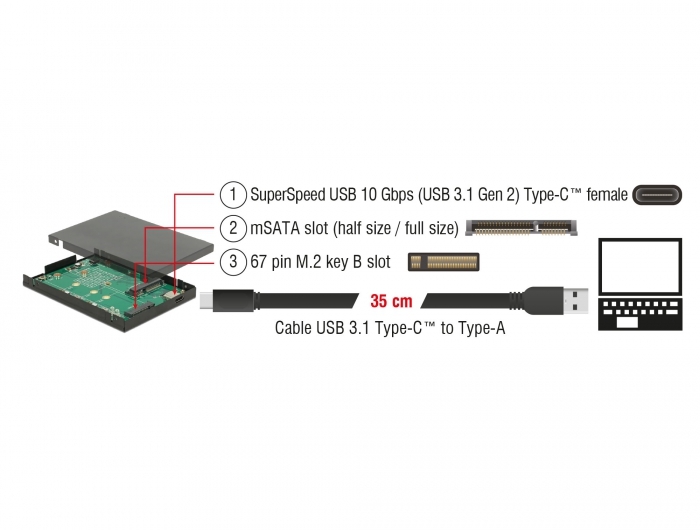

• Connectors:
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ female >
1 x 67 pin M.2 key B slot
1 x mSATA slot (half size / full size)
• Chipset: Asmedia ASM1352R
• Interface: SATA
• Form factor: 2.5″
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M
based on SATA
• Maximum height of the components on the module: 1.35 mm, application of double-
sided assembled modules supported
• LED indicator
• Maximum power for modules: 3 A
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH): ca. 100.0 x 70.0 x 9.5 mm

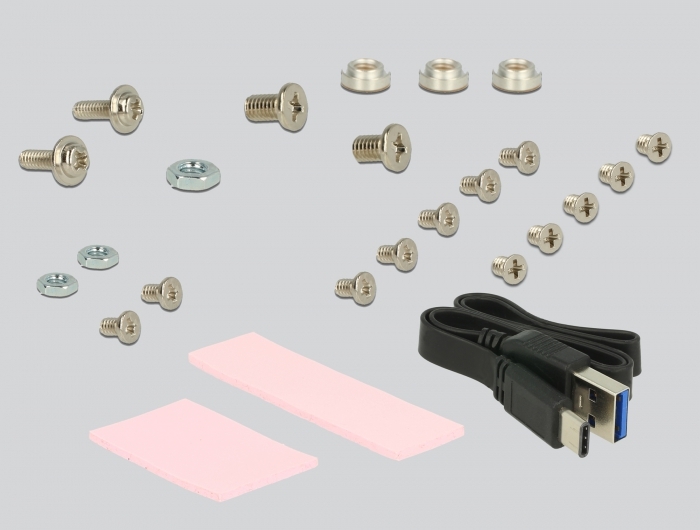

Package content:
• Converter
• 2.5″ enclosure
• Fixing screws for M.2 module, mSATA module and enclosure
• Cable USB-C™ male to USB Type-A male, length ca. 35 cm
• Cooling pad for M.2 and mSATA module
• User manual
