Delock Adapter USB 2.0 Sound High-Res Audio 24 bit / 96 kHz

DELOCK

65899

Jauns

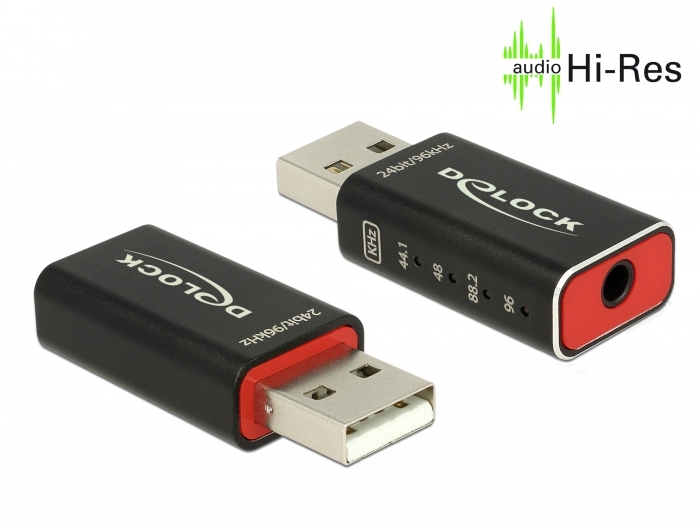

The USB sound adapter by Delock expands a laptop or a tablet with an additional High-Res audio sound card. This allows devices such as speakers, headphones etc. to be connected. Power-intensive headphones also work with the adapter. By using an optional OTG Micro USB male or USB Type-C™ male to USB-A female adapter the sound adapter can be connected to an Android device.
Delock offers the suitable adapters for this purpose: Delock 65549 or Delock 65634
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, ex Linux Kernel 4.x.x, ex Mac OS 10.9.5,
  Android ex 4.4
• Laptop or tablet with a free USB Type-A port
Specification:
• Connectors:
  1 x USB 2.0 Type-A male >
  1 x 3.5 mm 3 pin stereo jack female
• Chipset: Microchip PIC32MX120F + Nuvoton NAU88L25YG
• Supported sample rates: 44.1 / 48 / 88.2 / 96 kHz
  (depending on the system and the connected devices)
• LED indicator for sampling rates
• USB audio device specification 1.0
• High-Res audio support
• Audio replay up to 24 Bit / 96 kHz
• Signal noise ratio (SNR): ca. 110 dB, 20 Hz - 20 kHz
• Frequency response: 20 Hz - 20 kHz +/- 0.5 dB
• Total Harmonic Distortion + Noise (THD+N): 0.003 % @ 1 mW
• Headphone-Drive Ability: 16 - 300 Ohm
• USB bus powered
• Plug & Play
• Dimensions (LxWxH): ca. 41.8 x 17.2 x 9.8 mm
Package content:
• USB sound adapter
• User manual


Data sheet:
http://www.delock.de/produkt/65899/pdf.html?sprache=en
