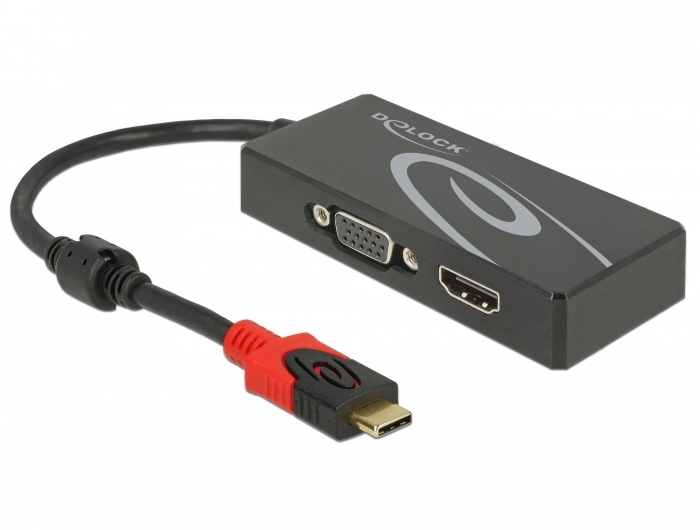

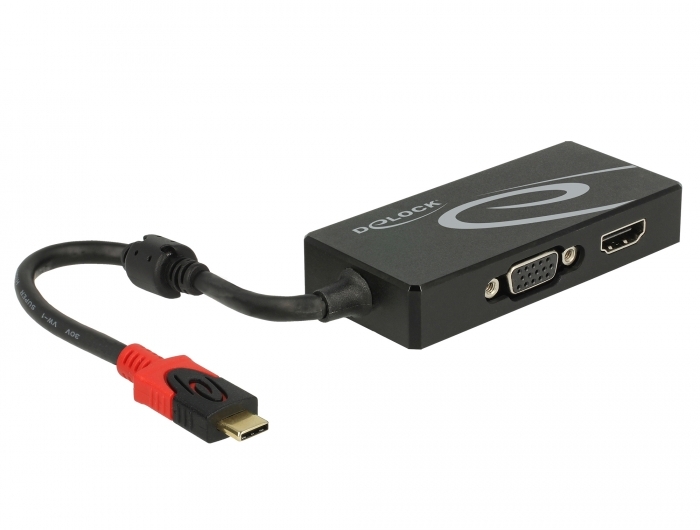

Delock USB Type-C™ Splitter (DP Alt Mode) > 1 x HDMI + 1 x VGA out

Kods 87730

Condition: Jauns

Vairāk informācijas

This splitter by Delock is suitable for the connection of a VGA monitor and an HDMI monitor to a computer with USB-C™ interface and DisplayPort alternate mode support. Two monitors can be operated simultaneously at the outputs, the same image is displayed on all ports.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Windows 10 Mobile, Chrome OS,
ex Linux Kernel 4.9, ex Mac OS 10.12
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port

Specification:
• Connectors:
  Input:
1 x USB Type-C™ male
  Output:
1 x HDMI-A 19 pin female
    1 x VGA 15 pin female
• VGA port with nuts
• DisplayPort 1.2 specification
• HDMI:
  Resolution up to 2560 x 1440 @ 60 Hz / 3840 x 2160 @ 30 Hz (depending on the
system and the connected hardware)
• VGA:
  Resolution up to 1920 x 1080 @ 60 Hz (depending on the system and the connected
hardware)
• Function: Mirrored
• USB bus powered
• Cable length incl. connectors: ca. 20 cm
• Dimensions (LxWxH): ca. 87 x 40 x 16 mm

Package content:
• USB-C™ Splitter (DP Alt Mode)
• User manual

Data sheet:
http://www.delock.de/produkt/87730/pdf.html?sprache=en
