Delock Adapter USB Type-C ™ Stecker - VGA / HDMI / DVI Buchse schwarz

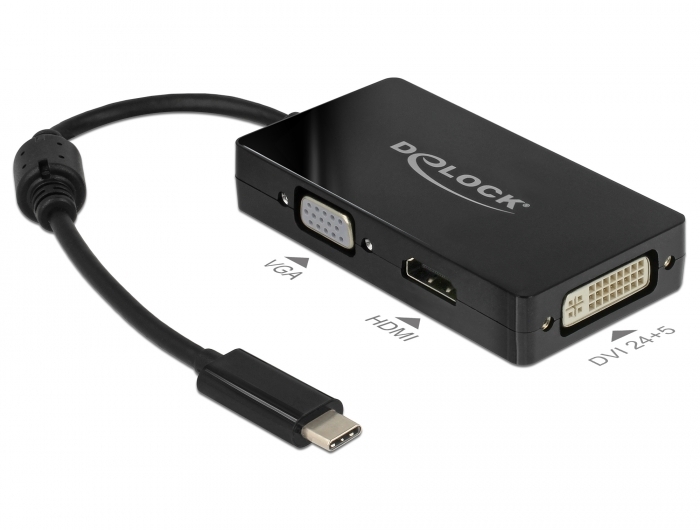

This adapter by Delock is suitable for the connection of a VGA, HDMI or DVI monitor to a computer with USB-C™ interface and DisplayPort alternate mode support. Thus, the adapter can be connected to different laptops like MacBook, Chromebook and similar. In addition, the adapter can also be operated on a Thunderbolt™ 3 interface. Only one monitor can be used on the adapter.
System requirements:
• Linux Kernel 4.6 or above
• Mac OS 10.13.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port

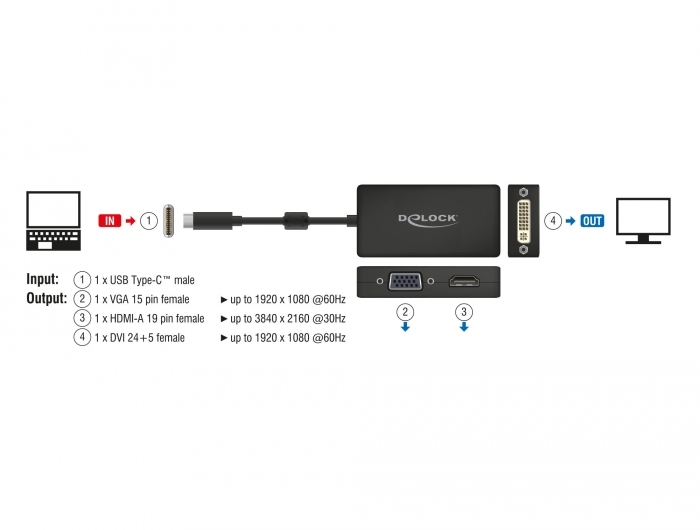

• Connectors:
  1 x USB Type-C™ male >
  1 x VGA 15 pin female
  1 x HDMI-A 19 pin female
  1 x DVI 24+1 female with nuts
• Chipset: VL100, IT6562FN, PS8222B
• High Speed HDMI specification
• DVI-D (Single Link), VGA not wired
• Only 1 monitor usable with the adapter
• Resolution:
  HDMI up to 3840 x 2160 @ 30 Hz
  (depending on the system and the connected hardware)
  DVI and VGA up to 1920 x 1080 @ 60 Hz
  (depending on the system and the connected hardware)
• Power consumption: max. 1.35 W
• Cable length without connectors: ca. 13 cm
• Colour: black
Package content:
• Adapter USB-C™ to VGA / HDMI / DVI
Data sheet:
