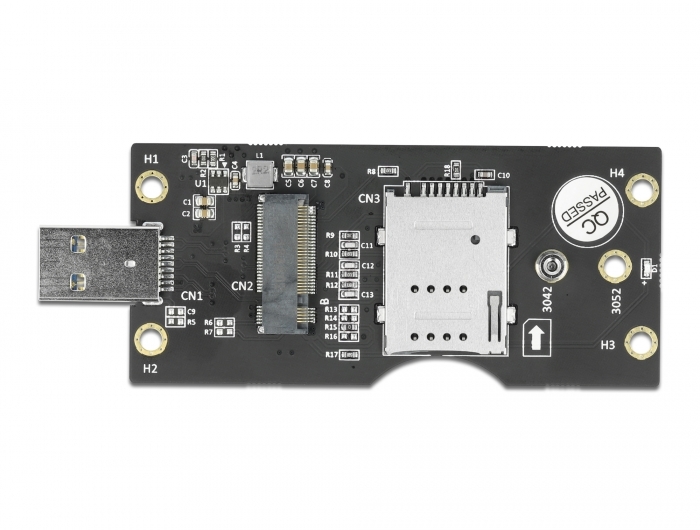

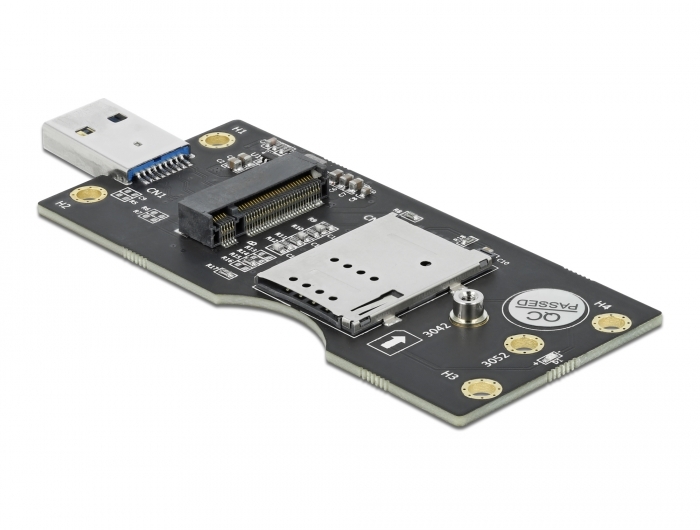

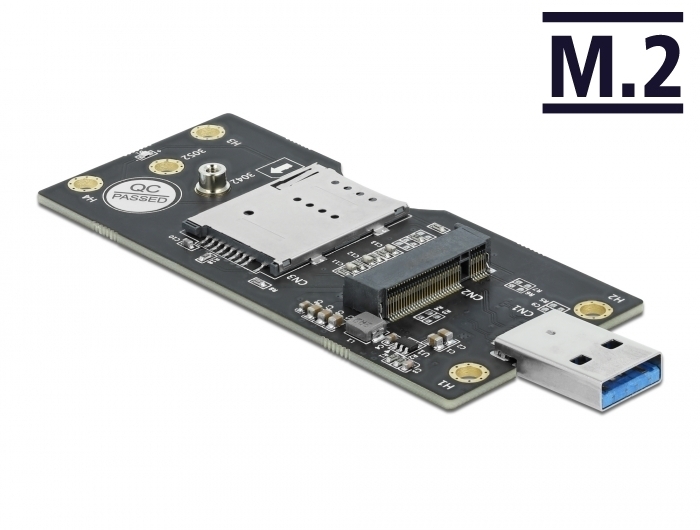

Delock USB 3.0 Converter Type-A male to M.2 Key B with SIM slot

DELOCK

63166

Jauns

This converter by Delock enables the connection of an M.2 module, e.g. GSM, GPRS, 3G, WLAN, LTE or 5G, in 2242, 2252, 3042 or 3052 format. The converter can be installed into the system through the USB interface.
System requirements:
• A free USB Type-A port
Specification:
• Connectors:
  1 x USB 3.0 Type-A male
  1 x 67 pin M.2 key B slot
  1 x SIM slot
• Interface: USB
• Supports M.2 modules in format 2242, 2252, 3042 and 3052 with key B or key B+M
  based on USB
• Maximum height of the components on the module: 1.5 mm, application of double-
  sided assembled modules supported
• Dimensions (LxWxH): ca. 93 x 38 x 6 mm
• Hot Swap, Plug & Play
• USB bus powered
Package content:
• Converter

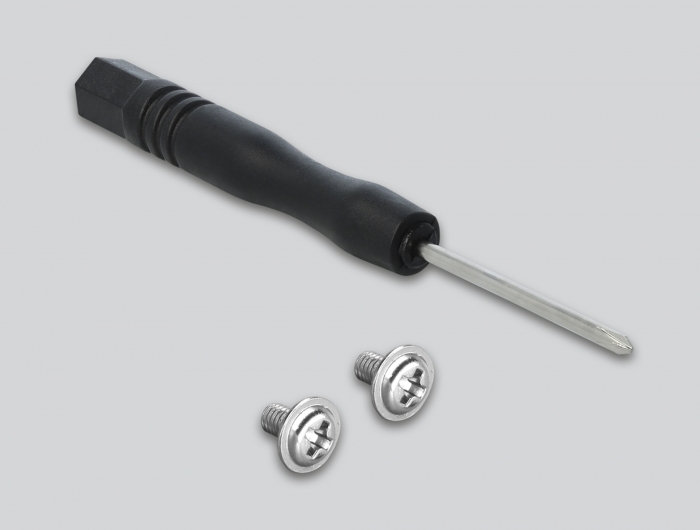

• Mounting material
• Screwdriver
• User manual
Data sheet:
http://www.delock.de/produkt/63166/pdf.html?sprache=en
