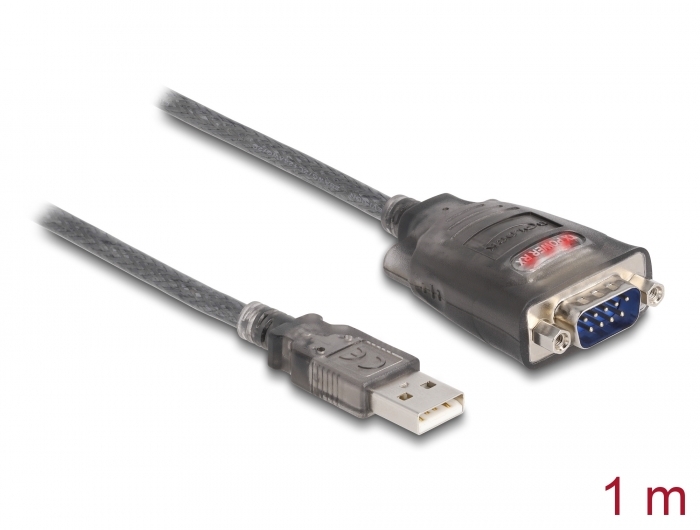

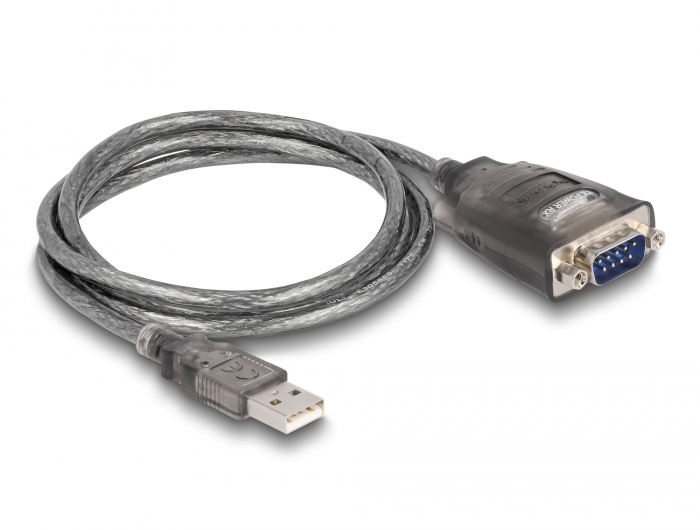

Delock Adapter USB 2.0 Type-A to 1 x Serial RS-232 D-Sub 9 pin male with nuts with 3 x LED 1 m

DELOCK

61400

Jauns

This adapter by Delock enables the connection of a serial device via a USB Type-A port.
System requirements:
• Linux Kernel 5.8.0 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2016/Windows Server 2019
• PC or laptop with a free USB Type-A port
Specification:
• Connectors:
  1 x USB 2.0 Type-A male >
  1 x serial RS-232 DB9 male with nuts
• Chipset: FTDI FT231XS
• Data transfer rate up to 460.8 Kbps
• FIFO: 512 Byte - RX
• FIFO: 512 Byte - TX
• Databits: 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
• 3 x LED indicator
• ±15 kV ESD protection for all serial signals
• Cable length without connectors: ca. 1 m
Package content:
• USB 2.0 to 1 x serial adapter
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/61400/pdf.html?sprache=en
