Delock Wireless Display USB Type-C™ Adapter Full HD - HDMI + VGA with Card Reader and Hub

DELOCK

87775

Jauns

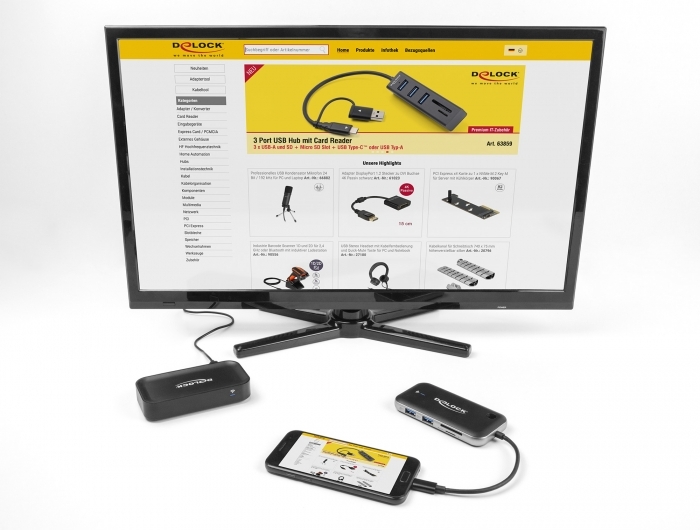

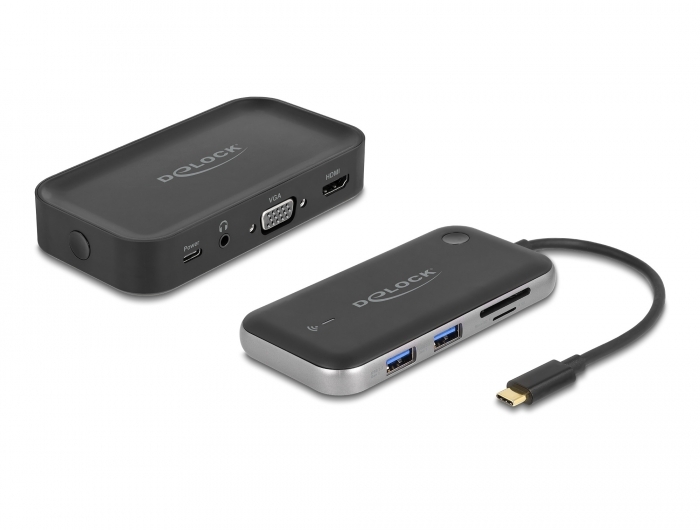

This adapter by Delock can be used to wirelessly transmit an audio and video signal in 1080p format over a range of up to 10 m. Only the transmitter has to be connected to the USB Type-C™ port of the device and the receiver via HDMI or VGA cable to a TV, projector or similar. Both video outputs can be used at the same time to display the signal on two displays at the same time.

Integrated card reader and hub
Two built-in USB Type-A ports allow the use of peripherals, an SD and a Micro SD slot allow the use of memory cards.

Easy transport

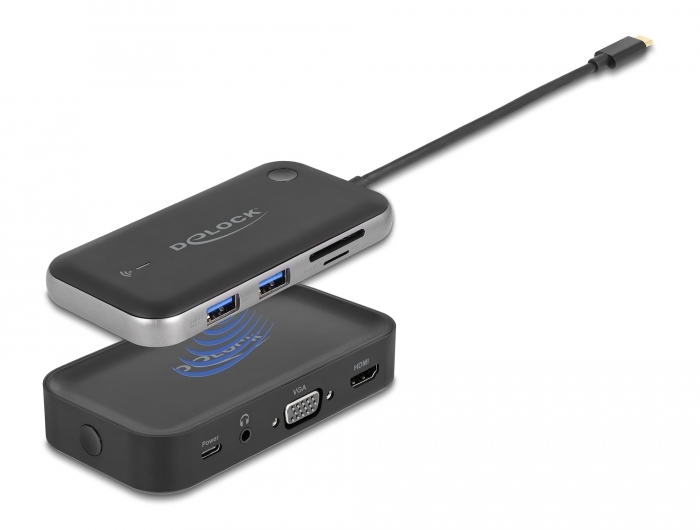

For transport, the transmitter unit can easily be inserted into the receiver unit’s deepening, where both parts are held together by a magnet.

Plug & Play
After connecting the two parts of the device, the connection is automatically established, no drivers need to be installed or settings made.
System requirements:
• Android 10.0 or above
• iPad Pro (2018)
• Linux Kernel 5.4 or above
• Mac OS 10.15.6 or above
• Surface Pro 7
• Windows 8.1/8.1-64/10/10-64
• Device with a free USB Type-C™ port and DisplayPort alternate mode or with a free
  Thunderbolt™ 3 port
• A free USB Type-A female port (power supply)
Specification:
• Connectors:

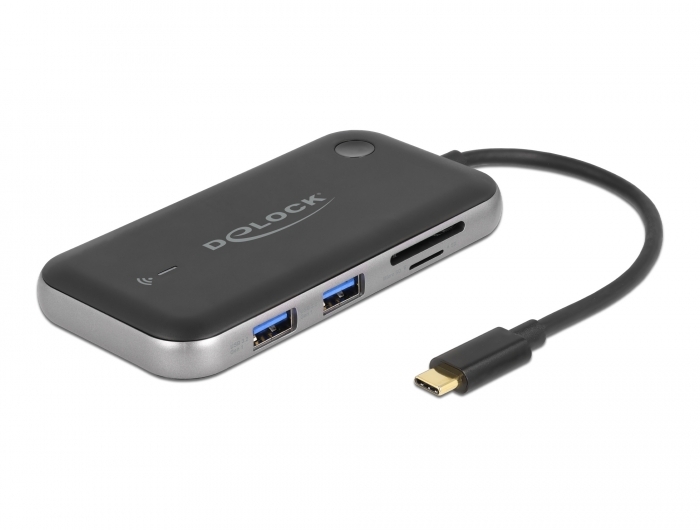

  Transmitter:
  1 x USB Type-C™ male
  2 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
  1 x SD slot
  1 x Micro SD slot
  Receiver:
  1 x HDMI-A female
  1 x VGA female
  1 x 3.5 mm 3 pin stereo jack female
  1 x USB Type-C™ female (power supply)
• Resolution:
  HDMI up to 1920 x 1080 @ 60 Hz
  VGA up to 1920 x 1080 @ 60 Hz
  (depending on the system and the connected hardware)
• Transmission of audio and video signals
• Bandwidth: 5 GHz, operating range up to 10 m
• It can be used two memory cards at the same time
• Colour: black
• Cable length: ca. 15 cm
• Dimensions transmitter (LxWxH): ca. 111 x 56 x 13 mm
• Dimensions receiver (LxWxH): ca. 115 x 61 x 22 mm
Package content:
• Transmitter
• Receiver

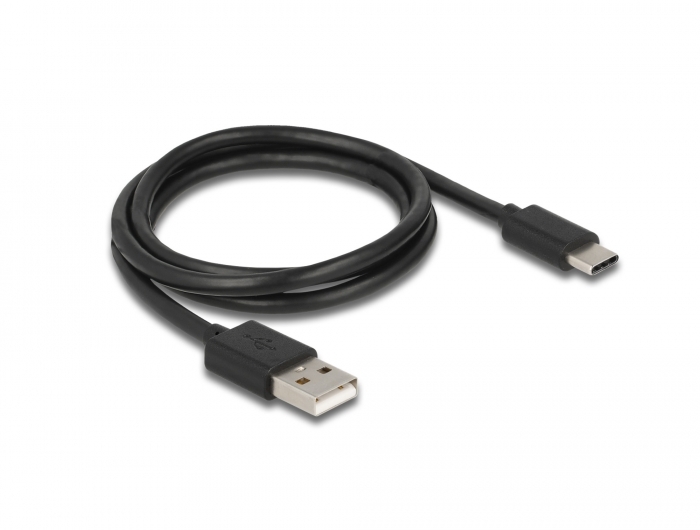

• USB power cable, length: ca. 0.8 m
• User manual
Data sheet:
http://www.delock.de/produkt/87775/pdf.html?sprache=en
