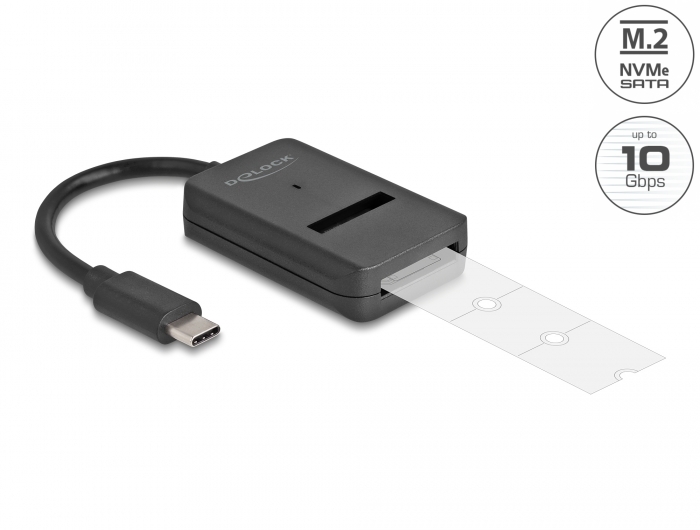

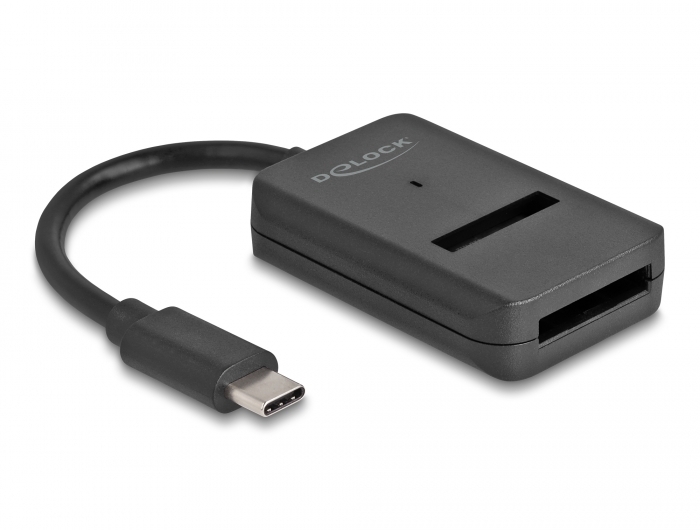

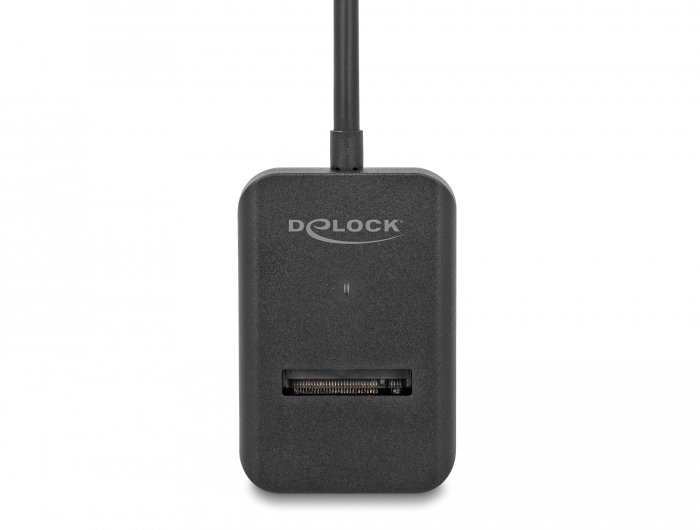

Delock Combo Converter for M.2 NVMe PCIe or SATA SSD with USB Type-C™ 10 Gbps

DELOCK

64198

Jauns

This converter by Delock enables the installation of an M.2 PCIe NVMe SSD or SATA M.2 SSD, it can be connected via USB to the PC or laptop.

Combo converter
The big advantage of this Delock M.2 converter is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the converter. The memory is automatically recognized by the chipset and can then be used.

Ideal test equipment

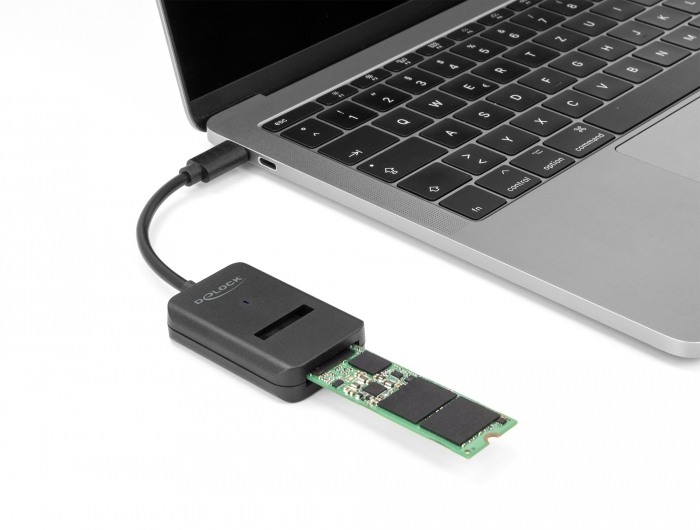

The M.2 SSD is simply plugged into the slot and connected to the device via USB-C™ plug. Therefore, the converter is most suitable as test equipment.
System requirements:
• Android 11.0 or above
• Chrome OS
• Linux Kernel 5.13 or above
• Mac OS 12.3.1 or above
• Windows 8.1/8.1-64/10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port
Specification:
• Connectors:
  1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ male
  1 x 67 pin M.2 key M slot
• Chipset: Realtek RTL9210B
• Supports M.2 modules with key M or key B+M based on SATA or PCIe (NVMe)
• Supports NVM Express (NVMe)
• Data transfer rate up to 10 Gbps
• LED indicator for power and access
• Bootable
• Plug & Play
• Cable length without connectors: ca. 10 cm
Package content:
• M.2 converter
• User manual
Data sheet:
http://www.delock.de/produkt/64198/pdf.html?sprache=en
