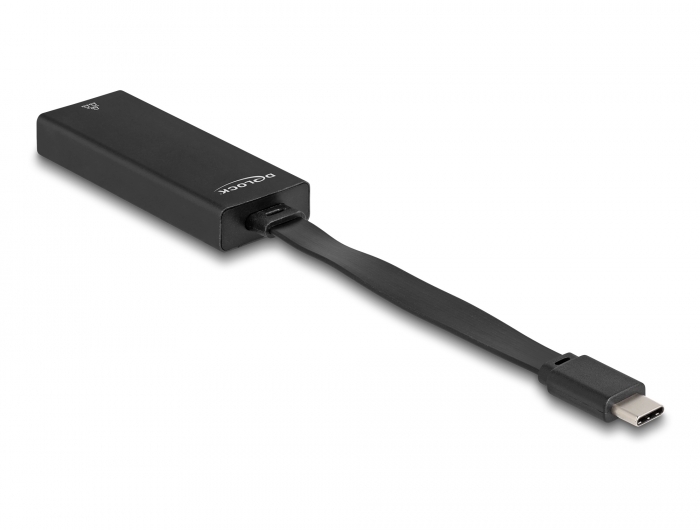

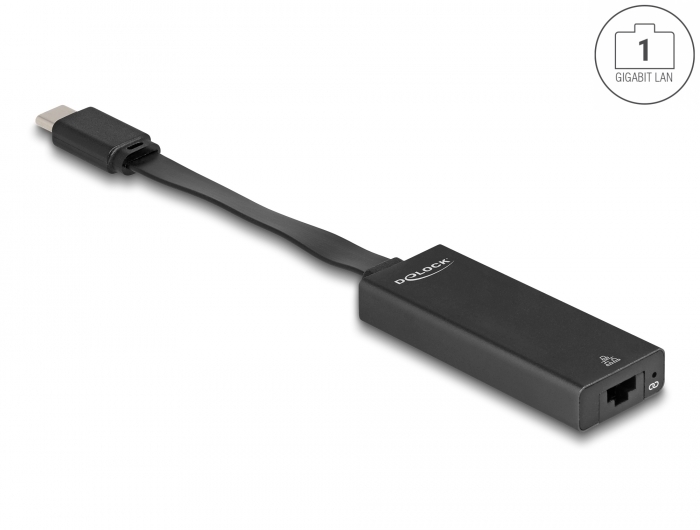

Delock USB Type-C™ Adapter to Gigabit LAN slim

DELOCK

66246

Jauns

The adapter by Delock expands a PC or laptop by one network interface via the USB Type-C™ interface.

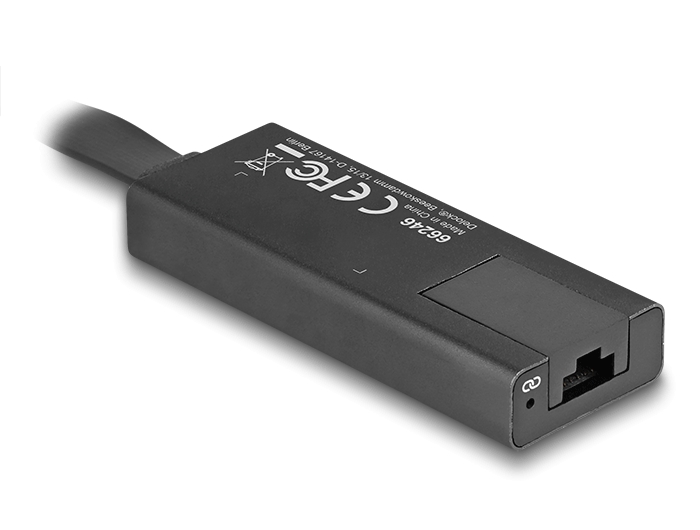

Fold-out RJ45 jack
The RJ45 jack can be folded out to insert the networking cable. This allows for a particularly slim design. With the small dimensions, the adapter is space-saving to transport and can be used practically everywhere.
System requirements:
• Windows 10/10-64/11
• PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port
Specification:
• Connectors:
  1 x USB 5 Gbps USB Type-C™ male
  1 x Gigabit LAN RJ45 jack
• Chipset: ASIX AX88179A
• SuperSpeed USB - 5 Gbps specification
• Data transfer rate:
  Ethernet up to 10 Mbps (Half/Full Duplex)
  Fast Ethernet up to 100 Mbps (Half/Full Duplex)
  Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Support full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure
• Supports 4k Jumbo Frames
• LED indicator for link and activity
• USB bus powered
• Colour: anthracite
• Cable length without connectors: ca. 9 cm
• Dimensions (LxWxH): ca. 59 x 23 x 10 mm
Package content:
• USB Type-C™ Gigabit LAN adapter
• User manual
Data sheet:
http://www.delock.de/produkt/66246/pdf.html?sprache=en
