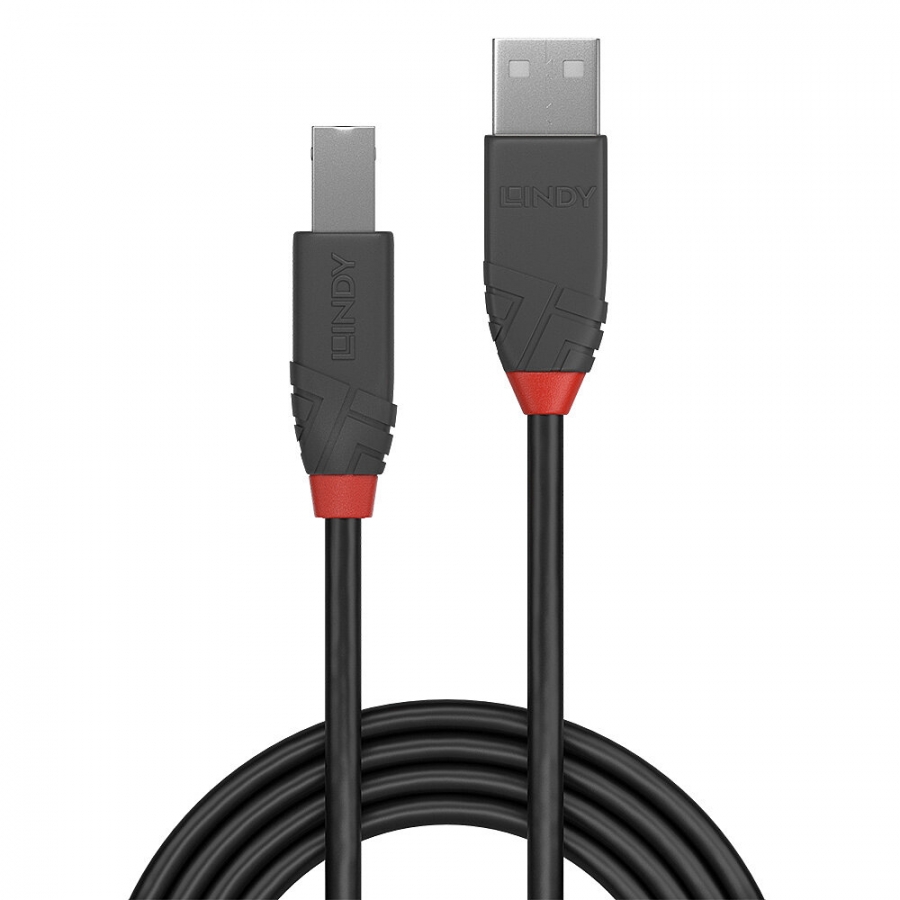

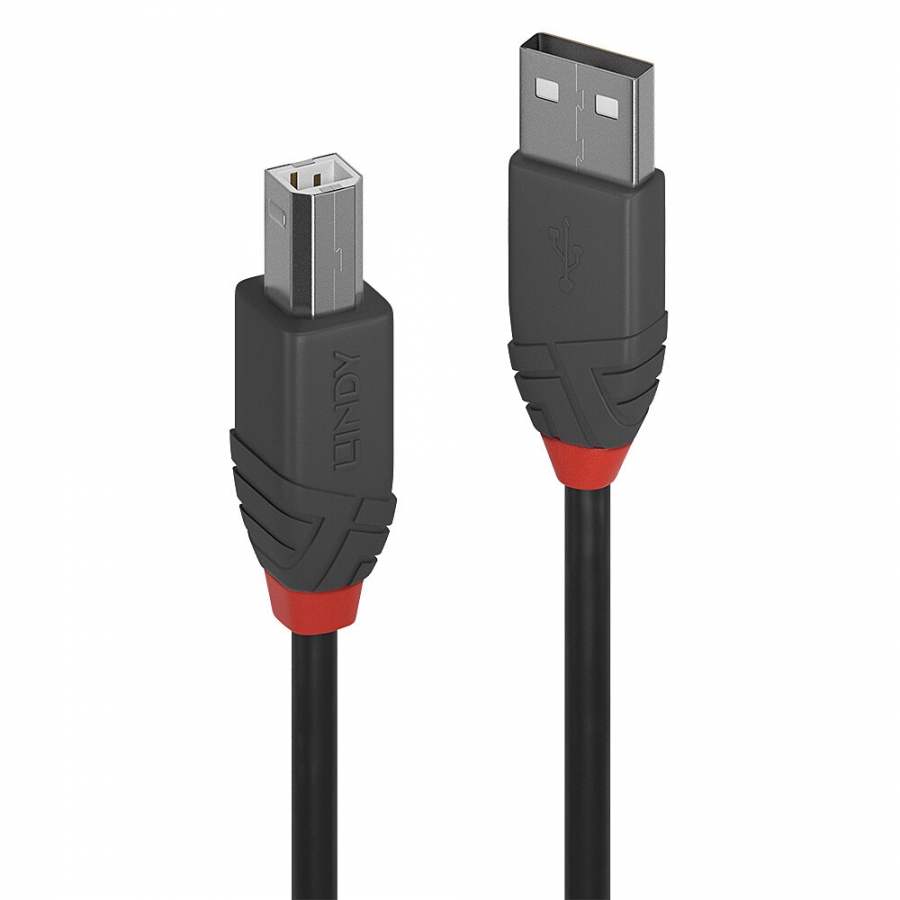

LINDY USB 2.0 Typ A an B Kabel, Anthra Line, 10m

Lindy

36677

Jauns

Professional choice USB 2.0 Type A to B cable for commercial and high performance AV and IT installations Supports data transfer speeds up to 480Mbps Robust PVC housing, nickel connectors and gold plated contacts Double shielded cable, corrosion resistant tinned copper conductors USB 2.0, 480Mbps 10 year warrantyFrom the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to B cables are the professional choice for high performance connections in commercial AV and IT installations.Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.Anthra Line USB 2.0 Type A to B cables are available in lengths from 0.2m to 10m.

Cable length10 m
USB versionUSB 2.0
Connector 1USB A
Connector 2USB B
Connector 1 genderMale
Connector 2 genderMale
Product colourBlack, Grey, Red
Connector 1 form factorStraight
Connector 2 form factorStraight
AWG wire size28/24
Connector materialNickel
Contact materialCopper
Connector contacts platingGold
Cable jacket materialPolyvinyl chloride (PVC)
Conductor materialTinned copper
Connector shieldingY
Connector shield materialAluminium
Connector housing materialPolyvinyl chloride (PVC)
Maximum data transfer rate480 Mbit/s
Cable typeRound cable
Nominal attenuation5.8db/km
CertificationRoHS, REACH, UL
Cable diameter5 mm
Bend radius (min)1.6 cm
Connector 1 dimensions (WxDxH)15.5 x 35 x 7.8 mm
Connector 2 dimensions (WxDxH)11.8 x 35 x 10.2 mm
Quantity per pack1 pc(s)
Package typePolybag
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)0 - 60 °C
Harmonized System (HS) code84733080
