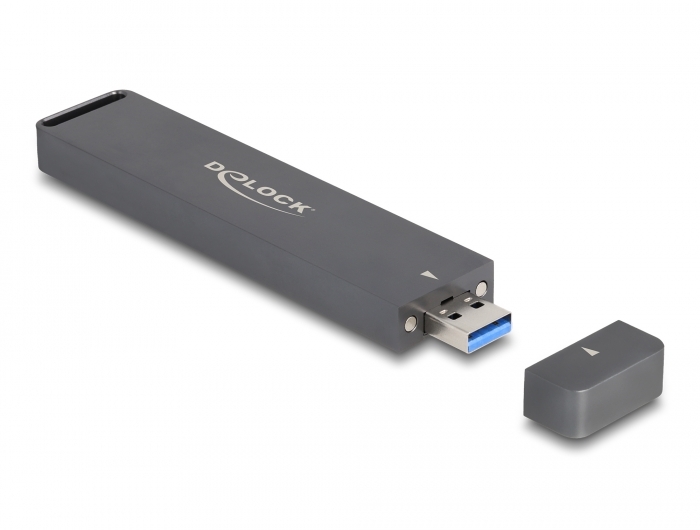

Delock External Enclosure for M.2 NVME PCIe SSD or SATA SSD with USB 10 Gbps Type-A male

Kods 42021

Condition: Jauns

Vairāk informācijas

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD or SATA M.2 SSD in 2280, 2260, 2242 and 2230 format. It can be connected via USB to the PC or laptop. The robust metal housing ensures an optimum temperature of the memory.

Combo enclosure

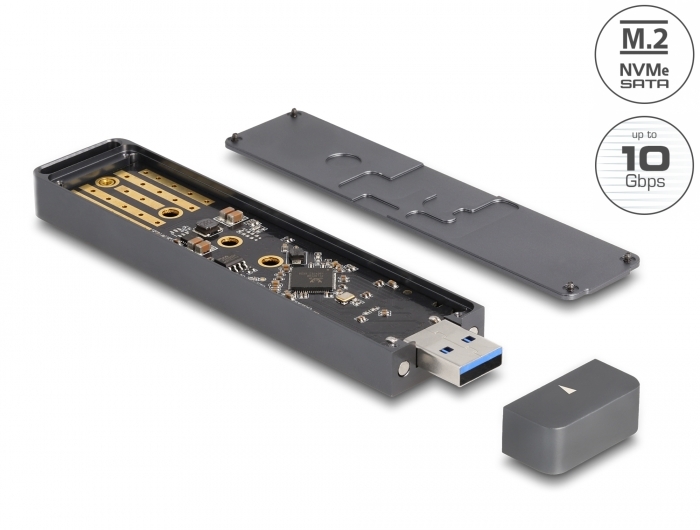

The big advantage of this Delock M.2 enclosure is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the enclosure. The memory is automatically recognized by the chipset and can then be used.

System requirements:
• Android 11.0 or above
• Chrome OS
• Linux Kernel 5.15 or above
• Mac OS 12.4 or above
• Windows 8.1/8.1-64/10/10-64/11

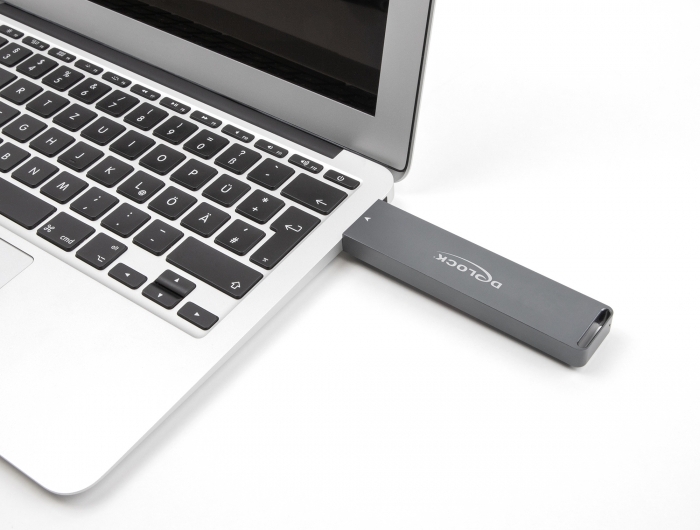

• PC or laptop with a free USB Type-A port

Specification:
• Connectors:
external: 1 x USB 10 Gbps Type-A male
internal: 1 x M.2 key M slot
• Chipset: Realtek RTL9210B
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on SATA or PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable
• Data transfer rate up to 10 Gbps

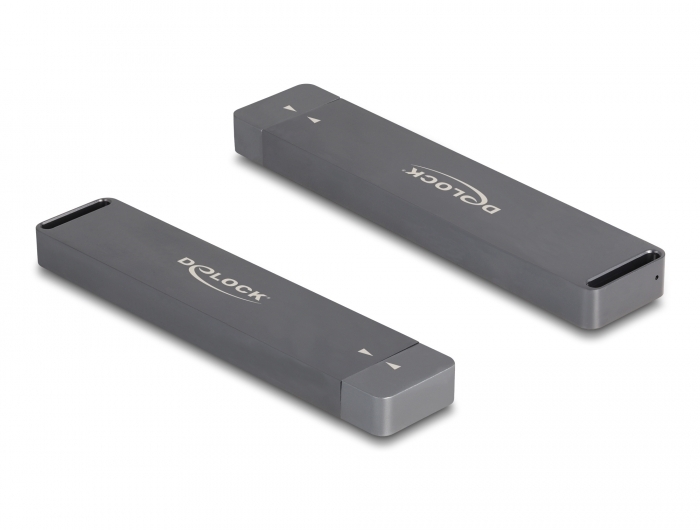

• Metal housing
• Dimensions (LxWxH): ca. 121 x 26 x 10 mm
• Hot Plug, Plug & Play

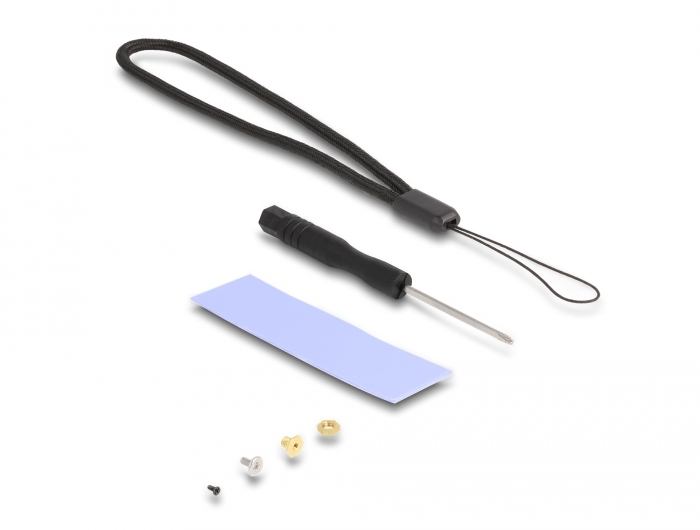

Package content:
• External enclosure M.2
• Mounting material
• Screwdriver
• 1 x thermal conductive pad
• Key chain
• User manual
