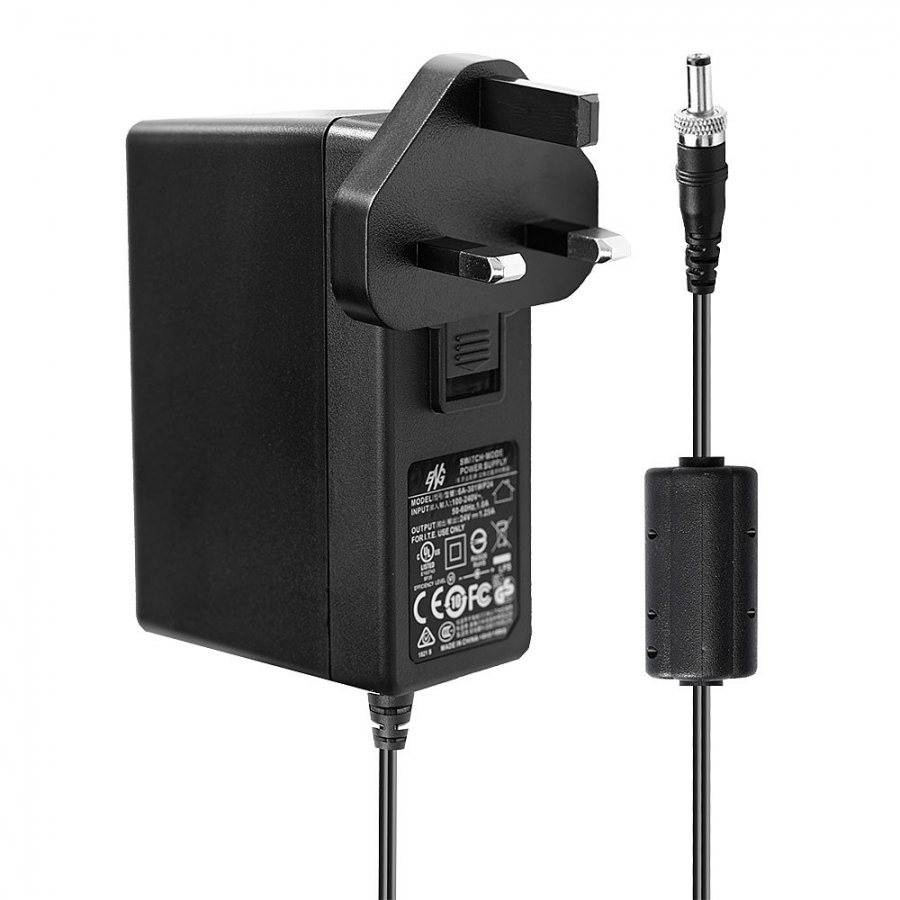

24VDC 1.25A Multi-country Power Supply, 5.5/2.1mm

LIN73825

Jauns

Specifications

  • Input Voltage: 100…240VAC
  • Input AC Frequency: 50…60Hz
  • Output Voltage: 24V
  • Output Voltage Accuracy: 22.8V~25.2 V
  • Output Current (max.): 1.25A
  • Output Power: 30W
  • Average active efficiency: 0.869
  • Efficiency at low load (10%): Yes
  • No-load Power Consumption: <0.1W



Physical Properties

  • Dimensions (approx.) WxDxH: 90x38x59.4mm (3.54x1.5x2.34in)
  • DC Cable Length: 1.5m (4.92ft)
  • DC Connector Size: 5.5/2.1mm
  • Housing Material: Plastic
  • Net Weight: 0.15kg (0.33lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Operating Humidity: 20% - 80% RH (non-condensing)
  • Storage Humidity: 10% - 90%  RH (non-condensing)
  • Colour: Black



Miscellaneous

  • Manufacturer Name: ENG
  • Commercial Registration No. : 43869091
  • Manufacturer Address: 5F, No.536, Sec.1

Minsheng N.Rd

Kweishan Hsiang

Taoyuan Country

Taiwan

  • Manufacturer Model No.: 6A-301WP24
  • Packaging Type: Carton Box
  • Packaging Dimensions: 100x90x60mm (3.94x3.54x2.36in)
  • Gross Weight: 0.24kg (0.53lb)
  • Warranty (Years): 2
  • Certificated: EMC

LVD

ErP

UL

CCC

RCM

PSE

RoHS

REACH

California Proposition 65



Package Content

  • Multi-country Power Supply
  • UK, EU, US & AUS Adapters
  • Lindy Manual



Purchasing Information

  • No.: 73825
  • EAN: 4002888738255
