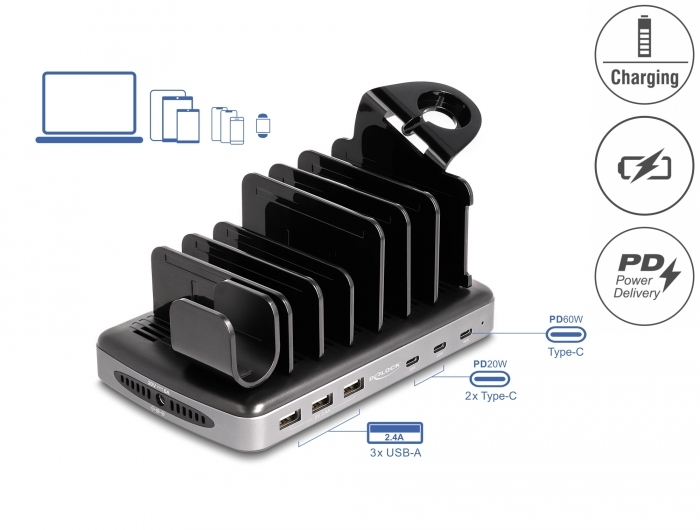

Delock USB Charging Station with 3 x USB Type-C™ PD + 3 x USB Type-A (112 W)

DELOCK

41461

Jauns

This USB Power Delivery (PD) charger by Delock can be used to charge devices like laptops with USB Type-C™ connector. It provides various voltages from 5 V to 20 V and power up to 60 watt. In addition, three USB Type-A connectors with fast charging technology are available for smartphones. A total of up to 6 devices can be charged simultaneously.

Variable holders
The holders allow several devices, such as smartphones, AirPods or tablets, to be placed on the charging station to save space. Thanks to the pre-installed slots, the holders can be placed at variable distances on the unit.

Smartwatch holder
In addition to the holders for tablets and smartphones, the charging station also has the option of a smartwatch holder.
Specification:

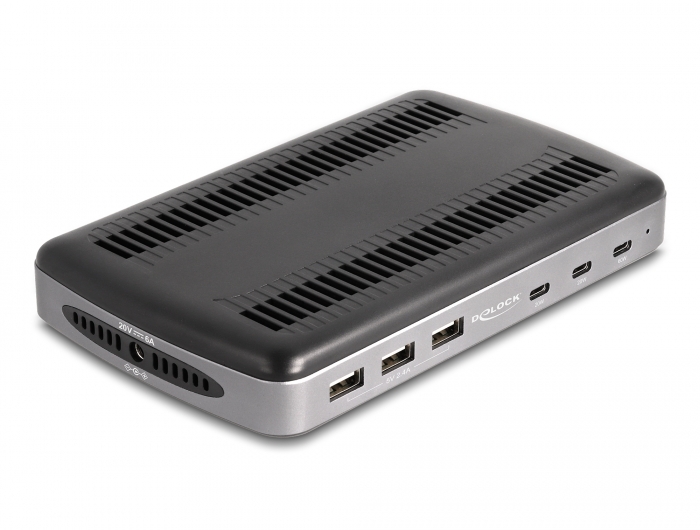

• Connectors:
  1 x USB Type-C™ female (PD 60 W)
  2 x USB Type-C™ female (PD 20 W)
  3 x USB Type-A female
  1 x DC jack
• Input: AC 20.0 V / 6.0 A
• Output each port:
  USB-A 5.0 V 2.4 A (12.0 W)
  USB-C™ 5.0 V / 9.0 V / 12.0 V (max. 20.0 W)
  USB-C™ 5.0 V / 9.0 V / 12.0 V / 15.0 V / 20 V (max. 60.0 W)
• Output power: max. 112.0 W total
• Average active efficiency 88.00 %
• Efficiency at low load (10 %) 86.00 %
• No-load power consumption 0.21 W
• 1 x LED for power
• Colour: grey / black
• Dimensions (LxWxH): ca. 185 x 113 x 35 mm

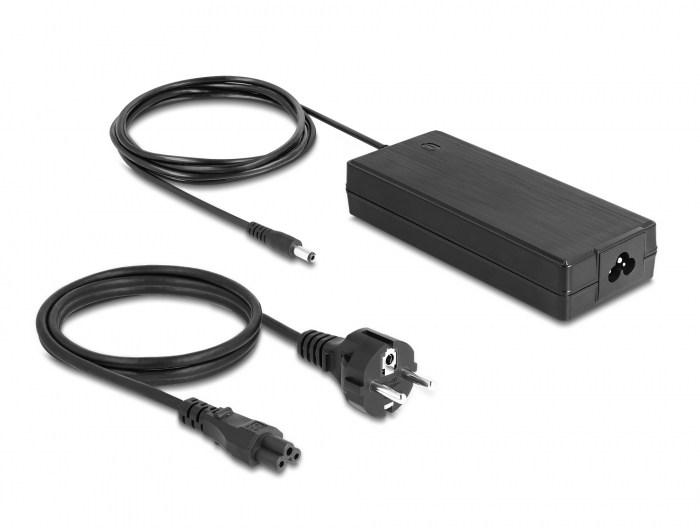

Power supply specification
• Power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 3.0 A
• Output: 20.0 V / 6.0 A
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 2.5 mm
  outside: ø ca. 5.5 mm
  length: ca. 11 mm
Package content:
• USB charging station

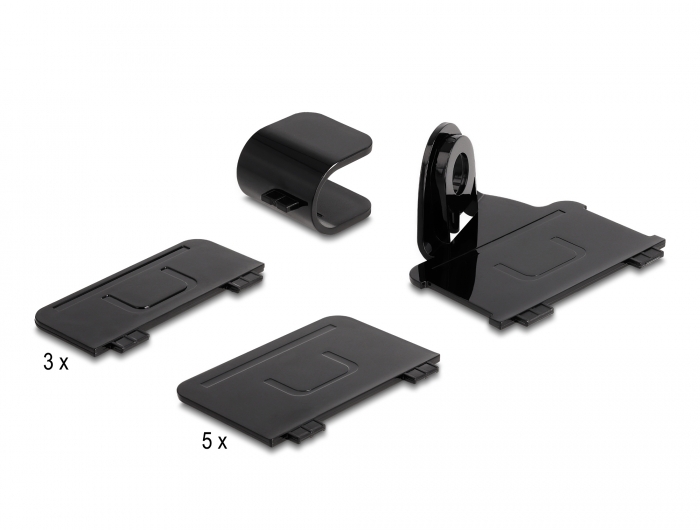

• 3 x holder small (94 x 44 x 3 mm)
• 5 x holder big (94 x 63 x 3 mm)
• 1 x smartwatch holder (99 x 93 x 47 mm) - Diameter: ca. 27 mm
• 1 x AirPod charging holder (45 x 40 x 30 mm)
• External power supply
• Power cord, length ca. 2 m
• User manual
Data sheet:
http://www.delock.de/produkt/41461/pdf.html?sprache=en
