Digitus 4-port universal USB charging adapter, 150W GaN

Digitus

DA-10181

Jauns

4-Port USB-charging adapter, 150W GaN 150W, 2x USB-C, 2x USB-A, PD3.0

High-performance 4-port GaN charging adapter with a power of up to 150W for USB-C/USB-A devices of all kinds

Compact charger for devices such as notebooks, smartphones or tablets. The latest GaN technology is extremely efficient and can charge devices up to four times faster than conventional chargers.
Supports power up to 150W - compatible with Power Delivery (PD3.0) and PPS function
An intelligent power distribution divides a total of 150W charging power to several connected devices and provides the optimal charging current for the connected
Ports used: 2 x USB-C™ ports with 150W (100W + 45W) charging power
Ports used: 2 x USB A ports with 24 W (12W + 12W) charging power
Ports used: 2x USB-C 145 W & 2x USB A 12 W charging power
The use of GaN technology makes it smaller compared to silicon power supplies, more efficient because less heat is dissipated, noise is minimized and stable charging is ensured.
Built-in over-voltage protection / over-current protection / short-circuit protection and over-heating protection with auto-recovery for maximum security
The housing is made of fire-resistant material

The 4-Port USB Charging Adapter by DIGITUS® is a powerful charging solution for everyday use with the latest GaN technology, offering you efficient and faster charging with low heat generation in a small size. The high-performance adapter has a maximum output power of 150W. Equipped with 2x USB-C and 2x USB-A ports, it supports a total output of up to 150W and can therefore charge 4 devices at the same time. Compatible with the common fast charging protocols and therefore compatible with almost all devices. The integrated overvoltage, overcurrent and short-circuit protection ensures greater safety. Furthermore, the integrated overheating protection prevents possible overloading and damage to the charger or the connected devices.

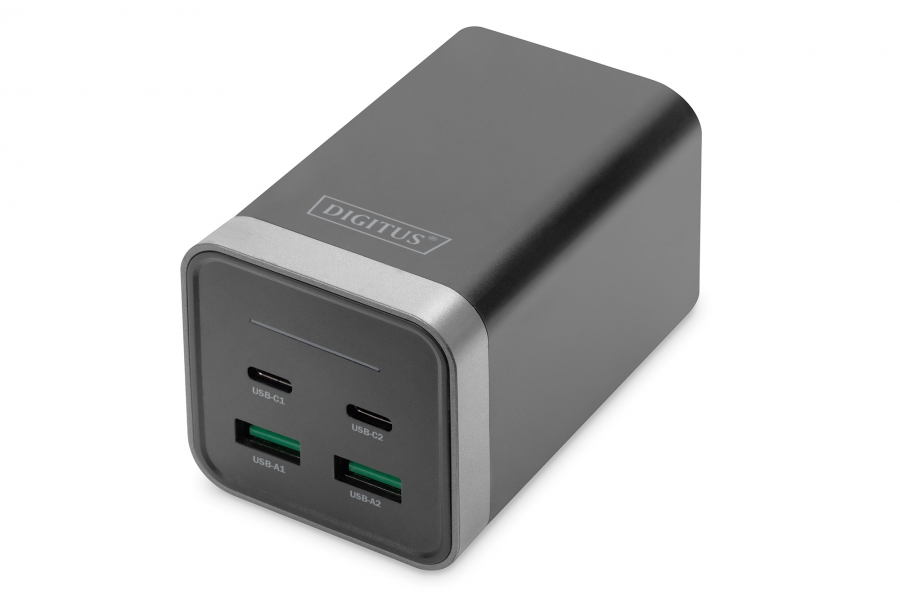

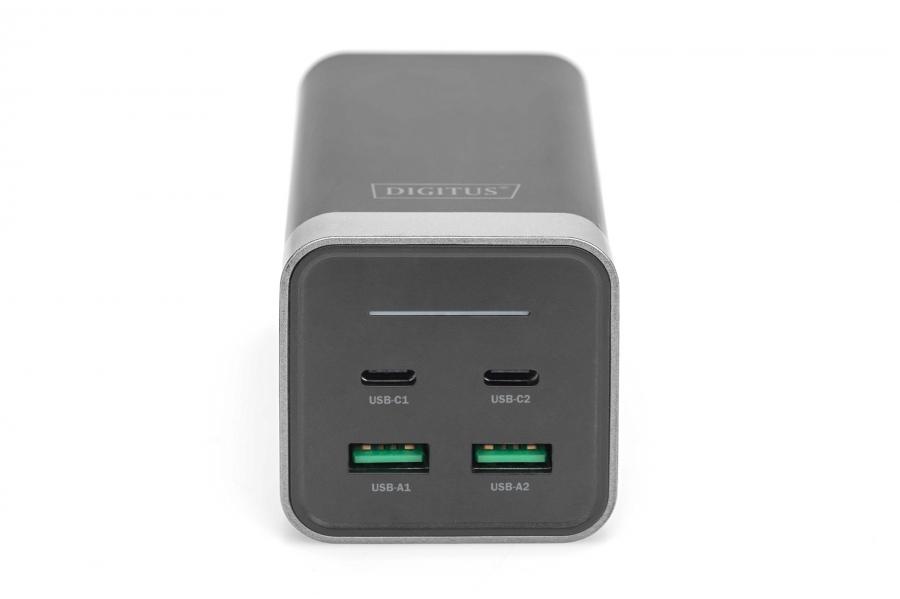

Connection: 2x USB-C™ + 2x USB A
Supports Power Delivery 3.0 and PPS function with 150W charging power
Input Voltage: 100~240 V AC, 50/60Hz
Output voltage: USB-C1/C2: PD 100W (PD: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A)
Output voltage: USB-A1/A2: 22.5W (5V/4.5A, 5V/3A, 9V/2A, 12V/1.5A) SCP & QC3.0
Output voltage: USB-C1+C2+A1+A2: C1: 100W + C2: 30W + A1: 10W + A2: 10W
Over Voltage Protection / Over Current Protection / Over Load Protection / Short Circuit Protection
Protection against overheating with automatic shutdown and recovery (auto-recovery)
Dimensions: L 85 x W 52 x H 52 mm
Colour: black/silver
Weight: 500 g
Attention: When multiple devices are connected, the adapter will choose the appropriate fast charge protocol to split the power for each device optimally, resulting in 2-3 times disconnection before fast charge begins

Package content:
1x universal charging adapter
1x QIG (Quick Installation Guide)
1x power cord

Platums(cm)10.2
Grums(cm)15.8
Augstums(cm)5.6
Svars(kg)0.5715
Tilpums(cm3)902.496
Izcelsmes valstsCN
