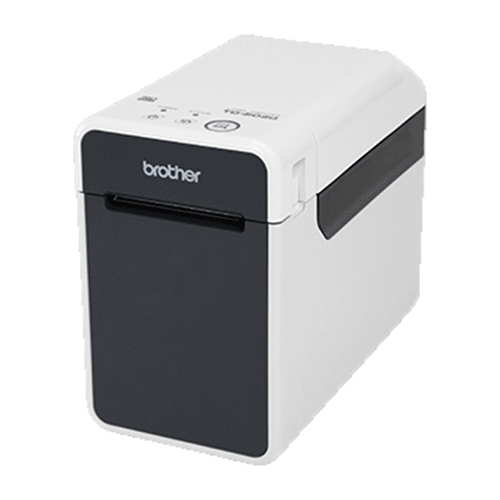

Designed for use on a cart or virtually any retail work space, the TD-2120N is among the most compact and fastest 2.2in wide powered desktop/network thermal printers for retail applications. At 203dpi, it prints price, mark-down, product identification, returns and shelf-edge labels quickly at up to 6ips. Also prints tags and receipts for kiosk and POS applications. An innovative drop-in roll, spindle-less design helps make loading easy with existing or standard converted media. Windows Server® 2012/2008R2/2008/2003 and Windows® 8/7/XP drivers, (ZPL II® compatibility,) and SDK's for iOS®, Android® and Windows Mobile® helps with integration into existing retail solutions.Main Features Bridges The Gap Between Desktop and Mobile Printers – With the rechargeable battery, these printers become powered desktop thermal printers and operate like a mobile printer with higher media capacity and desktop printer options like a peeler and a touch panel LCD display for use off-line or as a standalone solution Cut the cords – With an optional Li-ion rechargeable battery and wireless Wi-Fi® or Bluetooth® interface, you can print from a desktop or network thermal printer from virtually any location in the retail store, regardless of having a power outlet and/or network interface port nearby Wide Range of Printing Solutions – Comes with Windows® network and computer printer drivers for virtually seamless integration with many existing solutions. SDK's available for iOS®, Android® and Windows Mobile® devices Print On A Cart – Brother™ designed these printers with a compact footprint to help provide the most usable work space on a cart versus nearly all competitive printers in its class. The Li-ion rechargeable battery option does not increase the compact footprint and provides mobility to a desktop thermal printer Standalone Printing Solution – A touch panel and LCD display option is available for printing labels, tags or receipts off-line or as a standalone printer without a computer or a mobile device. Ideal for on-demand printing of price and "best before" freshness labels right in a food preparation area, or download information from a database and print shelf-edge, price and mark-down tags and labels in-aisle Small Size, But Big on Performance – Although these printers are among the smallest desktop thermal printers in their class, they also lead in performance over many 203 dpi print resolution desktop thermal printers Ergonomic Design – Uses an innovative spindle-less design that accepts labels, tags or receipt media with virtually any core size for a true drop-in media roll loading experience on a desktop, cart or even mounted to a wall High Speed Printing – Prints up to 6ips in 203dpi print resolution Battery Powered Model – Powered desktop and network thermal printer model configurations are available with a long life rechargeable Li-ion battery and charged by the printer power adapter or optional external 4-bay charger Print From Mobile Devices – Brother provides iOS®, Android® and Windows Mobile® SDK's to help develop a wireless printing solution from virtually any tablet or handheld device Print From a Database – Helps save time and increase accuracy by printing labels, tags and receipts linked directly to Microsoft® SQL Server®, Access® or Excel® database files Easy To Integrate – Comes with Windows Server® and Windows® printer drivers help make integration into existing retail systems seamless and simple Connectivity Options – Ethernet LAN, USB 2.0, Host USB and Serial RS-232 interface ports comes standard on most models, with the option to add wireless Wi-Fi® WLAN or Bluetooth® interfaces Print & Apply Solution – Optional peeler automatically separates the label from the liner and positions the label to help "pick" the printed label from the printer and apply it using just one hand. Removal of the label allows the next label to print automatically Adjustable Edge-to-Edge Media Sensor - Flexibility to detect and print on more types of existing thermal media to help avoid converting custom media Complete Label Printing Solution – Comes with the full version of the Brother P-touch® Editor software application with advanced design tools and printing features Two Year, "At your side" Limited Warranty – As a commitment to reliability, the entire label printer is covered under a two year limited warranty, including the print head no matter the amount of media you print every day
|
| Print technology | Direct thermal | | Maximum resolution | 203 x 203 DPI | | Print speed | 152.4 mm/sec | | Maximum printing width | 5.6 cm | | Ribbon length | 1 m | | Connectivity technology | Wired | | Ethernet LAN | Y | | USB port | Y | | USB 2.0 ports quantity | 1 | | RS-232 ports | 1 | | Optional connectivity | Bluetooth, Wireless LAN | | Page description languages | ESC P | | Internal memory | 32 MB | | Flash memory | 16 MB | | Built-in barcodes | 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Data Matrix, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, UPC-A, UPC-E | | Security algorithms | EAP-FAST, 128-bit WEP, 64-bit WEP, EAP-TLS, EAP-TTLS, LEAP, PEAP, SSID, TKIP, WPA-PSK, WPA2-PSK | | Product colour | Black, Grey | | Display | LCD | | AC adapter output voltage | 25 V | | AC adapter output current | 6 A | | Minimum storage drive space | 70 MB | | Minimum RAM | 128 MB | | Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 | | Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012 | | Operating relative humidity (H-H) | 20 - 80% | | Storage relative humidity (H-H) | 20 - 80% | | Operating temperature (T-T) | 5 - 40 °C | | Storage temperature (T-T) | -20 - 60 °C | | Width | 110 mm | | Depth | 215 mm | | Height | 172 mm | | Weight | 1.34 kg | | AC adapter included | Y | | Harmonized System (HS) code | 84433210 | | LED indicators | Y |
|
