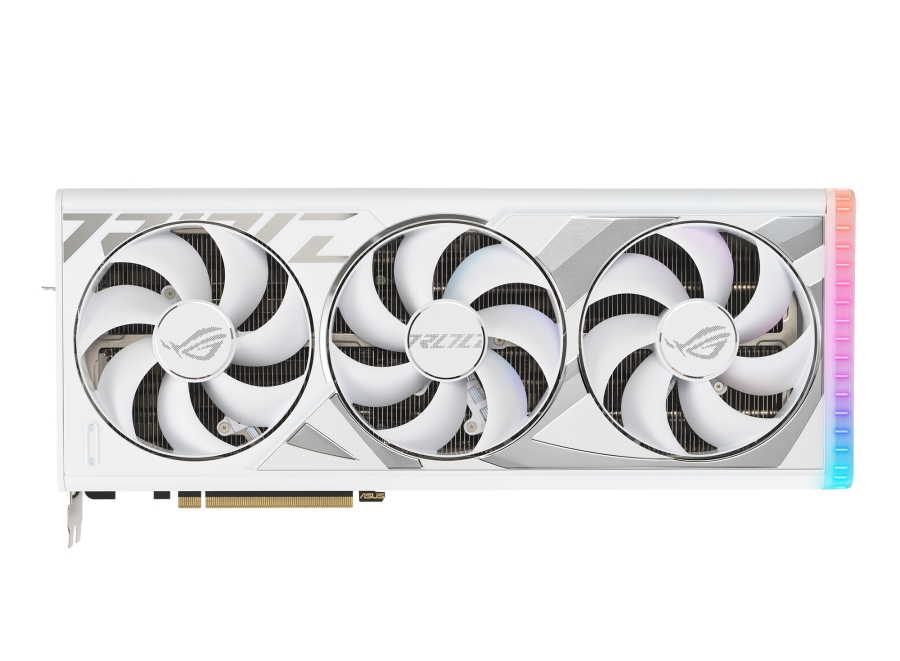

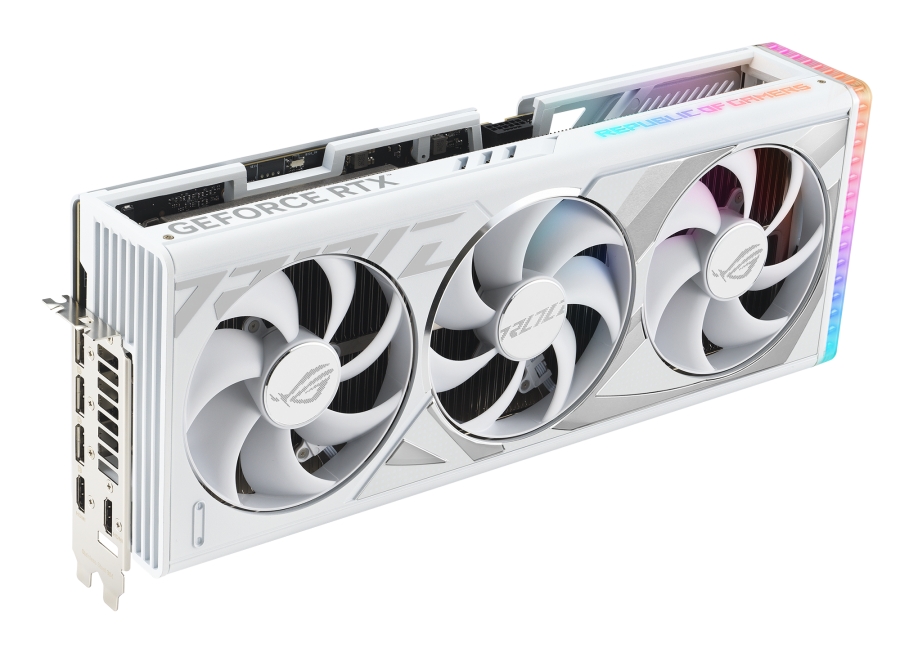

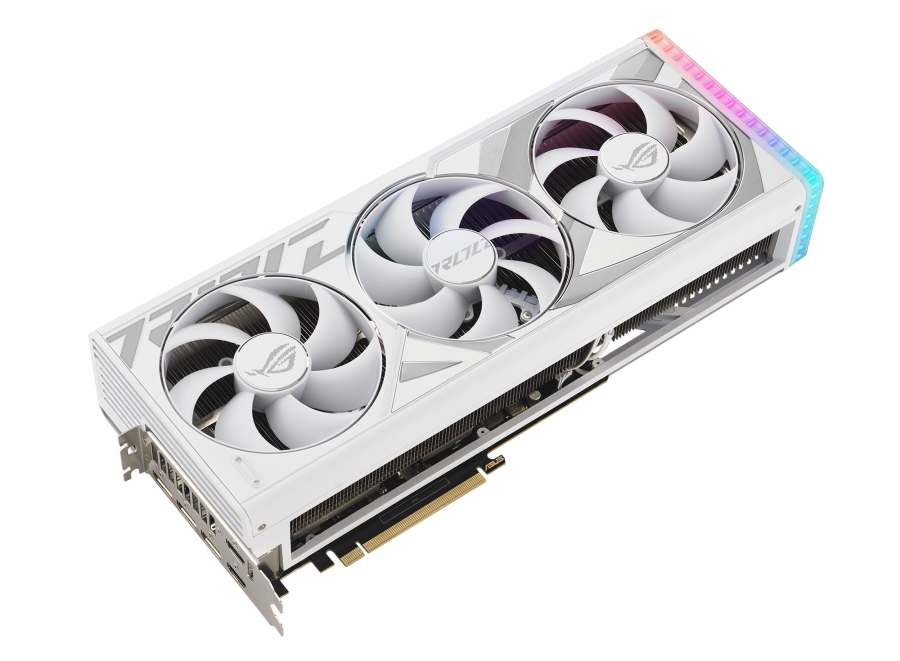

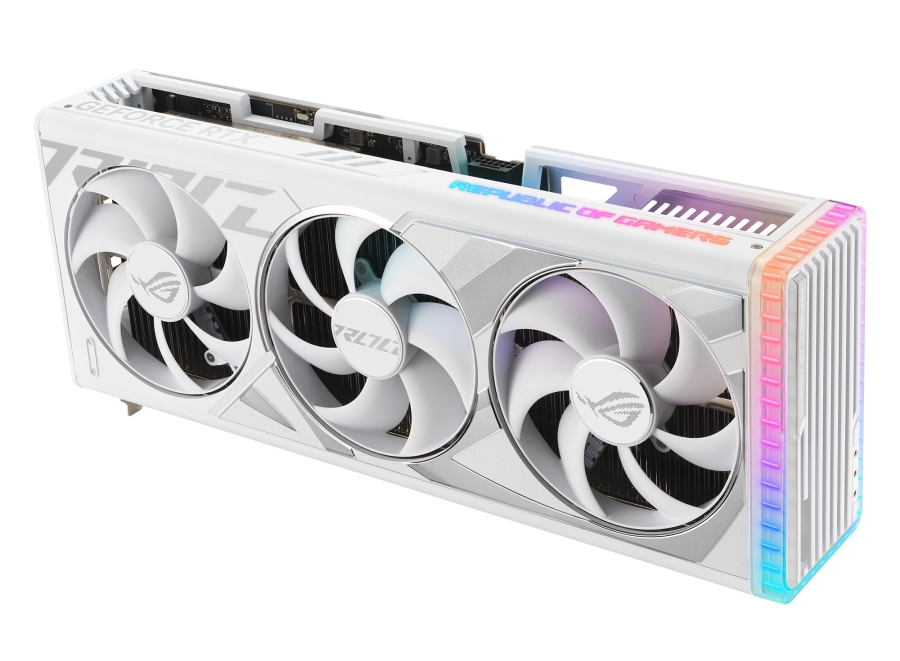

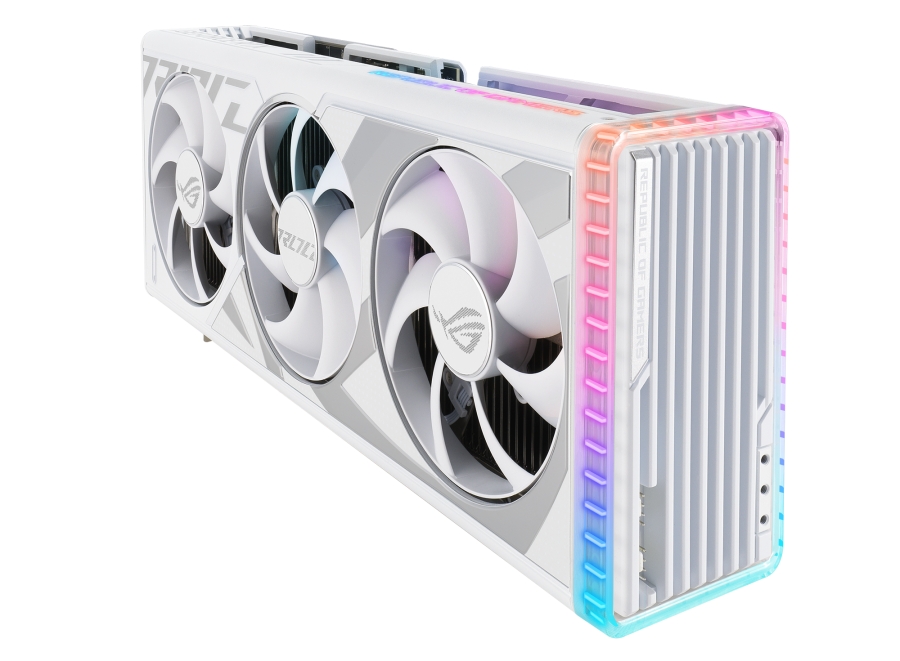

ASUS ROG-STRIX-RTX4080-O16G-WHITE 16GB GDDR6X HDMI DP

ASUS

90YV0IC3-M0NA00

Jauns

WITH THE INCREDIBLE SUM OF ITS PARTS The ROG Strix GeForce RTX™ 4080 brings a whole new meaning to going with the flow. Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance. The unleashed reign of the NVIDIA Ada Lovelace architecture is here.Axial-tech Upgrades A Fresh Spin Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.Reverse Rotation and 0dB Technology Orchestrated Chill The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 C, referencing a speed curve that balances performance and acoustics for work or play.3.5-slot Design Through Thick and Fin The custom sink is generously sized and structured to soak up heat from the GeForce RTX 4080 GPU so that it can be efficiently whisked away by the three Axial-tech fans.Patented Vapor Chamber Phase Changer A vapor chamber featuring milled pathways lets the heatpipes sink in without being pressed flat, allowing heat to be carried more efficiently to the fin stack. In comparison to conventional vapor chamber and heatpipe combos, this potent pairing reduces GPU temperature by up to 5 Celsius when subjected to a 500W thermal load.Premium Power Delivery 1st Responder Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.Compact PCB Packs a Punch Component and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent.Metal Exoskeleton Ultra-rigid A high-quality diecast frame, shroud, and backplate tightly brace the PCB and strategically steer airflow.GO WITH THE FLOW It all comes together to effortlessly drive GeForce RTX 4080 performance to the max.FanConnect II Hook up Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly attached to the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.Reinforcements Additional Perks A GPU bracket provides extra stability to the critical connection between die and heat spreader. The rear I/O bracket is made from stainless steel to prevent corrosion in humid climates and provide a more resilient mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” speed profiles for the Axial-tech fans.Power Sensing Quick Diagnosis Know if your PSU is worthy. ROG Strix GeForce RTX 4080 graphics cards feature a high-speed circuit that constantly monitors input power from the PSU and utilizes conveniently placed LEDs to indicate voltage regulation issues and cable connection problems.Auto-Extreme Technology Reliability Boost Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.Aura Sync Symphony of Light Aura-compatible ARGB lighting elements on the shroud and rightmost perimeter of the card provide endless possibilities for personalization with color or functional effects. Pair up with a vast range of compatible system components and coordinate the glow to create a build that’s uniquely you.Graphics Card Holder Pillar of Support The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.Software GPU Tweak III ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.QuantumCloud QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. ​Get started right away with just one click!

Graphics processor familyNVIDIA
Graphics processorGeForce RTX 4080
Maximum resolution7680 x 4320 pixels
CUDAY
Parallel processing technology supportNot supported
CUDA cores9728
Processor boost clock speed2625 MHz
Processor frequency (OC mode)2655 MHz
Maximum displays per videocard4
Discrete graphics card memory16 GB
Graphics card memory typeGDDR6X
Memory bus256 bit
Data transfer rate22.4 Gbit/s
Interface typePCI Express 4.0
HDMI ports quantity2
DisplayPorts quantity3
HDMI version2.1a
DisplayPort version1.4a
TV tuner integratedN
DirectX version12 Ultimate
OpenGL version4.6
Dual Link DVIN
Virtual Reality (VR) readyY
HDCPY
HDCP version2.3
NVIDIA G-SYNCY
NVIDIA AnselY
Cooling typeActive
Cooling technologyASUS Axial-tech
Number of fans3 fan(s)
Form factorFull-Height/Full-Length (FH/FL)
Bracket heightFull-Height (FH)
Number of slots3.5
IlluminationY
Illumination colourMulti
Product colourWhite
Minimum system power supply750 W
Supplementary power connectors1x 16-pin, 3x 8-pin
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Weight2.5 kg
Depth357.6 mm
Height149.3 mm
Width70.1 mm
ManualY
Package width420 mm
Package depth226 mm
Package height126 mm
Package weight3.56 kg
Package typeBox
