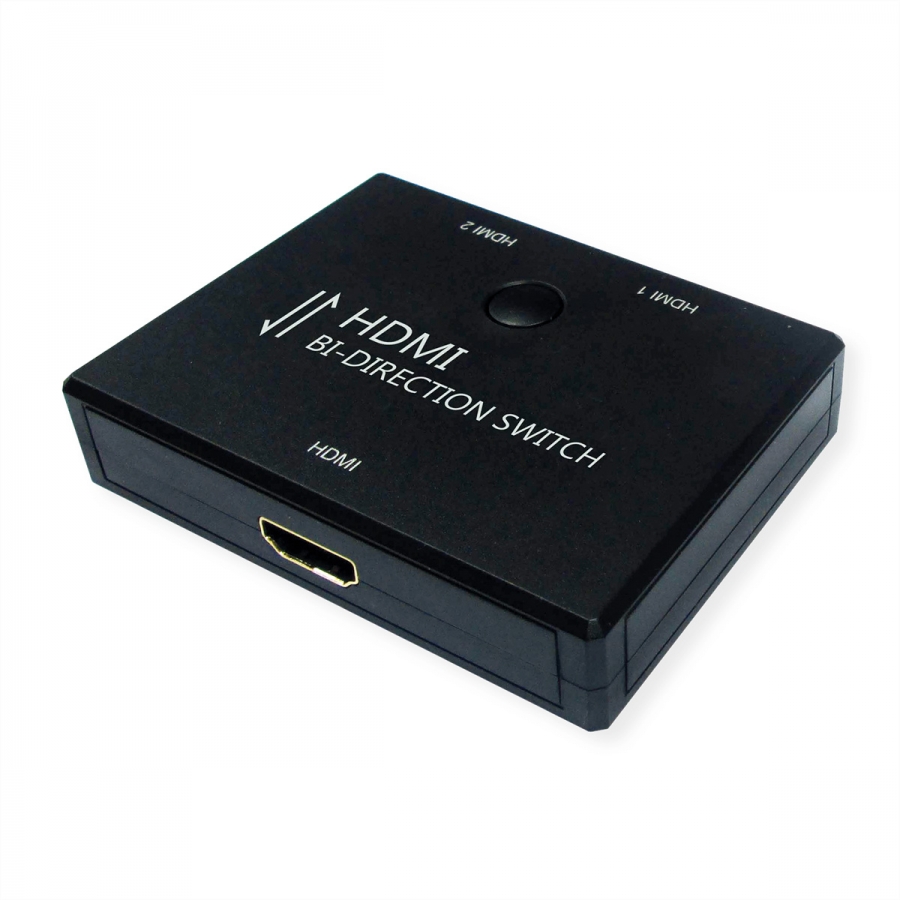

VALUE Bi-Directional HDMI Switch 4K60, 2-way

Kods 14.99.3586

Condition: Jauns

Vairāk informācijas

Display the video output from two HDMI sources alternately on a 4K monitor, TV, or projector. Or display the video output from one HDMI source alternately on two different devices.

Manual bidirectional HDMI switch for connecting different devices (e.g. DVD, Blu-ray player) with HDMI port.
Manual select push button to alternate between application modes

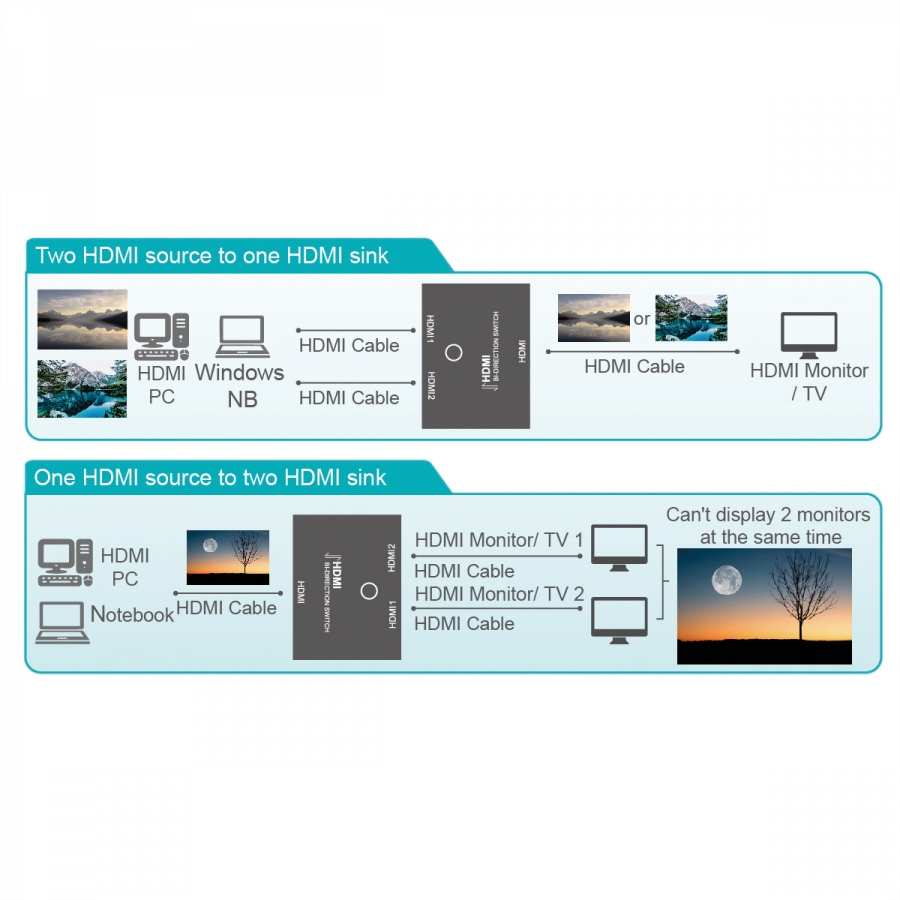

Possible applications:

- Two inputs to one output (2 to 1): Up to 2 different HDMI devices can be connected to one monitor, TV or projector, by pushing the button.
- One input to two outputs (1 to 2): One HDMI device can be connected to up to 2 screens.

A simultaneous output to multiple screens is not possible.

Connectors:

Application 1
Input: 2 x HDMI
Output: 1 x HDMI

Application 2
Input: 1 x HDMI
Output: 2 x HDMI

Supports HDR
HDMI port selection by button
Resolution up to 3840 x 2160 (4K) 60 Hz (depending on the system and the connected hardware)
No external power supply needed
Plastic housing
Colour: black
Dual LEDs to display status
Dimensions (LxWxH): 82 x 62 x 17 mm

Manufacturer	VALUE
Product group	Splitters and selectors
Product type	HDMI-Video-Switch
Colour	black
Scope of delivery	HDMI Switch, Manual
Interface	HDMI
Inputs	2
Outputs	1
Video input	2x HDMI F
Video output	1x HDMI F
Max. resolution (nom.)	3840x2160@60Hz (4K2K)
Max. resolution	3840 x 2160 @60Hz (4K, UHD-1)
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	70 mm
Depth of packaging (single piece)	70 mm
Package weight (single piece)	0.02 kg
Current catalog edition	C23-New
