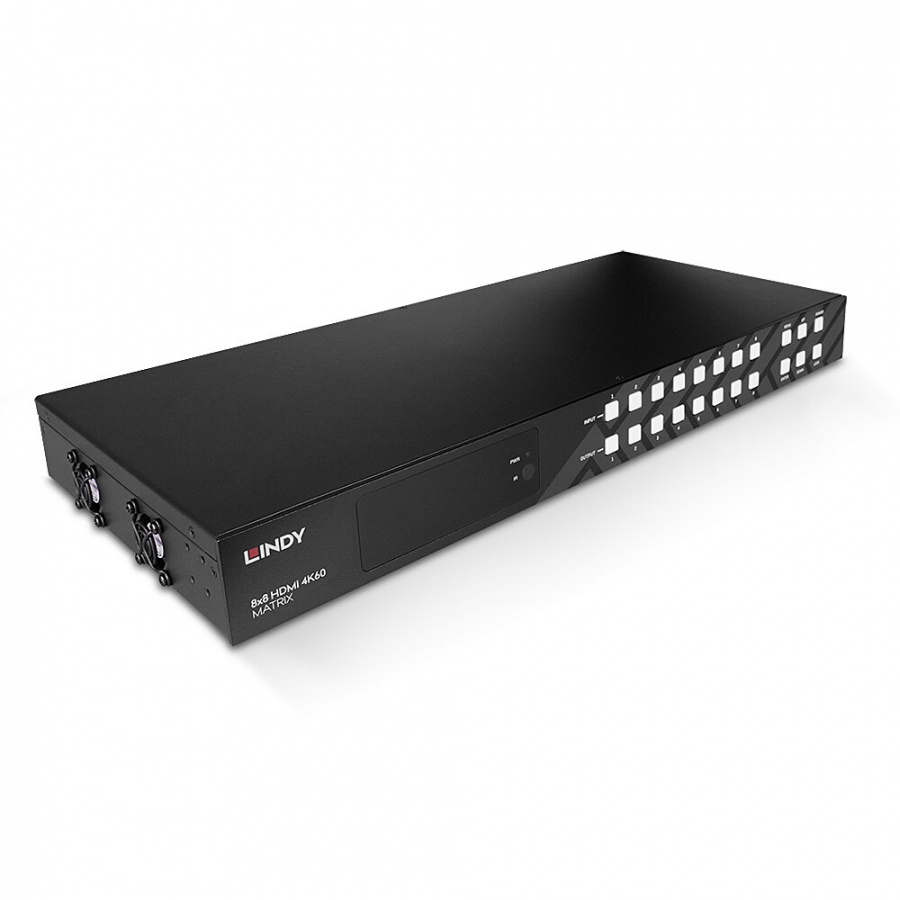

Lindy 8x8 HDMI 4K60 Matrix

Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 2.0b
• Supported Bandwidth: 18Gbps
• Maximum Resolution: 3840x2160@60Hz RGB 8bit
• HDCP Support: 2.2
• Supported Audio:
  • HDMI Audio Pass-through up to 7.1CH
  • Coax up to 5.1CH
  • Stereo Analogue
• IR Support: 38kHz
• CEC Support: Yes
• Serial Interface: RS-232
• LED / LCD Display: OLED
• Control: Push Buttons, IR, RS-232, IP
• Special Features: ARC, 4K to 1080p Output Downscaler, Dolby Vision,Dolby Atmos, HDR 10

Connectors

• Input: 8 x HDMI (Female)
• Output: 8 x HDMI (Female), 8 x 3.5mm (Female), 8 x Coax (Female)
• Control: RS-232 (Female), RJ45 (Female)
• Power: 5.5/2.5mm

Physical Properties

• Dimensions (approx.) WxDxH: 440x200x45mm (17.32x7.87x1.77in)
• Housing Material: Metal
• Net Weight: 2.83kg (6.24lb)
• Operating Temperature: -10°C - 45°C (14°F -113°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 - 90% (non-condensing)
• Power Requirements: 12VDC 5A
• Colour: Black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 510x328x95mm (20.08x12.91x3.74in)
• Gross Weight: 4.06kg (8.95lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS & REACH, CP65

Package Contents

• HDMI Matrix
• IR Remote Control
• IR Receiver Cable
• Mounting Brackets
• Multi-Country PSU (UK, EU, US & AUS)
• (UK, EU, US & AUS) Mains Cables
• Lindy Manual

Purchasing Information

• No.: 38334
• EAN: 4002888383349
