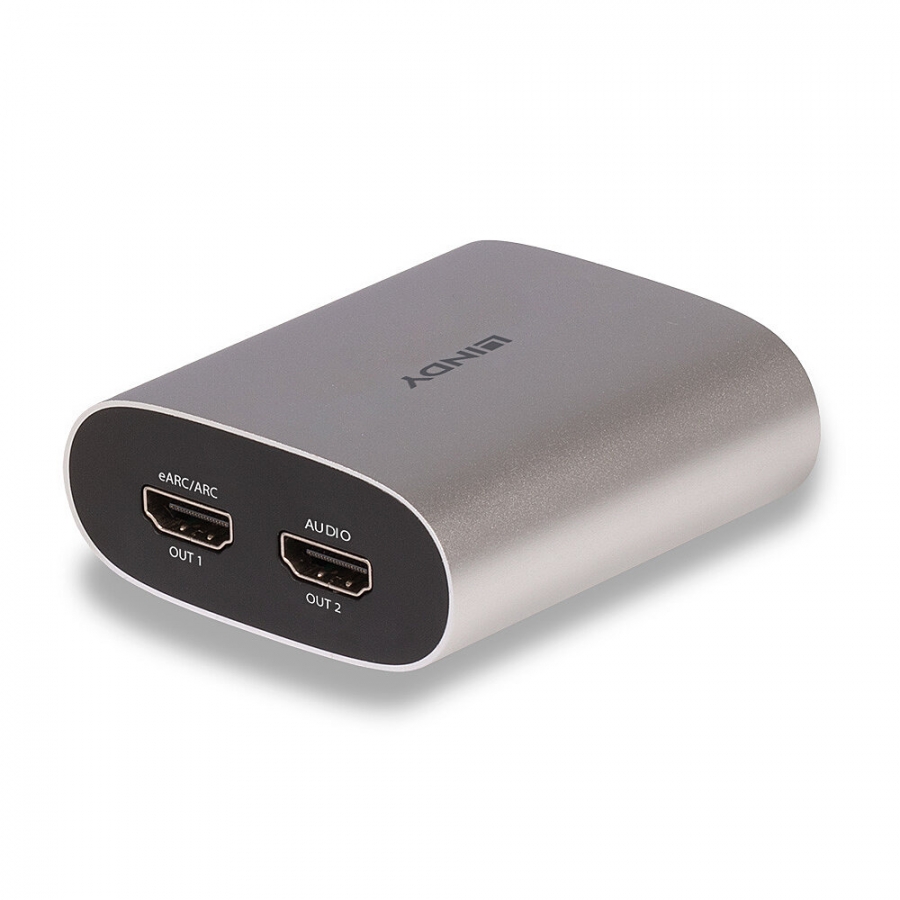

Lindy 4k60 HDMI EARC EXTRACTOR

Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 1.4
• Supported Bandwidth: 18Gbps
• Maximum Input Resolution: 4K @60Hz
• Maximum  Output Resolution:4K @60 Hz
• Chipset: Sil9437CNUC
• HDCP Support: 2.3
• Supported Audio: PCM 2.0, LPCM 5.1/ 7.1 Dolby digital
• Separate Audio Ports: N/A
• Special Features: N/A
• Colour Depth: 8-Bit1 10-Bit, 12-Bit (1080p @60Hz), 8- Bit (4K2K @60Hz YUV4:4:4), 8-Bit, 10-Bit, 12- Bit (4K2K @ 6Hz YCbCR 4:2:2/4:2:0)
• Colour Space:  RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
• HDMI Audio Formats: PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
• HDMI Compliance: HDMI 2.0b
• HDCP Compliance: HHDCP 2.3/ 1.x

Connectors

Input:

• 1 x HDMI Type A (19-pin female)

Output:

• 2 x HDMI Type A ( 19-pin female)

Physical Properties

• Dimensions (approx.) WxDxH:
  • 65mm (2.36in)
  • 70: mm (2.75in)
  • 27: mm (1.06in)
• USB Cable Length: 1500mm (59.05in).
• Housing Material: Aluminum Enclosure
• Net Weight: 0.083kg (0.18lb)
• Operating Temperature: 0°C -40 °C (32°F - 140°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20-90% RH (non-condensing)
• Colour: Sliver

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 65 x 70x 27mm (2.55x 2.75 x 1.06in)
• Gross Weight: 0.1916kg (0.42lb)
• Warranty (Years): 2 years
• Product Compliance: CE, FCC, RoHS & REACH

Package Contents

• 1 x 18Gbps HDMI eARC Extractor
• 1 x USB Cable (USB-A to Micro USB)
• 1 x User Manual

Purchasing Information

• No.: 38368
• EAN: 4002888383684
