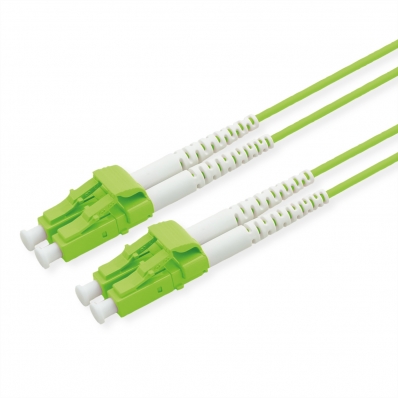

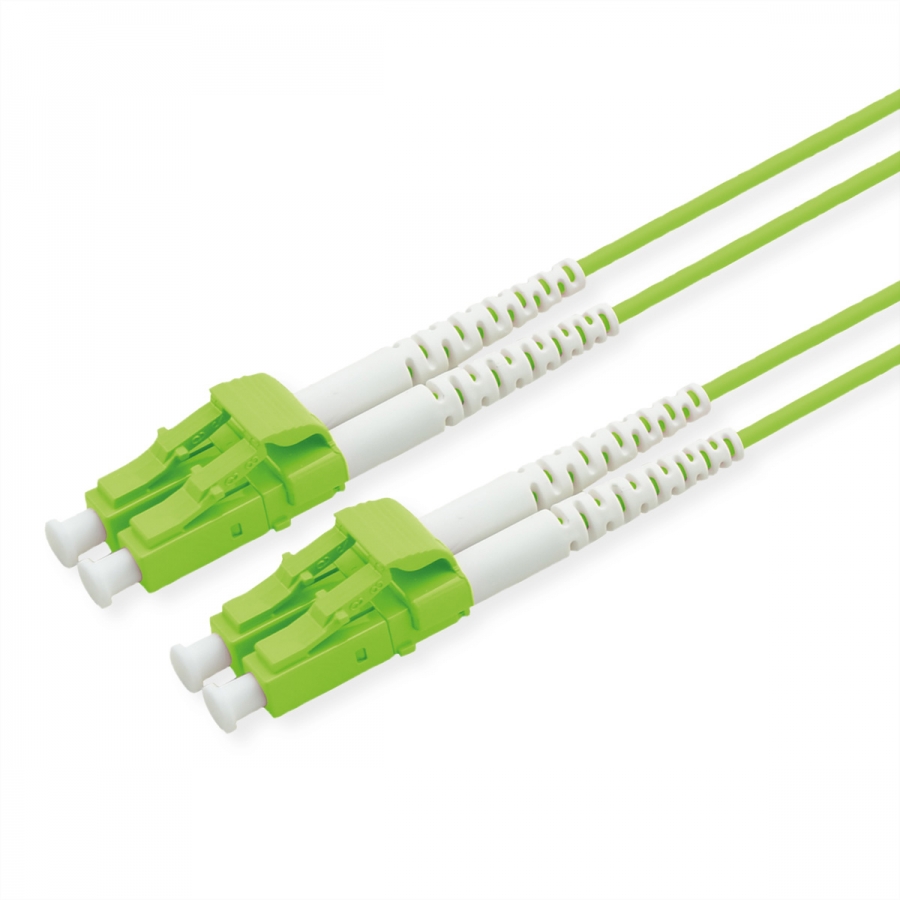

ROLINE Fibre Optic Jumper Cable, 50/125 µm, LC/LC, OM5, Low-Loss Connector, green, 5 m

ROLINE

21.15.9284

New

ROLINE fiber optic patch cables in OM5 quality for high-performance fiber optic cabling in high-density environments.

  • Security for the future! The OM5 fiber connector quality with very low insertion ensures an excellent quality at very high bandwidths of up to 100 Gbit/s Ethernet, Fibre Channel, and OIF applications with up to 150 meters - extends the system cost benefits to ultra long building backbones and medium length campus backbones.
  • Material and clothing in ROLINE quality
  • Duplex cables with fiber type Multimode 50/125µm, OM5
  • The cable assembled with "low-loss" connectors achieve very good values for insertion loss and reflection. In comparison:
- Typical attenuation of a standard LC connector: 0.5 dB
- Typical attenuation of a low-loss LC connector: 0.15 dB
  • Attenuation 850nm ≤ 2.3 dB/km, 953nm ≤ 1.7 dB/km, 1300nm ≤ 0.6 dB/km
  • IL (Insertion Loss) < 0.15dB
  • RL (Return Loss) >= 30dB
  • The cable assembled with "low-loss" connectors achieve very good values for insertion loss and reflection. Insertion loss of less than 0.15dB
  • Outer diameter: 2.0mm
  • UPC polish
  • Modal Bandwidth: 4700 MHz-km (this bandwidth is based on application-specific implementation of the EMBC requirements)


ManufacturerROLINE
Product groupFibre optic cable
Product typeFibre Optic Jumper Cables OM5
Colourgreen
Length5 m
Quantity of fibre2
Conductor compositionCompact conductor
Cable typeDuplex Cable
External cableno
Fibre section50/125µm OM5
Connection portsLC / LC
Side 1 Connector TypeLC
Side 2 Connector TypeLC
Colour (Cable)Lime Green
Aramid strain reliefyes
External cable diameter2 mm
Mantle of external cableLS0H
Cable LSOHyes
Height of packaging (single piece)10 mm
Width of packaging (single piece)150 mm
Depth of packaging (single piece)150 mm
Package weight (single piece)0.1 kg
Current catalog editionC24-01.64

9/125 62.5/125 50/124 MTP
